Home > Products > FREQUENCY CONVERTER > Static Frequency Converter AC60-31450

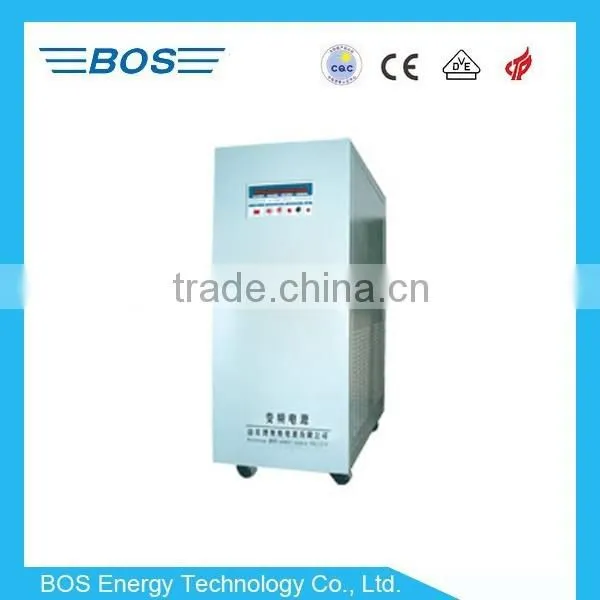

Static Frequency Converter AC60-31450
- 500 Set / Sets per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | BOS | Model Number: | AC60-31450 |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 1160*520*1370 |
Weight: | 100KG | Input Voltage: | 380V±10% | Output Voltage: | low-grade:0-150V high-grade:0 - 300 V |
Type: | Other, AC/AC converter | Output Frequency: | 50Hz/60Hz/45-65Hz | Output Current: | 188A-375A |
Product Description
Specifications
Static frequency converter with 16 bit microprocessors, the intelligent control and easy operation,output isolatedStatic Frequency Converter AC60-31450
1.Have a high voltage, over current and short-circuit and overheat warning device
2.16 bit microprocessors, the intelligent control and easy operation
3.Low distortion interference,input and output are completely isolated , safe and reliable
4.Unique transient waveforms value control and low distortion, high precision control
5.Dynamic quick,when load changgees in 0 - 100% ,stationary response time <0.1S
6.Provide world standard grid voltage,frequency,simulation testing all kinds of
electrical products
7.With no radiation,small harmonic ingredients and special treatment,no distracting
8.The efficient up to above 85% wide applicable load,can be perceptual capacitive resistive load
9.Import original german siemens IGBT high frequency inverter and deck mechanism
10. Output voltage:low-grade:0-150 V,high grade: 0-300V adjustable continuously
11.A machine has more function,surface and source are one:with the nearest 0.5 level
output voltage, current and frequency and power the power factor watch.
Model | 11005 | 11010 | 11030 | 11050 | 31100 | 31150 | 31200 | 313000 | 31450 | 311000 | |
Capacity(VA) | 500 | 1K | 3K | 5K | 10K | 15K | 20K | 30K | 45K | 100K | |
Output limit currency | LOW(A) | 4.2 | 8.4 | 24 | 42 | 84 | 126 | 168 | 250 | 375 | 840 |
| HIGH(A) | 2.1 | 4.2 | 12 | 21 | 42 | 63 | 84 | 125 | 188 | 420 |
Circuit model | IGBT/SPWM pulse width adjustment mode | ||||||||||
Output frequency | 50Hz/60Hz 45-65Hz | ||||||||||
Load stability | ≤±1% | ||||||||||
frequency stability | fixed-frequency≤±0.01%,frequency modulation≤±0.1% | ||||||||||
Input voltage | 220V±10% | 380V±10% | |||||||||
Phase | single phase | three phase four wire | |||||||||
Wave distortion | ≤3% | ||||||||||
Output voltage | low-grade:0-150V continuous-tuning; high-grade:0 - 300 V continuous-tuning | ||||||||||
Reaction time | ≤2mS | ||||||||||
DPI ( dots per inch ) | frequency meter | 0.1Hz | |||||||||
| Voltage meter | 0.1V | |||||||||
| Current meter | 0. 1A | |||||||||
| Power meter | 0.1W | |||||||||
Ammeter display | Frequency, voltage, current, power or PF 4 number display | ||||||||||
Protection function | over voltage, over current, over temperature, over load, short circuit, and automatic alarm | ||||||||||
Insulation reactance | 500Vdc 20MΩ | ||||||||||
Pressure endurance insulation | 1500Vac/5mA/1min | ||||||||||
Cooling model | Compulsive fan cooling | ||||||||||
Working temperature | -10℃-45℃ | ||||||||||
Relative humidity | 0-90%(No condensing) | ||||||||||
Altitude | 1500meters |
