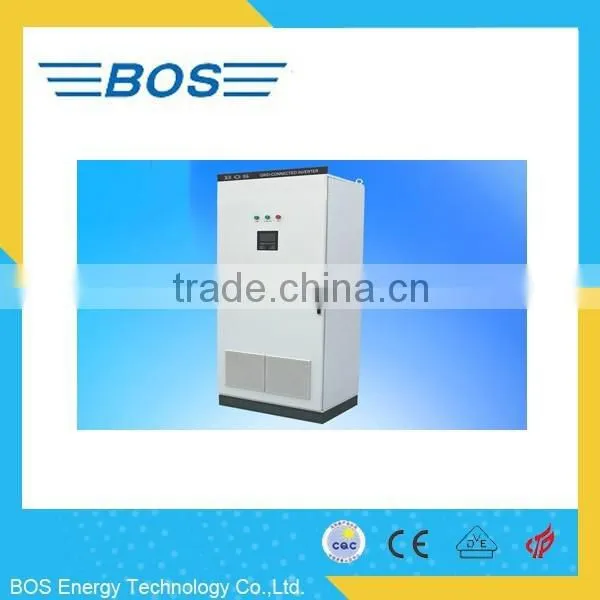

100kw Wind Grid Connected Inverter
- 1000 Set / Sets per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | BOS | Model Number: | BNWG |
Type: | Plant | Electricity Generator Type: | Wind Power | Output Voltage (V): | 400 |
Product Description
100kw Wind Grid Connected Inverter
1. Using IPM from Mitsubishi company as the power components.
2. Using American ATEMEL company microprocessor as figure controller.
3. Perfect protection and warning functions.
4. MPPT (Maximum Power Point Tracking )technology.
5. Circuit frame compact,Max. Efficiency≥94%
6. Outdoor stainless steel casing, entire sealed installation
7. Input voltage range wide,MAX. can be 1150VDC
8. Communication,multi communication interface can be selected
9.Pure sine wave output,automatically synchronized with the grid tracking,power factor close to 1, Current low harmonic content, non-polluting power grid, no impact
10. Inverter current closed-loop control, power controllable
11. Big-screen English LCD, perfect display, interface-friendly.
Wind turbine grid-on system specialized single-phase inverter
Type | BNWG1KD | BNWG2KD | BNWG3KD | BNWG4KD | BNWG5KD | |
Rated capacity | 1 kW | 2 kW | 3 kW | 4 kW | 5 kW | |
Rated AC output power | 1 kW | 2 kW | 3 kW | 4 kW | 5 kW | |
Max. AC output power | 1.1 kW | 2.2 kW | 3.3 kW | 4.4 kW | 5.5kW | |
Insulate mode | Low frequency transformer | |||||
Recommended wind turbine power | 1 kW | 2 kW | 3 kW | 4 kW | 5 kW | |
Max. DC open circuit voltage | 400Vdc | 780Vdc | ||||
MPPT range | 100~400Vdc | 180~780Vdc | ||||
Max. DC input current | 10A | 20A | 30A | 20A | 25A | |
Max. efficiency | 94% | |||||
Europe efficiency | 92% | |||||
Operating range utility voltage (single phase) | 180~265Vac | |||||
Operating range utility frequency | 47.5Hz-51.5Hz | |||||
Total Harmonic Distortion(THD) | <3% | |||||
Power factor | ≥0.99 | |||||
Communication Interfaces | RS485/RS232 | |||||
Operation surroundings Temperature | -25~+55°C | |||||
Operation surroundings Humidity | 0~95%, No condensing | |||||
Protection | Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat. | |||||
Cooling mode | Forced cooling | |||||
Waterproof and Dustproof Class | IP20 | |||||
Dimension(L*W*Hmm) | 360*230*560 | 430*303*656 | 580*515*1250 | |||
Weight(kg) | 18 | 25 | 45 | 55 | 75 |
Wind turbine grid-on system specialized three-phase inverter
Type | BNWG10KS | BNWG20KS | BNWG30KS | BNWG50KS | BNWG100KS | ||
Rated capacity | 10 kW | 20 kW | 30 kW | 50kW | 100 kW | ||
Rated AC output power | 10kW | 20kW | 30kW | 50kW | 100kW | ||
Max. AC output power | 11 kW | 22 kW | 33 kW | 55 kW | 110 kW | ||
Insulate mode | Low frequency transformer | ||||||
Recommended wind turbine power | 5 kW | 10 kW | 20 kW | 33 kW | 66.5 kW | ||
Max. DC open circuit voltage | 780Vdc | ||||||
MPPT range | 150~780Vdc | 200~780Vdc | 450~780Vdc | ||||
Max. DC input current | 73A | 100A | 150A | 110A | 250A | ||
Max. efficiency | 94% | ||||||
Europe efficiency | 92% | ||||||
Operating range utility voltage (single phase) | 310~450Vac | ||||||
Operating range utility frequency | 47.5Hz-51.5Hz | ||||||
Total Harmonic Distortion(THD) | <3% | ||||||
Power factor | ≥0.99 | ||||||
Communication Interfaces | RS485/RS232 | ||||||
Operation surroundings Temperature | -25~+55°C | ||||||
Operation surroundings Humidity | 0~95%, No condensing | ||||||
Protection | Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat. | ||||||
Cooling mode | Forced cooling | ||||||
Noisy | <50dB | ||||||
Waterproof and Dustproof Class | IP20 | ||||||
Dimension(L*W*Hmm) | 580*515*1250 | 650*610*1560 | 800*600*2060 | 1000*800*2060 | |||
Weight(kg) | 150 | 300 | 400 | 600 | 800 |
