2014 new style High speed cnc machining center for sale BVMC-1060

Specifications

cnc machining center for saleBVMC-1060
a)X/Y/Z axis travel:600*500*500mm
b)Table to spindle nose:530MM
c)Positioning Accuracy

2014 new style High cnc machining center for sale BVMC-1060



a) DESCRIPTION

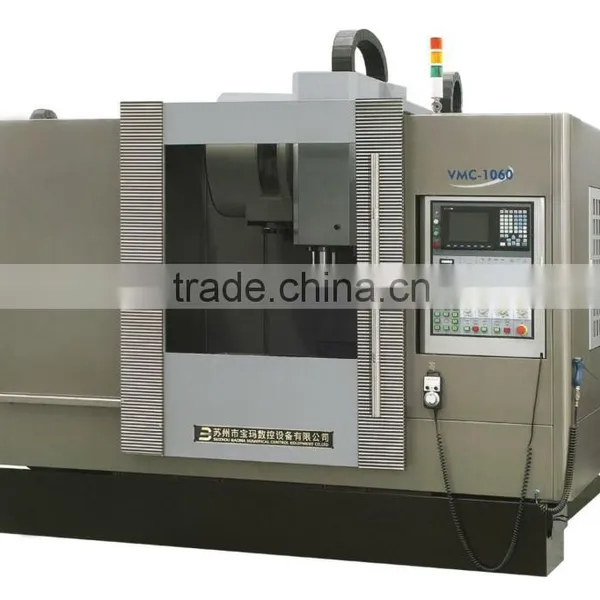

CNC Vertical Machining Center [BVMC-1060]

1) Casting is made by advanced nano Meehanite. Such material is very stable; It can make sure there is no distortion after long term use. Main structure adopts ANSYS limited unit software analysis, to reach highest and best rigid structure design.

2) We design strong structure to build column, avoid and reduce distortion while cutting.

3) Nut integrated design
Nut block for screw and main machine body are built together for every axis, with this design, machine will get better rigidity, and won't lost precision while heavy cutting and acceleration movement impact

4) Adopt three slide blocks for single axis
Adopt three slide blocks for single axis will enhance load capacity around 30%, with this method will improve the load capacity.

5) Optimized structure of heavy rail linear guide
Comparing with ball screw guide, its lead capacity and damping properties has been improved 30% and 15% respectively: Comparing with hard track guide, dynamic motion function has been improved 300%, at the same condition, the machining efficiency will be 2%-15% better, life of machine will be 3-6 times longer, so without shutting the machine down to repair, it will save 5-20% precious time

6) High accuracy, high inflexible principal axis
Belt transmission type principal axis can provide biggest RPM8000-12000. Special designed principal axis bear configuration, show us the outstanding rigidity of principal head.
Precious ball screw assembly is adopted for X, Y and Z axis, such screw is pre-processed to ensure best precision and minimize the error.

7) Disc style ATC system

8). Advantage of system
1. MITSHBISHI choose 64bite high speed CPU and PLC as the heart if control system, not only improve data processing speed, but also raise machining efficiency obviously.
2. Most advanced hardware is adopted, it is advantage to enhance the ability of high speed processing and the ability of compensation,
3. System support various language and can be used worldwide.
4. Principal axis is connected by parallel bus.
Servo system
Swift response and stable location loop control system will be most beneficial while machining process, it also realize stable control of speed up and speed down.
1. Adoption of the medium and small model servo motor and high-resolution decoder
2. Enhance the rigidity of machine tool
3. Special characteristics in stable control of speeding up and down
4. Reduce parts processing time and improve the machining precision of parts.



ravel/space	X/Y/Z axis travel	mm	1000/600/600	Standard accessories : 1.        Electricity box heat exchanger 2.        Auto lubricating unit 3.        Fully closed sheet metal cover for prevent chip 4.        Alarming lamp with three color 5.        Foundation block and supporting 6.        Operation & maintenance manual 7.        Composite fixing plate 8.        Flat clamp 9.        Tool holder and bolt each one Optional accessories: 1.        Disc ATC system 2.        Umbrella ATC system 3.        Oil cooler for spindle 4.        Water gun for sluicing chips from rear of the machine 5.        Auto chip conveyor
	Table upper surface to spindle nose end face	mm	120-720
	Table to spindle nose	mm	670
Accuracy	Positioning	mm	± 0.005
	Repeatability	mm	± 0.003
Table	Table dimension	mm	1200*620
	Max. load on table	Kg	1000
	Power(X Y Z)	mm	2.5,2.5,2.5(Funac) 2.0,2.0,2.0(Mitsubishi)
	T shape groove	mm	18T*P130*5
Spindle	Spindle speed	rpm	8000
	Spindle bore taper		Taper No.40 (Taper No.50 Optional)
Traverse speed	Rapid speed	mm/min	24000
	Cutting speed	mm/min	12000
Auto changing tool system	Tool holder model		BT40(BT50 Optional)
	Tool capacity	pcs	20/24 (ATC Armless or ATC ARM)
Spindle motor	Spindle power (30min/successive)	KW	11/15(Funac) 7.5/11(Mitsubishi)
power	electricity	KVA	25
	Air power	Mpa/L/min	0.6/260
Outer size and weight	Machine height	mm	3100
	Floor space	mm	2900*2700
	Net weight	Kg	8500
