Specifications
MEIQI Flexible Rubber JointGood compensation
Good shock absorption
Nice noise reduction effect
MEIQI RFJS double sphere flexible rubber joint
Flexible rubber joint is also know as flexible rubber expansion joint ,rubber pipe soft joint ,high-pressure rubber joint ,pipe shock absorber,compensator etc.
Application:
Water supply system ; Heating ventilation air condition ; Shipbuilding ; Fire pretection ; Compressor ; Pharmacy ;
Fan and other piping connection etc.

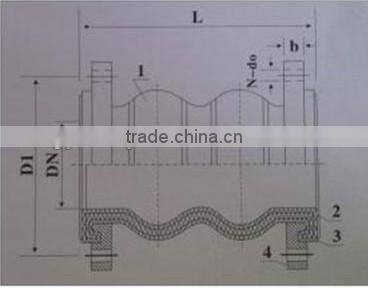

Product structure and materials :
1 | Body | Polar rubber |
2 | Inside lining | Nylon fabric |
3 | Frame | Stainless steel wire |
4 | Flange / Union | Low-carbon steel / tin |
Main specification:
Class Item | 0.25MPa | 0.6MPa | 1.0MPa | 1.6MPa | 2.5MPa |
Diameterp (mm) | 1200-2800 | 350-1200 | 32-600 | 32-300 | 32-150 |
Flange (MPa(kg·f/cm2) | 0.6(6) | 0.6(6) | 1.0(10) | 1.6(16) | 2.5(25) |
Wroking pressure (MPa(kg·f/cm2) | 0.25(2.5) | 0.6(6) | 1.0(10) | 1.6(16) | 2.5(25) |
Bursting pressure (MPa(kg·f/cm2) | 0.75(7.5) | 1.8(1.8) | 3.0(30) | 4.8(48) | 7.5(75) |
Vacuum KPa(mmHg) | 19.9(150) | 33.2(250) | 53.5(400) | 86.7(650) | 100(750) |
Main parameter:
| Nominal Diameter | Length | Flange thickness | Bolt Qty | Diameter of bolt hole | Central diameter of bolt hole | Axial displacement | Horizontal displacement | Deflection angular | |
| mm | mm | b mm | n | d mm | D mm | extension | compression | mm | (α1+α2)° |
| 32 | 95 | 14 | 4 | 18 | 100 | 6 kgf/cm2 | 91kgf/cm | 9 | 15° |
| 40 | 95 | 16 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
| 50 | 105 | 16 | 4 | 18 | 125 | 7 | 11 | 10 | 15° |
| 65 | 115 | 18 | 4 | 18 | 145 | 7 | 12 | 11 | 15° |
| 80 | 135 | 18 | 8 | 18 | 160 | 8 | 13 | 12 | 15° |
| 100 | 150 | 20 | 8 | 18 | 180 | 10 | 13 | 13 | 15° |
| 125 | 165 | 22 | 8 | 18 | 210 | 12 | 14 | 13 | 15° |
| 150 | 180 | 22 | 8 | 22 | 240 | 12 | 22 | 14 | 15° |
| 200 | 200 | 22 | 8 | 22 | 295 | 16 | 22 | 22 | 15° |
MORE OTHER SIZE for sale !!!

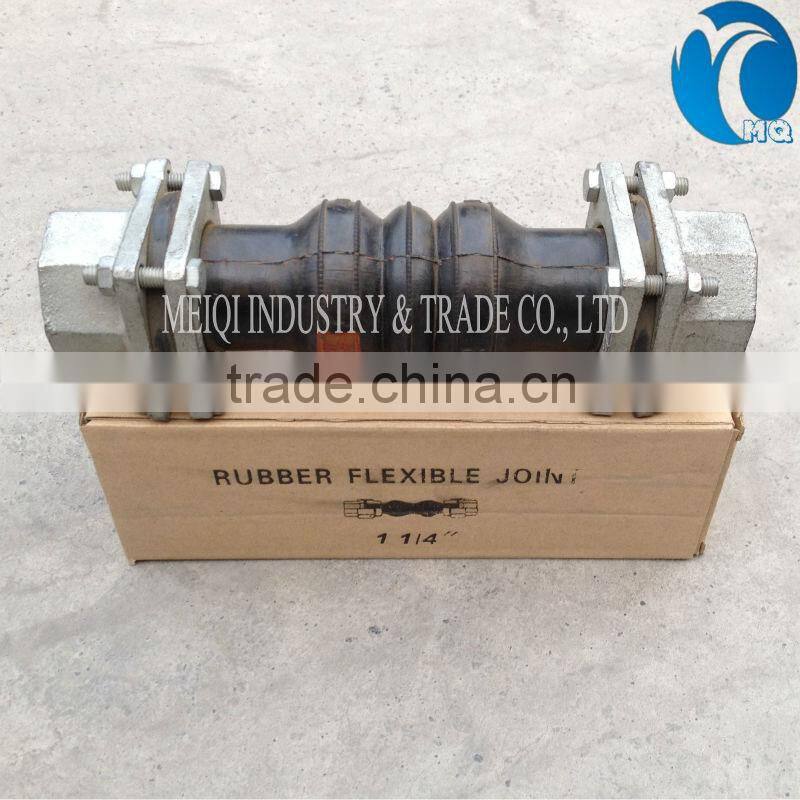

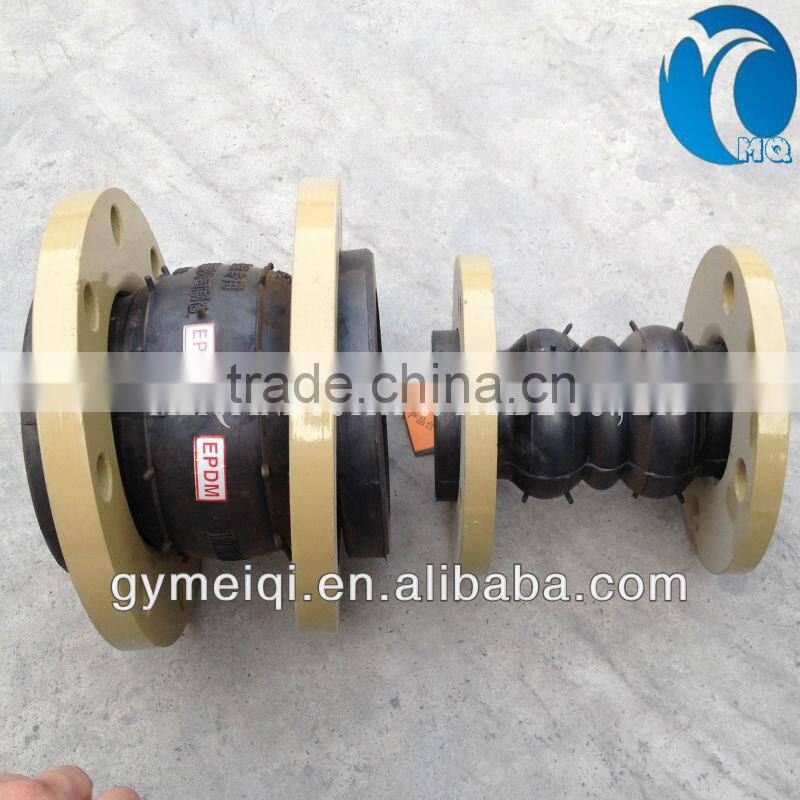

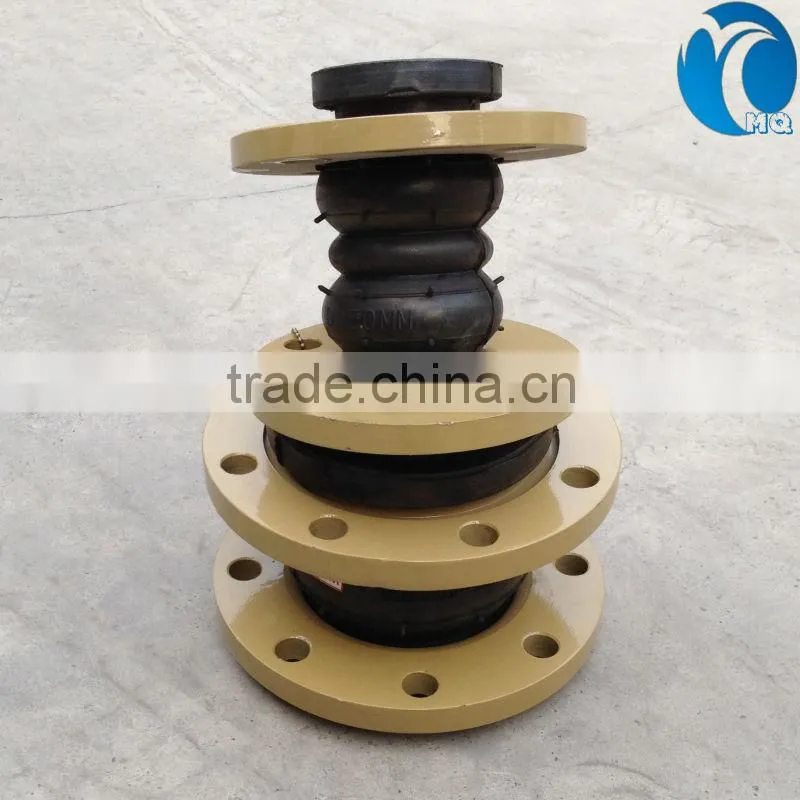

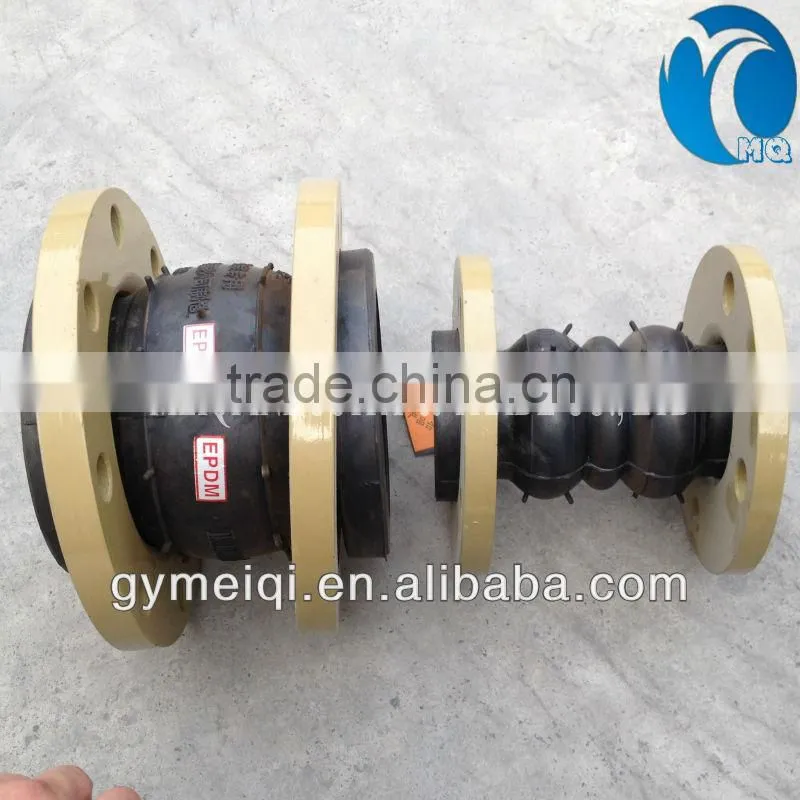

Products picture :

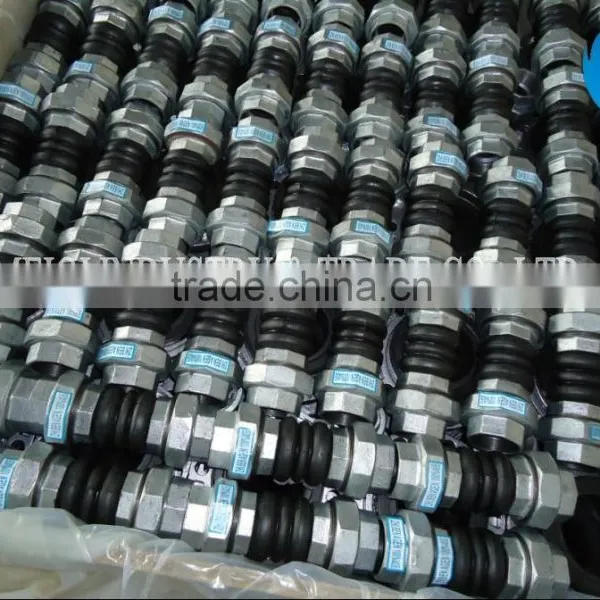

Packaging :
Carton or according to customer's requirement.
Shipping :
Within 1week after receivie customer'official order.
1. Would based on customer's requests, supply the most suitable type.
2. Always do best effort for satisfing customer's requests.
3. Fastest Delivery. Usually can shipping goods within 15 days after get the official order.
4. Service customer even customer had got our goods, always reply customer's requirements at earliest!
5. Price most competitive! Insure the confirmed QUALITY!!!
Any question or requirements, welcome contact us at any time~~ :)
MEIQI Industry & Trade Co.,Ltd. Is a professional manufacturer and exporter company for kinds of water treatment materials ,water supply products ,chemical materials and other raw materials for industry.
Our flexible rubber joint sales in China mainland more than 10years.Now we are committed to export our product all over the world . Any question about our products please contact us.
