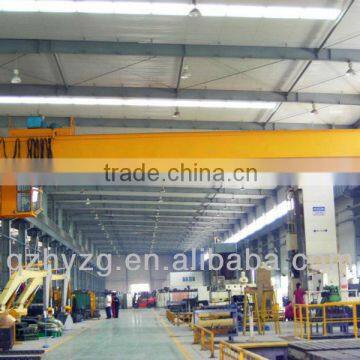

single girder overhead bridge crane

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Plants, warehouses,material stocks
Rated Loading Capacity	30ton	Rated Lifting Moment	0.25~20T
Max. Lifting Load	1-20t	Max. Lifting Height	30m
Span	7.5~31.5m	Place of Origin	China
Brand Name	Haiyu	Model Number	LD/LDA bridge crane
Certification	ISO9001 ISO14001 BV	Warranty	24 years
After-sales Service Provided	Engineers available to service machinery overseas

Single girder crane have compact construction and allowed maximum utilization of room height.Capacity: 1000-16000kg;Span: 5 -25m

Lifting capacity (T)	1,2,3,5,10							16,20
Span(M)	7.5-31.5M
Crane travelling mechanism	Travelling speed(m/min)		20	30	45	60	75	20	30	45		60	75
	Reducer ratio		58.78	39.38	26.36	19.37	15.88	58.78	39.38	26.36		19.37	15.88
	Motor	Model	ZDY21-4			ZDY21-4		ZDY122-4	ZDY131S-4		ZDY112L1-4
		Power(kw)	2×0.8			2×1.5		1.5×2	2.2×2		2.2×2
		Rotation (m/min)	1380					1380
Lifting mechanism (electric hoist)&electric hoist travelling mechanism	Electric hoist model		CD1/MD1					MD1/HC
	Lifting speed (m/min)		8,8/0.8 7,7/0.7					3.5 3.5/0.35
	Lifting height (m)		6 ,9 ,12, 18, 24, 30					12,18,24,30
	Travelling speed (m/min)		20(30)					20(30)
	Motor		Taper Squirrel-cage type					Taper Squirrel-cage type
Work duty	A3-A5
