Home > Products > MZ/Submerged MMA > TIG welding equipment TIG- 250

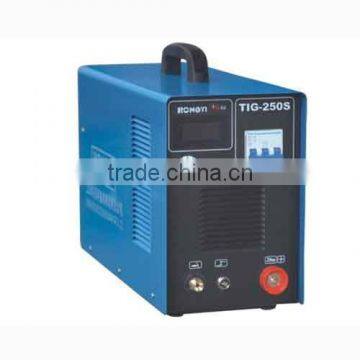

TIG welding equipment TIG- 250
- 3000 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
Brand Name | RONGYI | Model Number | TIG-250 | |
Arc Current | 250A | Pulse Frequency | 10-100kHz | |
Pilot Arc Current | 5A | Rated Duty Cycle | 60% | |
Dimensions | 500*210*365 mm | Usage | weld iron, steel, ect |
Product Description
Specifications
IGBT inverter technology,Wide working voltage range,DC pulse output,TIG/MMA functions,Pulse TIG welding equipment TIG-250Features of Pulse TIG welding equipment TIG-250:
1. IGBT inverter technology and precision constant current feedback control technology, soft switch, high working efficiency;
2. Wide working voltage range, strong adaptability to electricity power grid fluctuation, excellent arc striking performance;
3. Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection,;
4. Applicable for TIG and MMA welder;
5. Suitable for metal sheets: stainless steel, carbon steel, alloy steel, titanium, etc;
6. Complete accessories: welding torch, welding cable, earth clamp, welding holder.
Parameters of Pulse TIG welding equipment TIG-250:
Model Spec. | TIG-250S |
Power supply voltage | AC 380±10% V / 50~60 Hz |
Power supply capacity | 6.3 kVA |
Duty cycle | 60% |
Rated output current | 250 A |
No-load voltage | DC 55 V |
Output current range | 10-250 A |
Post-flow time | 0.5-15 s |
Cosφ (η) | 0.93 |
Protection grade | IP 21 |
Weight | 18.6 kg |
Dimensions (mm) | 500*210*365 |
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate
on the device.
