Home > Products > LED series > LED203-601, 24pcs*10W RGBW 4in1 LED PAR Can

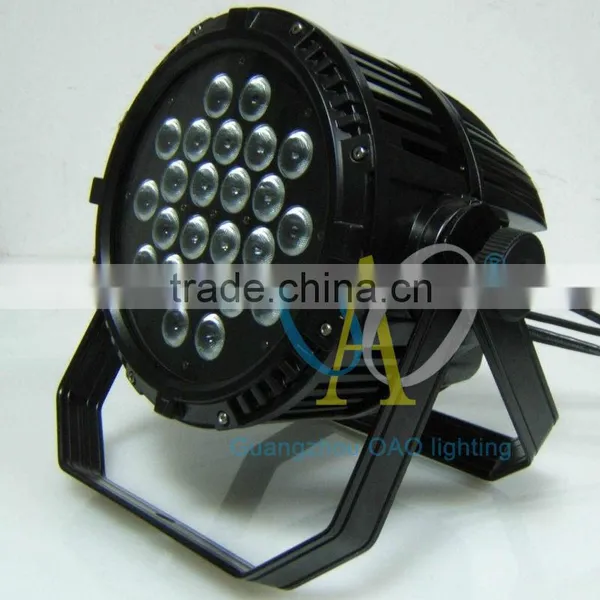

LED203-601, 24pcs*10W RGBW 4in1 LED PAR Can
- 500 Piece / Pieces per Month
- guangzhou
- Credit Card PayPal
Product Details
LED Light Source: | 24*10W ,RGBW 4in1 | Input Voltage(V): | 90-254V AC | Lamp Power(W): | 250 |
Working Temperature(℃): | -20, +45 | Working Lifetime(Hour): | 100000 | IP Rating: | Other, IP65 |
Certification: | CE, EMC, LVD | Place of Origin: | China | Brand Name: | OAO lighting, OAO lighting |
Model Number: | LED203-601 | Emitting Color: | RGBW mixture colors |
Product Description
Video link : /v_show/id_XNDY2MzAxMzA0.html
Model | LED302-302 (indoor) | LED301-6 (indoor) | LED203-601 (outdoor) |
Brand | OAO lighting | OAO lighting | OAO lighting |
Housing Material | Aluminum (short or long ) | Die-casting Aluminum Alloy | Die-casting Aluminum Alloy |
Housing Color | Black / Silver White | Black / White | Black / White |
Aperture Cover | PMMA | PMMA | PMMA |
Operating voltage | 90-254V AC | 90-254V AC | 90-254V AC |
Power | Switch Power Supply | Switch Power Supply | Switch Power Supply |
Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
DMX Channel | 8CH/4CH | 8CH/4CH | 8CH/4CH |
Control panel | LED Digital 4 characters alphanumeric display menu | LED Digital 4 characters alphanumeric display menu | LED Digital 4 characters alphanumeric display menu |
Connector | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) |
NO.of LED | 24*10W LEDS (RGBW 4in1) | 24*10W LEDS (RGBW 4in1) | 24*10W LEDS (RGBW 4in1) |
LED Life Time | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours |
Beam Angle | 40° (8° / 15° / 25°/40° /45° for optional) | 40° (8° / 15° / 25°/40° /45° for optional) | 40° (8° / 15° / 25°/40° /45° for optional) |
Power Consumption | 250W | 250W | 250W |
Light Projecting Distance | 80-200M | 80-200M | 80-200M |
IP Rating | indoor, IP 20 | indoor, IP 20 | Outdoor, Waterproof, IP 65 |
Operating Temperature | -20ºC+45ºC | -20ºC+45ºC | -20ºC+45ºC |
Dimensions | 260*260*390 (mm) | 260*260*390 (mm) | 320 x 300 x 310 (mm) |
Weight | 4.0 (kg) | 5.2 (kg) | 9.0(kg) |
Packing Dimension | 280*280*500(mm) | 280*280*500(mm) | 345 x 316 x 333 (mm) |
Gross Weight | 5.0 (Kg) | 6.0 (Kg) | 9.6 (Kg) |
8CH Mode DMX Value | CH 1 — General dimmer (1-255, from dart to light) | ||
CH 2— Red | |||
CH 3 — Green | |||
CH 4—Blue | |||
CH 5— White | |||
CH 6 —Strobe | |||
CH 7 — Strobe & Color change/ color gradual change open | |||
CH 8 — Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) | |||
4CH Mode DMX Value | CH 1 — Red | ||
CH 2— Green | |||
CH 3 — Blue | |||
CH 4— White |
PICTURES:
Packing method : |
|
Shipping : |
|
Warranty : |
|
After sells service: | 1. if there is any problem with the products, please send us the picture or video to let us know what is the problem with the product ; 2. Return products must be the problem of product itself , not wrong operation by users. 3. Refund would be workable after the return product was received. 4. Buyers are responsible for all return shipping charge. |
Note :
| If you decide to cooperate with our company, Please send us the below correct message, it is very import for the fast and safe delivery:
|
Product customized : | If you didn’t find the product what you need on our websites, please tell us your product requirements, we can provide it to you or customized it for you, because maybe not every product was shown on our websites, and our company “Guangzhou OAO lighting Co., Ltd ” is a manufactory factory, it is admitted legal and effective by Chinese government , please don’t worry ! |
All in all : |
|
Price items : |
|
Payment method : |
|
