35 seats natural gas Bus for sale

Overall Parameter

Over all length(mm)

8240

Over all width(mm)

2420

Over all height(mm)

3320

Wheel base(mm)

3800

Front/rear overhang (mm)

1950/2470

Approach/departure angle(°)

10/9

Front/rear thread(mm)

1950/1800

Gross weight(kg)

10150

Rated passenger

24-35

Top speed(km/h)

≤100

Engine Parameter

Model

YC4G180N-40

Manufacture

YUCHAI

Position /Fuel

REAR / LNG

Type

 Inline /4 cylinder,water cooling.4 strokes

Max. power(ps/r/min)

180/2300

Max torque (N.m/ r/min)

650/1300~1700

Displacement (L)

5.202

Emission standard

Euro IV

Chassis Parameter

Chassis type/manufacture

Dongfeng xianglv EQ6770RN4AC

Transmission

Hachiu CA6-85,2 flexible shaft remote control

clutch

single dry diaphragm springφ350, Hydraulic long-distance manipulation,air power

Front axle

Dongfeng Dana, 4200kg,drum brake

Drive axle

Dongfeng Dana, 8000kg, velocity ratio 4.875 ,drum brake

suspension

 Front 9/rear 11

steering

Power-assisted steering,adjustable steering wheel,diameterφ500

brake

Dual-circuit air brake with ECE standard,energy-stored spring parking brake.

cylinder

330L 1pc

Tyre

7.50R20-14PR   6 Pairs ( Triangle )

Battery/generator

150Ah×2/110A 28V

other

Copper tank, ABS, self-adjusting arm, gas control system

Body

Body structure

Semi-monocoque

Interior Trim

Molding softening interior, top.side board is PVC board,softening instrument sets,Rear Guard for driver   ,Rear Guard for passenger ,with soften forming .

Doors & Door pump

Anterior single out, electronically controlled pneumatic door pump, remote control door lock, the safety door

Windshield,Side windows

Panoramic laminated front windshield,toughened windshield / side windows for bonding glass

Rear view system

rabbit ears rear view mirror with defroster

Defrost system

plumbing defrost

Audiovisual systems

MP4,book light with eight speakers,17 -inch manual LCD TV

Lamps

Front & Rear combination lamp,long dome light,duck with reading light.aisle light.

Wiper

Opposite scrap wiper with syringe

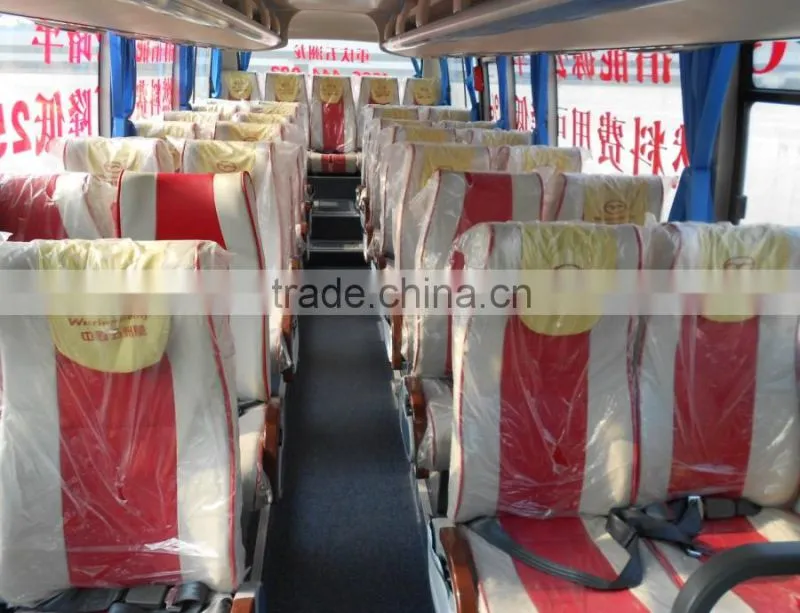

Seats

Total 33+1+1 seats.,coach seats, L/R,F/R adjustable,flip-double chair at the emergency exit,adjustable driver seat

Floor leather

wear-resistent floor leather

Paint

 solid color paint

Air condition

Non-independent overhead air conditioning, refrigeration output:18000kcal/h

Bin gate

Flip aluminum baggage doors

Handrail

Driver’s backboard with tour guides backrest,passenger door backboard,fired softening

Others

Electronic clock, Folding side curtains , front windshield , the driver window sunshade,  Aluminum alloy wheel covers ( semi- cover ),  (4Kg×1)Fire extinguisher,  1pc warning triangle, 4pcs security hammer with alarm function,  Color reversing monitor,bus monitor(2 cameras),  Driving recorder with GPS function, Engine compartment automatic fire extinguisher with alarm function,  The 920B type with ventilator skylight.
