Skid Resistance/Antiskid Pattern Conveyor Belt/Rubber Belt

Skid Resistance/Antiskid Pattern Conveyor Belt/Rubber Belt

Description :

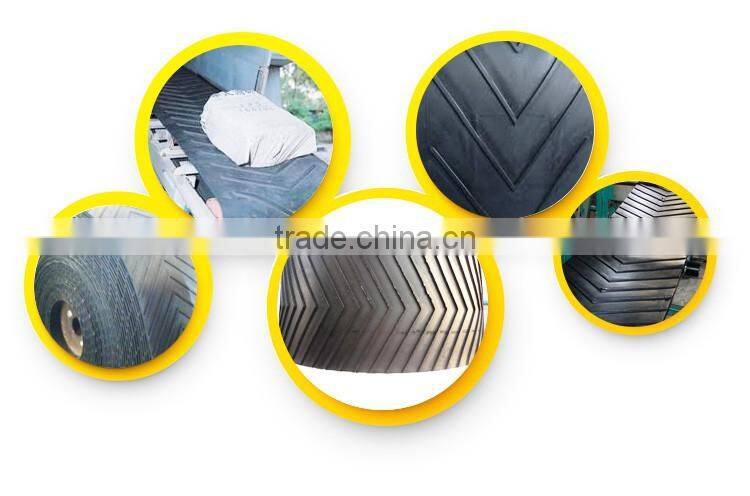

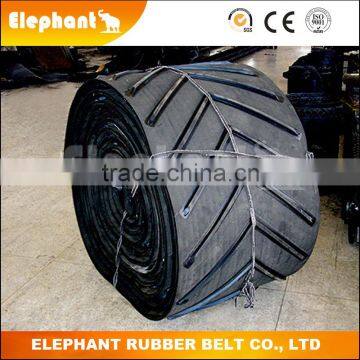

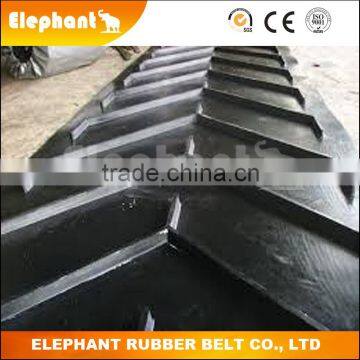

We produce top-quality Chevron rubber conveyor belts for the efficient transport of aggregate, fertilizer, grains, sand, bark and wood.

Our belt widths range between 600 mm and 1 000 mm, and are available with cleat heights from 5 and 20 mm.

All Elephant Chevron rubber conveyor belts can be cut and spliced according to your specifications, and come with a range of top and bottom cover compounds that protect your conveyor belt investment from fire, oil, abrasion and heat.

Features :

• Greater Belt Flexibility
• Improved Troughability
• Better Formability of the Profiles
• Small Pulley Diameters are possible
• Low Dynamic Stress when negotiating around pulleys

Specifications :

Cleat design and type		Profile width spacing between profiles and height in mm	Belt width min. mm	*Pulley Ø min. mm
	501/245/13 502/310/10	245, 150, 13 310, 200, 10	300 350	250 250
	503/390/13 504/550/15	390, 250, 13 550, 300, 15	450 600	250 250
	514/450/30 515/600/30 516/720/30	450, 500, 30 600, 330, 30 720, 520, 30	500 650 750	400 400 400
