Rubber Belt with Profile Conveyor Belt
Usage
It is applicable to transfer the granularity with the size under 50mm, such as
coal, detritus, grit, foodstuff,and ther soft packaging things.
The inclination can be 30 degrees at the most.
Due to different areas of use and operational requirements, we offer a comprehensive portfolio of open and closed profile designs.
Features
The circle pattern has a large coefficient in friction,
and it can increase the resistance during the movement,
and also it can prevent the slip down of materials.
The tip angle of the V pattern type is on the central line
which makes the carried materials can be collected to the center.
Cleat design and type | Profile width | Belt width | Pulley Ø |
spacing between profiles and height in mm | min. mm | min. mm | |
| 245, 150, 13 | 300 | 250 |
310, 200, 10 | 350 | 250 | |
| 390, 250, 13 | 450 | 250 |
550, 300, 15 | 600 | 250 | |
| 450, 500, 30 | 500 | 400 |
600, 330, 30 | 650 | 400 | |
720, 520, 30 | 750 | 400 |
Fabric Layer Conveyor Belt Stucture
General Specification
Belt Width | 300-2000 mm |
Fabric Material | NN, CC, EE, EP |
Plies of Fabric | 1-10 |
Belt Thickness | 5-60 mm |
Top Rubber Cover Thickness | 1.5-30 mm |
Bottom Rubber Cover Thickness | 0-30 mm |
Tensile Strength of Single ply of Fabric | 100-1000 N/mm |
Tensile Strength of Rubber Cover | 5~25 MPa |
Color | Black |
Standard | ISO, RMA, DIN, AS, JIS |

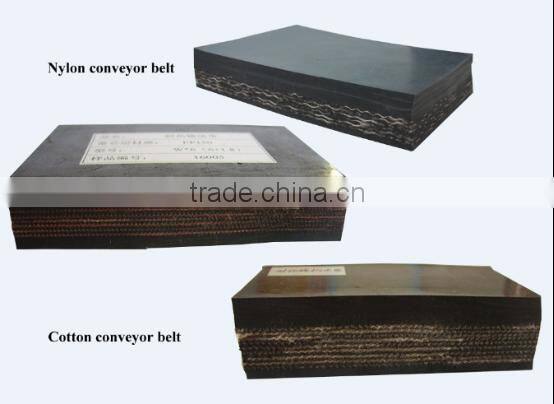

Textile carcass options
CC (Cotton)
NN (Nylon / Polyamide)
EP (warp polyester but weft polyamide )
EE (Polyester)
More Products Available
| Rubber Cover | Tensile Member | Belt Surface |
| Heat Resistant | Fabric Layer (CC/Cotton) | Smooth |
| Cold Resistant | Fabric Layer (NN/Nylon) | Chevron Patterned |
| Chemical Resistant | Fabric Layer (EP/Polyester) | Corrugated Sidewall |
| Oil Resistant | Steel Cord | |
| Fire Resistant | Solid Woven Fabric |
Make a enquiry
Please specify below info and also the total quantity needed.
