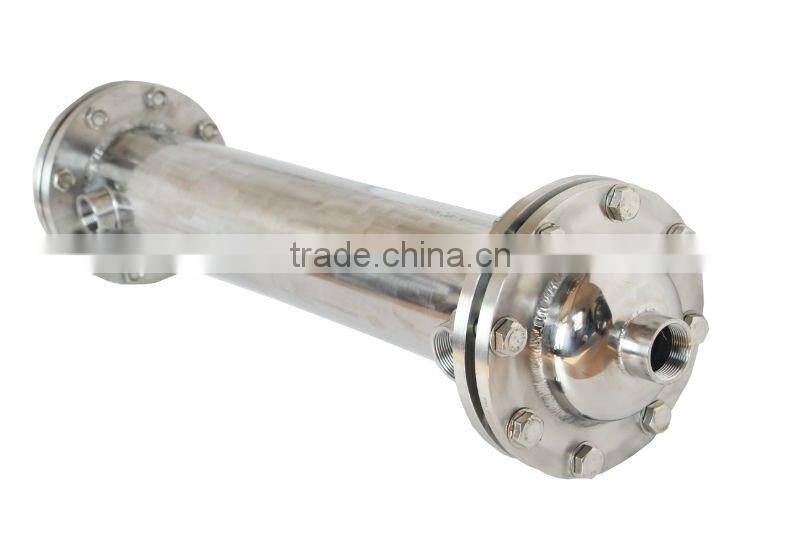

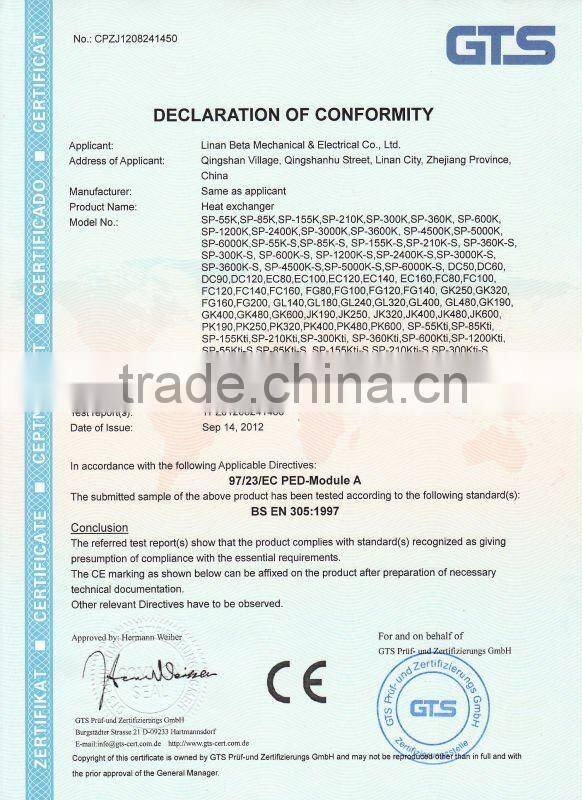

CE Approved Stainless Steel 316L Pool Heat Exchanger

Specifications

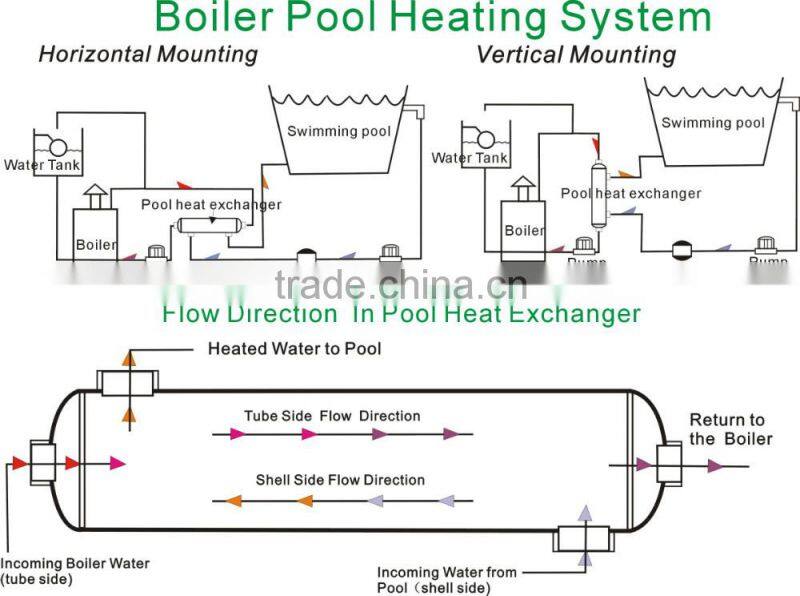

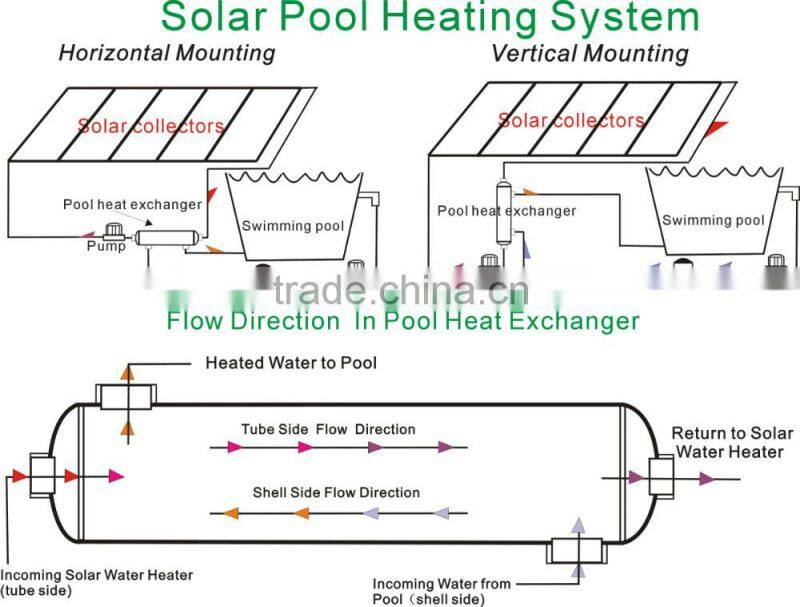

Our pool Heat Exchanger is designed for high efficiency solar,boiler pool/spa heating, domestic and central heating system.

We produce series of heat exchanger for pool heating with solar, boiler or heat pump heatng system



• Stainless steel pool heat exchangers
• Titanium pool heat exchangers
• Stainless steel electric pool heat exchangers
• Titanium electric pool heat exchangers

Features of Pool Heat Exchangers:

They are built by high heat transfer efficiency tubes, spiral twisted tubes, and smooth shell. The design produced more heat transfer efficiency, high velocities, low pressure drop and low fouling inside of the unit. It makes our heat exchangers a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler circuit and hot water circuits, besides other applications.

Fully Stainless Steel construction, they are good at sanitary water, drinking water, food process and medical process heating or cooling.

Advantages of Pool Heat Exchanger:
High heating efficiency
Big flow volume with low pressure drop
Low fouling

Material: All stainless steel
Max design temperature:208°C
Max. working pressure:3.0MPa

Heat Exchangers Performance of Solar Heat Exchangers:

Model No.	Normal Capacity		Heat transfer area
	kW	Kbtu/hr	m2	Ft2
SP-55K	16	55	0.15	1.636
SP-85K	25	85	0.25	2.702
SP-155K	45	155	0.33	3.552
SP-210K	61	210	0.44	4.769
SP-300K	88	300	0.64	6.889
SP-360K	105	360	0.85	9.128
SP-600K	175	600	1.55	16.695
SP-1200K	352	1200	2.01	21.582
SP-2400K	704	2400	4.47	48.116
SP-3000K	880	3000	5.30	57.051
SP-3600K	1056	3600	6.42	69.107
SP-4500K	1320	4500	8.46	91.066



Typical residential application:

In-floor heating
Swimming pools, spas heating
Driveway snowmelts



Typical industrial application:

Oil cooler
Transmission and engine cooler
Boiler sample cooler
Waste water heat recovery



1. High temperature resistant and water proof label

2. One unit will one instruction booklet

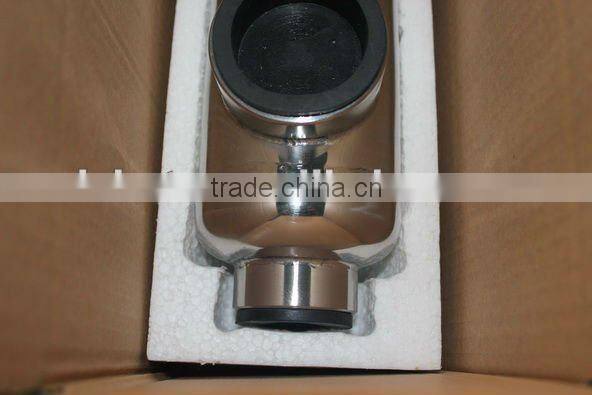

3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.

4. Quick delivery for sample and bulk order

5. Minimal order quantity: 1 unit

1. Sample provied

2. Quick delivery by FedEx or DHL

3. Customized production for special requirements

4. OEM logo and brand

5. Quality warranty: 1 year, free replacement for any fail due to our product

6. Retail store on line /store/208373 for credit card payment
