Home > Products > Taper Roller Bearing > 42686/42624 bearing roller TS type taper roller bearing 42686 42624
42686/42624 bearing roller TS type taper roller bearing 42686 42624
- 500000 Piece / Pieces per Month
- Shanghai
- L/C Credit Card
You May Like
-
China wholesale custom inch taper roller bearing 543/532X
-
OEM brands tapered roller bearing 7332E
-
OEM brands roller bearing 30208 taper roller bearing
-
High performance taper roller bearing inch series 07100S/07196
-
China wholesale custom inch taper roller bearing LM78349/LM78310C
-
Transmission roller bearing tapered roller bearing 95525/95925
Product Details
Brand Name | KAIFU | Bore Size | 74.987, | |
Outside Diameter | 129.975, | Model Number | 42686 42624 | |
Precision Rating | ABEC-5 ABEC-3 ABEC-1 | Seals Type | open | |
Number of Row | Single Row | Place of Origin | Anhui, China |
Product Description
bearing roller TS type taper roller bearing 42686 42624

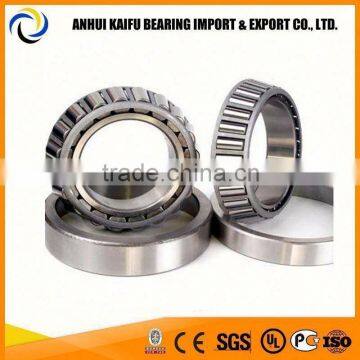

Tapered roller bearing
Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle . The size of the angle is indicated by the calculation factor e : the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing.
Single row tapered roller bearings are separable ,i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
Our Bearing Product Range:
1.Deep groove ball bearing
2.Thrust ball bearing
3.Angular contact ball bearing
4.Self-aligning ball bearing
5.Taper roller bearing
6.Cylindrical roller bearing
7.Spherical roller bearing
8.Bearing cage
9.Needle bearing etc...
d(mm) | D(mm) | T(mm) | Model | |
71.437 | 130.175 | 41.275 | 645 633 | 645/633 |
71.437 | 130.175 | 41.275 | 644 633 | 644/633 |
71.437 | 133.35 | 33.338 | 47675 47620 | 47675/47620 |
71.437 | 136.525 | 30.162 | 495-S 493 | 495-S/493 |
71.437 | 136.525 | 41.275 | 645 632 | 645/632 |
71.437 | 136.525 | 41.275 | 645X 632 | 645X/632 |
71.437 | 139.7 | 46.038 | H715345 H715310 | H715345/H715310 |
73.025 | 117.475 | 25.4 | LM814845 LM814810 | LM814845/LM814810 |
73.025 | 120 | 29.794 | 33287 33472 | 33287/33472 |
73.025 | 120 | 29.794 | 33287A 33472 | 33287A/33472 |
73.025 | 125.412 | 25.4 | 27680 27620 | 27680/27620 |
73.025 | 127 | 30.162 | 42683 42620 | 42683/42620 |
73.025 | 127 | 36.512 | 567X 563 | 567X/563 |
73.025 | 127 | 36.512 | 567 563X | 567/563X |
73.025 | 127 | 36.512 | 567X 563X | 567X/563X |
73.025 | 130 | 36.937 | 567X 562X | 567X/562X |
73.025 | 130.048 | 36.512 | 567 562 | 567/562 |
73.025 | 152.4 | 41.275 | 657 652 | 657/652 |
74.612 | 152.4 | 41.275 | 658 652 | 658/652 |
74.976 | 127 | 26.988 | 34294 34500 | 34294/34500 |
74.987 | 129.975 | 33.249 | 42686 42624 | 42686/42624 |
75 | 120 | 31 | JM714249A JM714210 | JM714249A/JM714210 |
75.987 | 131.975 | 39 | HM215249 HM215210 | HM215249/HM215210 |
76.2 | 105.57 | 13.495 | LL714649 LL714610 | LL714649/LL714610 |
Anhui Kai Fu Bearings import&export Co., Ltd.Specializing in the production of bearings stainless steel and so on. Products of high quality, fashionable, widely use.
We have plentiful experiance in doing business with diferent countries.both our company and products enjoy an good reputation from home and abroad.with so many talented workers here, we sincerely hope to have a cooperation with you in the future.
We can ship the goods for you by following ways:
1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package and so on.
2. By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3. By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
1.Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.
2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.
3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.
4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.
5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
Thanks for your view , feel free to contact me
Name:Nancy
Tel:+86 177 5655 5360
Skype:kf006
QQ:3229140370
....
