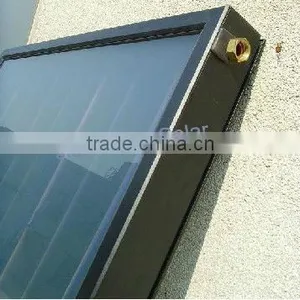

Flat Plate Solar Heater Collector (JSFC-M007)

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	JISHEN	Model Number:	JSFC-M007
Type:	Flat Panel	Application:	Water Heater	Pipe Material:	Copper

JISHEN solar collector is certified by CE, ISO9001, CCC, RoHS and SGS. It use solar energy to heat water & save money for you

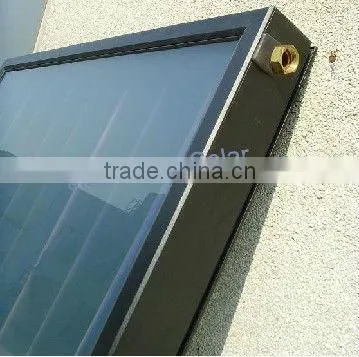

Flat Plate Solar Heater Collector (JSFC-M007)

Product specification of flat panel:
Size(LxWxH mm)	2000x1060x70/80/90(mm)
Total area of collector	2 M2
Daylighting area	1.85 M2
Absorbing area	1.85 M2
Material of cover glass/thickness(mm)	low-iron tempered patterned glass/4.0mm
Absorbancy	≥ 97%
Pipe port material /size	complete copper / Φ25x950mm
Pipe material/size	complete copper / Φ10x1950mm
Number of riser pipe	7/8/9 bars
Absorber fin/thickness(mm)	copper/0.2mm
Absorber coating	blue sputtering selective coating
Insulation materials /thickness	high-density fiberglass board/50mm
Back sheet	0.3mm galvanized steel plate or 0.5mm embossed alumimum plate
Material of frame / thickness	Anodized aluminium alloy(silver and black color) /90mm
Operation pressure	1.0MPa
Test pressure	1.6MPa
Working temperature	-34 ≤T≤200 centidegree
