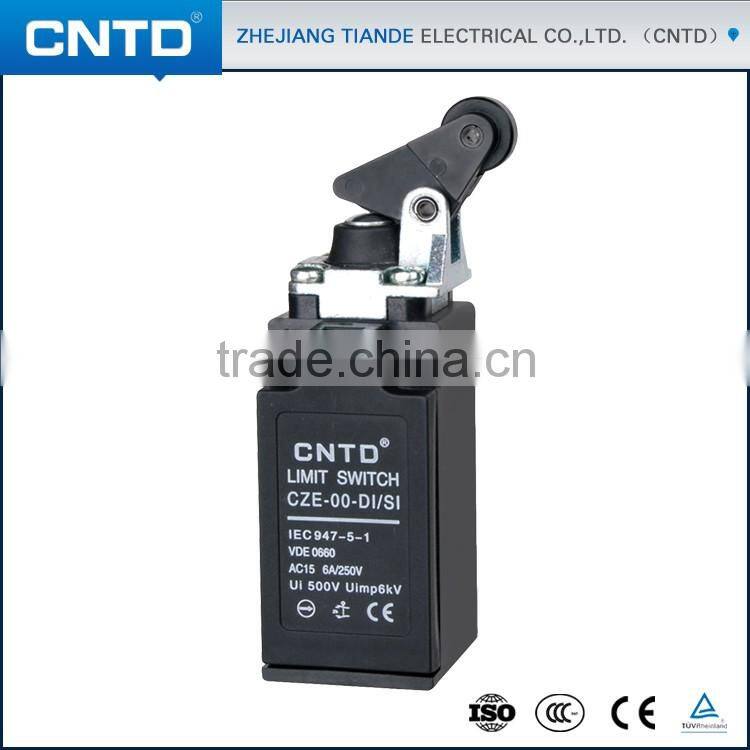

CNTD High Margin Products Plastic Limit Switch For Lifts For Elevator Parts
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai Port China
- T/T Credit Card PayPal
- CNTD Hot Sale Lever Operated Weight Magnetic Waterproof Float Limit Switch
- CNTD High Profit Margin Products Waterproof Roller Lever Limit Switch240V
- CNTD Cheap Goods From China Door Limit Switch/Magnetic Limit Switch/Elevator Limit Switch
- CNTD Wholesale China Factory CE RoHS Telemecanique Electrical Limit Switches
- CNTD Most Selling Products 10a 250v NO NC Plastic Electrical Limit Switch
- CNTD Best Business Ideas IP66 Direct Movement High Mechanical Strength Limit Switch
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CNTD | Model Number: | CZE-00-DI/SI |
Protection Level: | IP65 | Operating Temperature: | -5~+65C (with no icing) | Max. Current: | 10A |
Max. Voltage: | 250V |
Product Description
CNTD High Margin Products Plastic Limit Switch For Lifts For Elevator Parts
Features
- Compact design, various kinds of actuartors
- Easy wiring with full-open terminals
- Dust proof,water proof and oil resistant construction
You are here:Home>> Limit switch >> CZE Limit Switch
Actuartors available
Contact Block
1 NO+1 NC | fast action | 00 |
1 NO+1 NC | slow action | 01 |
1 NO+1 NC | slowe overlapping action | 02 |
2 NO | slow action | 03 |
2 NC | slow action | 04 |
2 NC | fast action | 05 |
2 NO+2 NC | fast action | 000(excluded E200) 000(E200 Except) |
1 NO+3 NC | slow action | 80 (model E400 only) 80(E400) |
2 NO+2 NC | slow action | 81 (model E400 only) 81 (E400) |
Product characteristics
Model No. | CZE-00-DI/SI |
Name | Limit switch |
Opertaing frequency | 1 operat/sec(Hz) |
Insulation resistance | 500VDC 100mΩ |
Dielectric strength | 50/60 Hz per 1* 2500VAC |
Rated thermal current | Ithe IEC947-5-1 10A |
Rated insulation voltage | Ui IEC947-5-1 500VAC |
Rated operating current | IEC947-5-1/EN60947-5-1 |
Category AC15 A300 le | 24V 10A |
125V 6A | |
230V 4A | |
400V 3A | |
Category DC13 Q300 le | 24V 10A |
48V 4A | |
120V 1A | |
250V 0.4A | |
Short circuit protective devices | IEC269(IEC947-5-1) 10A gl or gG type fuse |
Protection against electric shock | Plastic Class Ⅱ |
Metal Class Ⅰ | |
Electrical life | at 250VAC 6A with resistance load cos β =1 500.000cycles min |
at 250VAC 6A with resistance load cos β =0.4 500.000cycles min | |
Contact resistance | IEC255-7 cat.3 Initial value 25MΩ |
Vibration resistance | IEC68-2-6 0.35±15%(10÷55Hz±1 Hz)mm |
Protection degree | EN 60529 IP66 |
Distance between contacts | Snap action type 2×1,25mm |
Low action type 2×2mm | |
Shock resistance | IEC68-2-27 11ms 30g |
Terminals | Screw with combined notch and retravtable plate |
Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Related Products
Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Express,air shipment and sea shipment as per customers' request
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
