Turret Milling machine X6323

FOB Price

USD $1,500 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port any port in china
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

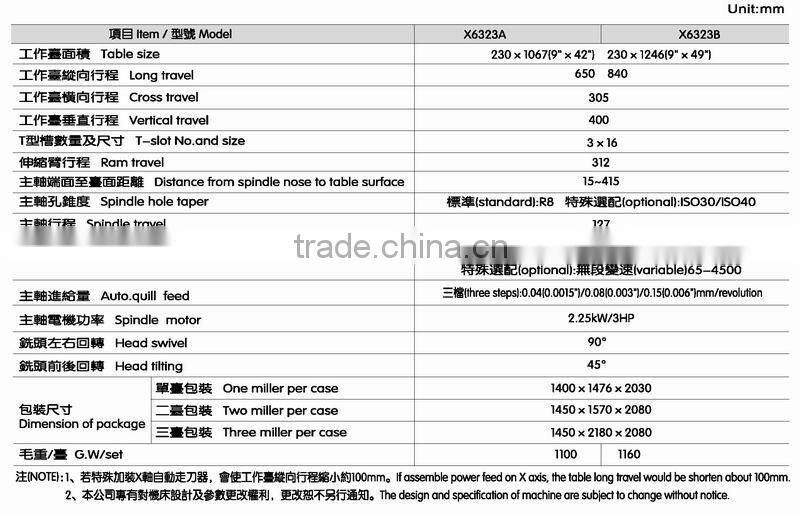

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	UNI-TECH
Model Number:	X6323	Type:	Vertical	CNC or Not:	Normal
Voltage:	220V/380V/440V	Power(W):	2.25KW/3.75KW	Dimension(LWH):	140014762030
Weight:	1100KG	Certification:	CE	Warranty:	ONE YEAR
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

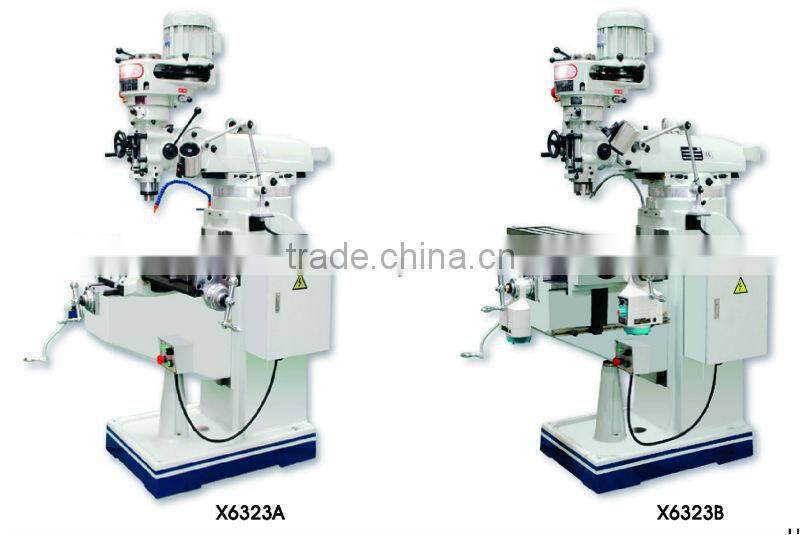

Turret milling machineX6323

Standard accessories: Draw bar, Tools box and tools, Working lamp, Electric cabinet, Manual oil pump.

Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.

On the X, Y and Z guideway of X6323A, we adopt the double 55°dovetail designation, it is very convenient for users to operate and maintain.

For X6323B, on X and Z axes guideway, we adopt the same 55°dovetail designation. But on the Y axis guideway, we choose rectangular guideway in increase the intensity.

For increasing the working life, the work table and X/Y/Z axes guideways have been hardened, which rigidity is within HRC45~60.

For insuring the accuracy, the worktable and guideway finished quenching will be going into the following high accuracy processing steps, like milling and grinding.

The milling head can title ±45°, Ram can be swivel 180° horizontally.

The guideway on saddle is adopted with TF-wearable material, so that to make the movement fluently.
