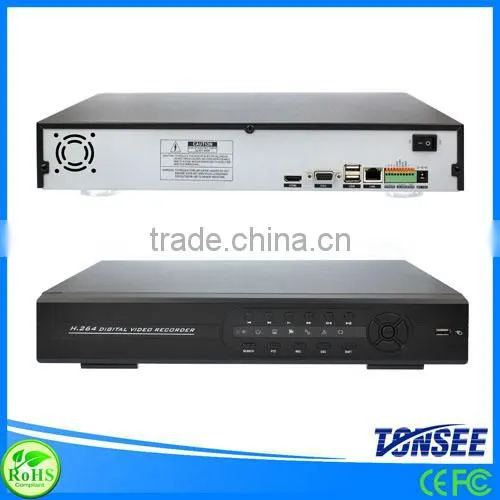

New HD 16ch 1080P recording NVR IP camera DVR 2MP Hi 3521 chipset NVR

Support all kinds of mobile phone monitoring

Support VGA,HDMI output. high definition output.VGA&HDMI support 1080P output

Support for multiple web browsers(IE,Chrome,Firefox,Safari)

Compression algorithm up to H.264 Main Profile.The advanced space-time filtering techniques make the code stream reduced by more than 30%

Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring,such as Android

Model

BE-8316N-I

System

Operating System

Embedded LINUX

function:recording,playback,backup & remote access,USB backup


Preview

1/4/8/16

Video

Video Standards

PAL 625 line, 50 Hz; NTSC 525 line, 60 Hz

Video Compression

H.264(High Profile)

Output

VGA,HDMI

(support:1920*1080,1280*720,1440*900,1280*1024, 1024*768,800*600 resolution)

Playback Resolution

1080P

IP Video Input

16CH 1080P

Motion Detection

Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)

Trigger recording,PTZ movement,tour,alarm,e-mail& FTP

Audio

Audio Compression

G.711A

Record &
Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Record

16CH 1080P

Playback

1CH 1080P

Search Mode

Time/Date,Alarm,MotionDetection & exact search

Storage &
Backup

Space Occupation

Video:CIF 4~5G/day/ch, D1 8~20G/day/ch;960H 12G~30G/day/ch;1080P ~40G/day/ch

HDD Capacity

Audio: 691.2M/day/channel

Backup Mode

Network backup/USB mobile HDD,SATA

Video Output

1CH VGA,1CH HDMI

Alarm Input

4ch

Alarm Output

1ch

Net Interface

RJ45 10M/100M/1000M adaptive Ethernet interfaces

PTZ Control

1 RS485,support many kinds of PTZ protocol

USB Interface

3* USB2.0 interface

Hard Disk

Support 2 SATA (each one can up to 3TB)

3G/WIFI

Support(through USB port)

Environmental

Power Supply

12V/4A

Power Consumption

<15W

Working Temperature

0°C-+55°C

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

L370xW300xH60 mm

Weight

2.8KG
