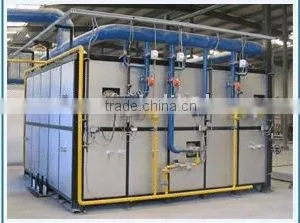

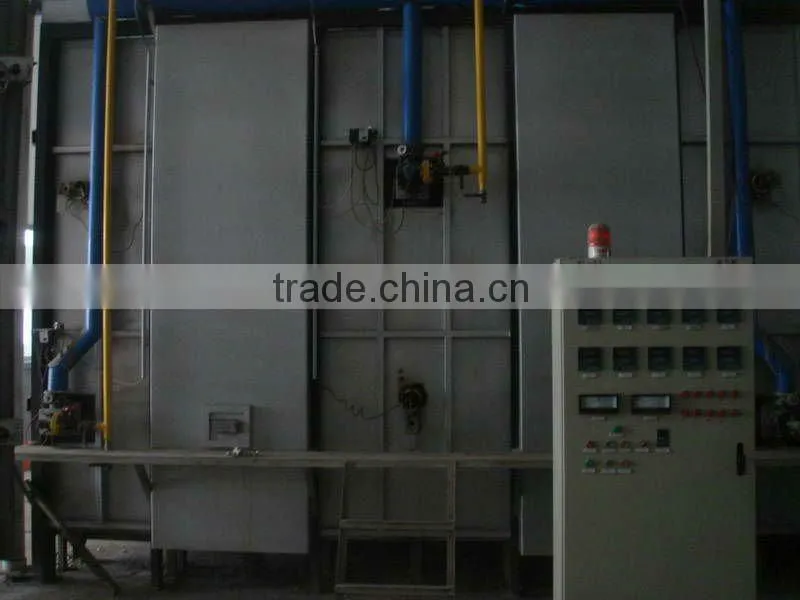

shuttle kiln
Negotiable
/ Set
1 Set(Min.Order)
- 1 Set / Sets per Month
- Xiangtan
- T/T
You May Like
Product Details
| Type | Other, Kiln | Brick Raw Material | Other, ceramics, aluminum etc | |
| Processing | Other, Ceramic tiles,aluminum products | Automatic | Yes | |
| Capacity | 20~60m3 | Place of Origin | China | |
| Brand Name | Weida |
Product Description
Specifications
1.Automatic control2,temperature uniformity
3.Temperature :1350oC
4.VOL: 20-60M3
Shuttle kiln is a very convenient firing furnace for ceramic roller,ceramic ring,ceramic insulator,aluminum ball and other speical ceramics.It also used for firing samll quantity clay roof tile and ceramic tiles.It is a important ceramic tile making machine and clay tile making machine.
Shuttle kiln main technical parameter:
- VOL: 20-60M3
- Module: 3-5piece
- Firing cycle: 24-32HR
- Fuel consumption: ≤2500±10% kcal/kg
- Quantity of heat generated: 22,000/8,500 kcal/mm3
- Working temperature: 1500oC
- Max temperature: 1550oC
- Burner: 10-16sets
- Qualified rate: ≥97%
- Deviation in section temperature: ≤±8oC
- Temperature of the kiln’s surface: ≤65oC
