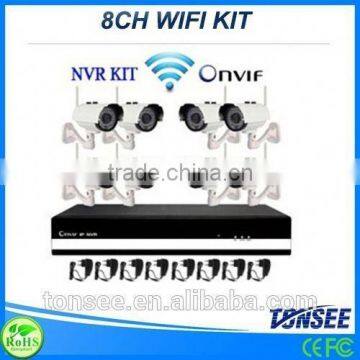

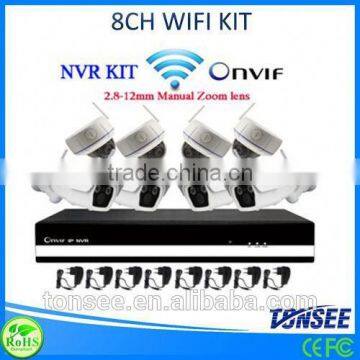

ip nvr 8ch cctv camera wifi dome camera road traffic signs wifi ip camera kit P2P

FOB Price

USD $377 - $433 / Piece

10 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Bessky/OEM
Model Number	6009SLIPDB	Type	Other, IP Camera, Wifi Kit
Style	Other, Bullet Camera, WIFI NVR&WIFI IP Camera	Sensor	Other, CMOS, Wifi Signal
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

ip nvr 8ch cctv camera wifi dome camera road traffic signs wifi ip camera kit P2P

Product Description

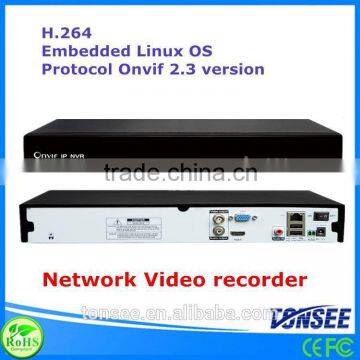

DVR Main Features:

Support 9CH 1080P/960P/720P Viewing/Recording
Support 4CH 960P&720P/1CH 1080P playback
Support 1CH BNC/VGA/HDMI output
Support 9CH audio In/ 1 CH Out
No alarm in/out
Support mobile/ie/software remote view
support 1 SATA HDD,max capacity 4T

DVR Specification:

System
Main processor	High performance embedded microprocessor
Operating system	Embedded LINUX OS
Video spec.
Video compression format	H.264
Display Image Resolution	D1@30fps;720P@30fps; 960P@30fps;1080P@30fps
Playback Image Resolution	720P@30fps;960P@30fps;1080P@30fps
Audio spec.
Audio compression format	adpcm g711
Recording Mode
Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage	HDD,Network
Frame rate	30 fps NTSC;25fps PAL
Playback	1080P1CH/960P4CH/720P*4CH
Backup Mode	Support HDD,USB Flash Disk store & backup
Video
Network Video Input	9ch
Video output	1ch
Audio
Audio Input	9ch IPC Composite Audio
Audio Output	1ch IPC Composite Audio
Other
Network	1x10/100Mbps,RJ45 port
RS485	Standard 485 port,support half-duplex,green terminal port
USB	2 USB 2.0 ports
HDD	support 1pcs 4TB SATA HDD inside
Power	DC +12V /4A
Power consumption	16W-18W(not include HDD and PoE)
Operation temperature	-10°C-+55°C
Operation humidity	10%-90%
Demension	335MM252MM50mm(1U hight)

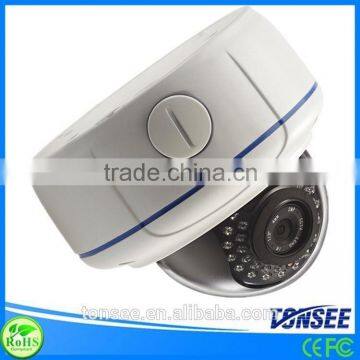

Camera Specification:

Item	BE-IPDA100E	BE-IPDA130E	BE-IPDA100S	BE-IPDA130S	BE-IPDA200
Chipset	1/4-inch 1.0 Megapixel (720P 1280*720@20fps ) HI3518E+OV 9712 CMOS (not support Audio in/out)	1/3-inch 1.3 Megapixel (960P 1280*960@20fps) HI3518E+AR0130 CMOS(not support Audio in/out)	1/4-inch 1.0 Megapixel (720P 1280*720@30fps ) HI3518C+OV 9712 CMOS	1/3-inch 1.3 Megapixel (960P 1280960@30fps, 720P 1280720@30fps) HI3518A+AR0130 CMOS	1/2.5-inch 2.0 Megapixel (1080P 1920*1080@30ps) HI3516C+Sony IMX 122 CMOS
Day and Night	Yes
Min.Scene Illumination	0.5lux(IR ON)	0.01lux(IR ON)	0.5lux(IR ON)	0.01lux(IR ON)	0.01lux(IR ON)
Infrared sensitivity	Support
IR Filter	IR-CUT
IR-led	30 pcs 5mm
IR distance	25M
Electronic shutter	1/5-1/15,000 /S
lens	6mm fixed lens (4/8MM optional)
Compression	H.264 Main Profile/Baseline
Picture Resolution	720P 1280*720@20fps	960P 1280*960@20fps	720P 1280*720@30fps	960P 1280960@30fps, 720P 1280720@30fps	1080P 1920*1080@30ps
Steam flow	Support dual stream
Bit Rate	32-16384kbps
Bit Rate Type	CBR/VBR
S/N Ratio	>50DB
Image enhancement	Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted
Subtitles input	Support channel name, date/time
Flip Config	Up/down, Left/right
Audio
Audio	Support the microphone input and LINE OUT, support two-way voice intercom equipment
equipment	An external audio equipment
Audio input/ output	one channel audio input, one channel audio output
Audio Compression	G.711
Network
Protocal	HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,PSIA
Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
Safety	IP address filtering,User level password protection,The user access log
Software
WEB Browser	Microsoft Internet Explorer 6.0 and above,google,firefox etc.
Software Management	CMS and the devices Compatible with ONVIF
Software intelligence function	Motion detection, Network disconnect, IP address conflict
Event action	Files are stored to the back end equipment,Send E-mail,take pictures,send to FTP, etc
Remote Access	DDNS,P2P(network and mobilephone)
Physical properties
Power Supplier	DC 12V/1A
Temperature	-20°~60°C
Humidity	-10~85%
Certification	CE ,FCC,RoHS
