Professonal Prefered Agricultural Sprayer

Specifications

Professonal Prefered Agricultural Sprayer
Equipped with Honda, Kawasaki, Mitsubishi or Robin engine
CE approved

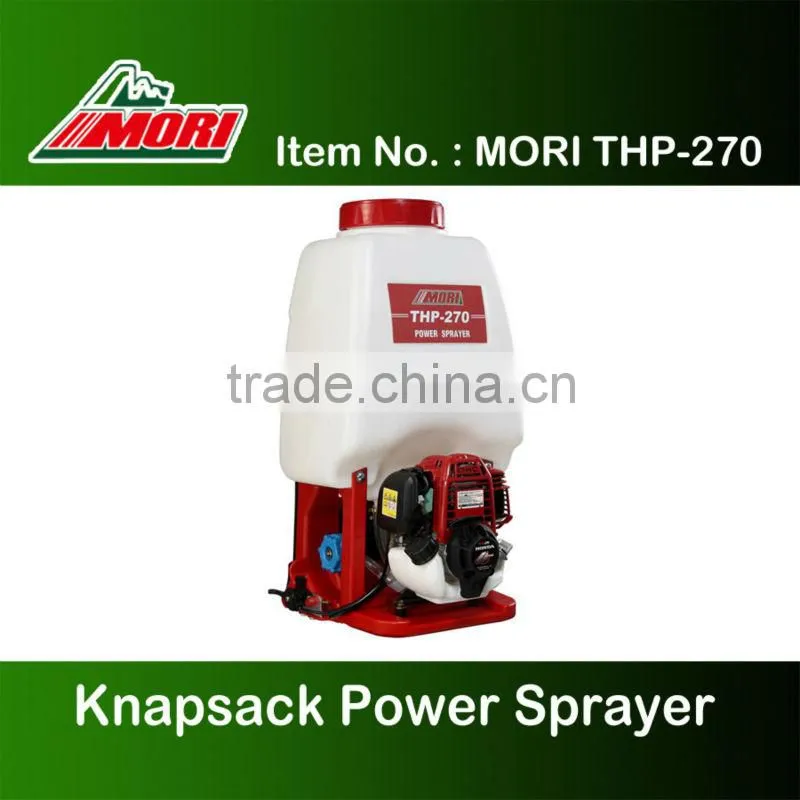

 MORI THP-270 Agricultural power sprayer







Features

MORI THP-270 shoulder type of sprayer are

* equipped with strong plastic frame

* with EVA comfortable & ventilated pad & straps

* with hole on back frame for easy maintainance

* easy type of switch with stop function

* durable clutch assembly

* with horizontal pluger in plastic with light loading for saving fuel

* with chemical tank in 27 liters

* Max. pressure : 32 kgs/cm²

* spraying volume : 7.1 liters/minute

* with 4 speed of spraying pressures from plunger

* equipped with original Honda,Kawasaki,Mitsubishi,Robin engines of sprayer



Engine Specification

Shoulder type of sprayer		MORI THP-270H		MORI THP-270K	MORI THP-270M		MORI THP-270R
Engine	Brand & model	HONDA		Kawasaki	Mitsubishi		Robin
		GX25	GX35	TJ27E	TLE20	TU26	EC025	EH025
		4 STROKE		2 STROKE				4 STROKE
	Displacement	25 cc	35.8 cc	26.3 cc	19.8 cc	25.6 cc	24.5 cc	24.5 cc
	Max output (kw)	0.81	1.2	0.77	0.6	0.67	0.88	0.81
	Fuel tank capacity (liter)	0.55	0.65	0.5	0.4	0.6	0.6	0.5
	Carbure Type	Diaphragm
	Start System	Recoil Starter
	Clutch System	Automatic centrifugal

Safety/Quality Approvals

ISO 9001:2708
SGS, TUV, CE
