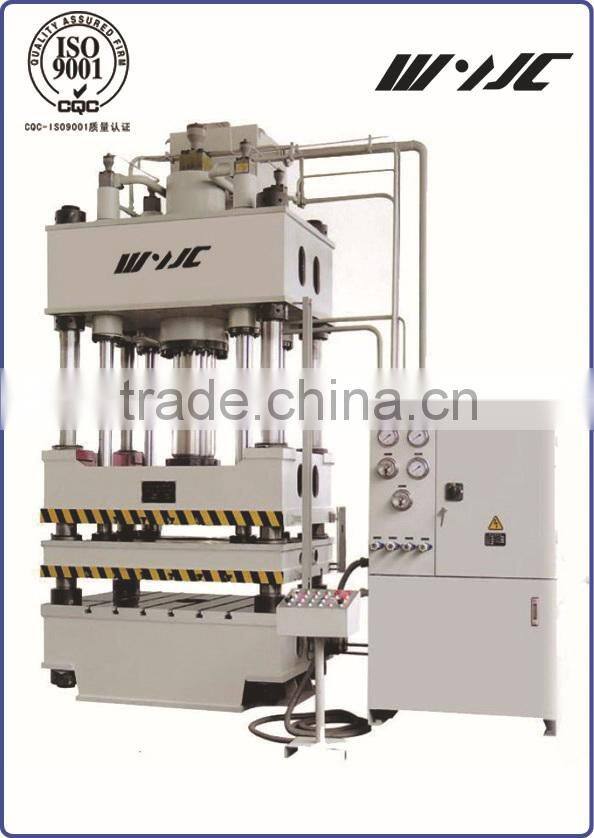

Y28-300/500 Double Action Sheet Drawing Hydraulic Press Main Technical Parameters Punching

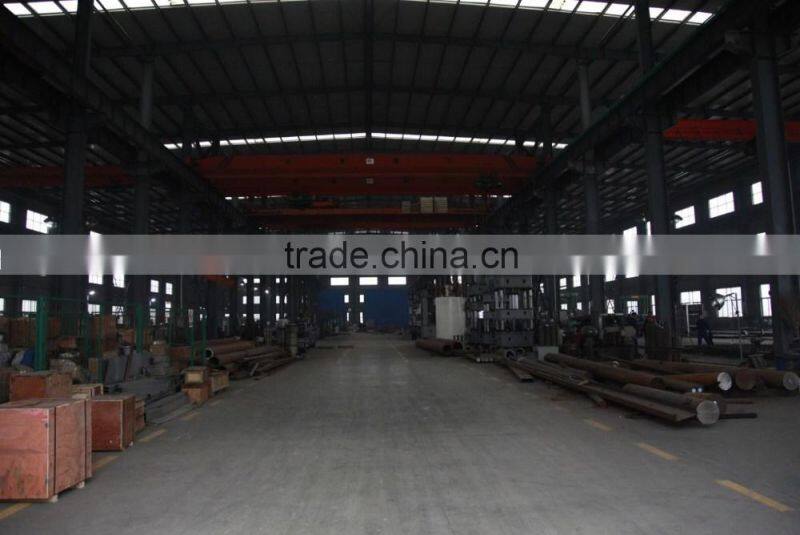

Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.

From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

 1. Four-post structure, Frame type structure, collaborative guiding system.

2. Fault diagnosis function.

3. Comprehensive security proitection to ensure the safe production.

• Proportional regulation for slide speed

• Moving table

• Light curtain safety device

• Oil heating/cooling unit

• Die protection unit

• Displacement sensor

• Die exchange cart

• Industrial touting screen monitor

• Upper ejector (hydraulic or mechanical type)

• Floating guide-way and rolling bracket for die exchange

• Power socket

• Hydraulic driving system upon upper platform

• Quick die clamping device

• Importer PLC

• Slide upper locking device

 This series of hydraulic press is suitable for metal sheet twice stretch forming, meet with many plane complex structure pressing. Particularly applicable to the following fields: metal containers class, large automobile cover parts and components, all kinds of mould debugging, motocycle, voyage.

   Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
