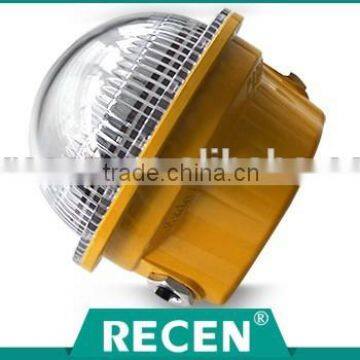

5*1w IP65 China manufacture solid maintenance-free micro water proof mini size Led explosion proof light
- 3000 Set / Sets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
-
20w 30w 40w IP67 maintenance-free longevity energy-saving Led explosion proof lighting
-
100 120 140 200 watt IP66 high lumen LED Explosion proof road light, manufactures led street light
-
50 60 70w IP66 LED Explosion proof street light, explosion proof spot light, explosion proof flood light
-
40 50 60w China factory warranty 3 years oil field low consumption Led explosion proof light
-
IP66 China factory 80 watt 100 watt aluminum alloy Led explosion proof light
-
IP65 low consumption alloy energy-saving 50w Led explosion proof light, explosion proof spot light
Product Details
| LED Light Source: | bridgelux LED | Input Voltage(V): | 90-265V | Lamp Power(W): | 5 |
| Lamp Luminous Flux(lm): | 430 | Lamp Luminous Efficiency(lm/w): | 86 | Color Temperature(CCT): | Pure White |
| Working Temperature(℃): | -20, 40 | Working Lifetime(Hour): | 100000 | IP Rating: | IP65 |
| Certification: | CCC, CQC | Emitting Color: | White | Place of Origin: | Zhejiang, China |
| Brand Name: | RECEN explosion proof light | Model Number: | RFBL156 |
Product Description

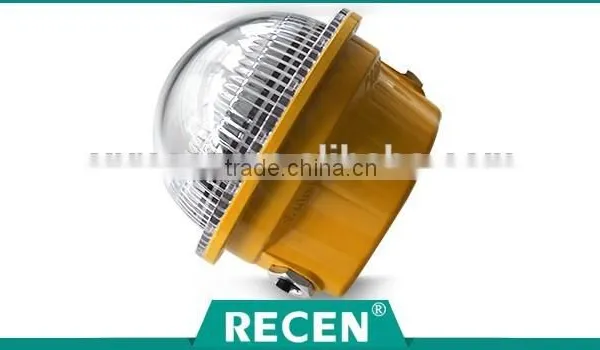

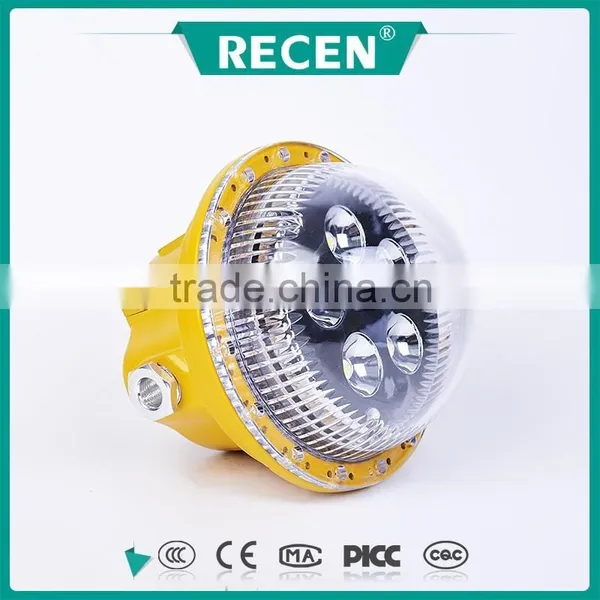

5*1w IP65 China manufacture solid maintenance-free micro water proof mini size Led explosion proof light RFBL156
Application:
It meets the standards and requirements for hazardous environments.

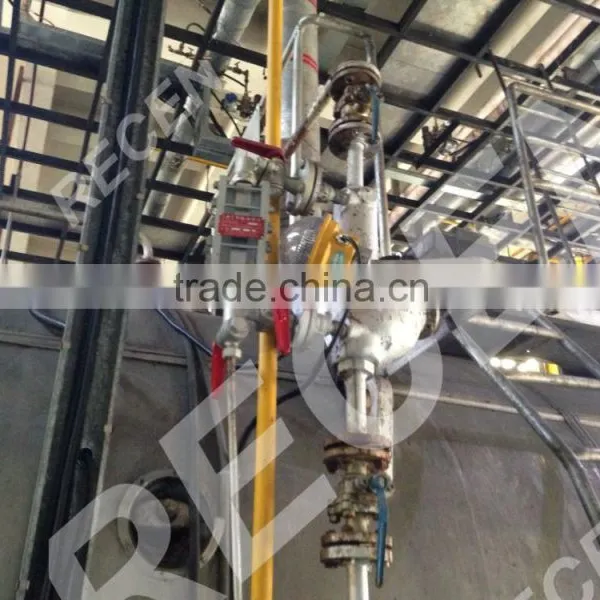

Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and damp condition
Features and benefits
1. using the highest of Explosion-proof grade , in flammable and explosive area to safe work
2. the 4th generation green protection environments ,high efficiency of light ,almost maintenance-free operation due to long service life of the LED
3. energy-saving. energy cost saving up to 80% realisable
4. downy and anti dazzle.
5. The aluminum body is powder coated for anti corrosion, which is dust and water proof.
6. Anti-bullet glue material resist impact ,can be work in harsh environments.
7. Various installation options
Specification of explosion proof light
| Technical parameters | |||||
| No | Specification | unit | Reference values | ||
| 1 | Rated Voltage | V | AC220 | ||
| 2 | Frequency | Hz | 50/60 | ||
| 3 | Light source(LED) | Power | w | 5 | |
| Luminous flux | 5 | lm | 430 | ||
| service life of light source | h | 100000 | |||
| 4 | The introduction of cable(diameter) | mm | 8~12 | ||
| 5 | Dimensions | out diameter | mm | 135 | |
| Length | 145 | ||||
| 6 | weight | kg | 1.4 | ||
| 7 | Screw thread of inlet | G3/4'' | |||
| 8 | Protection grade | IP65 | |||
| 9 | Anti Corrosion | WF2 | |||
| 10 | Insulation Grade: | I | |||
| 11 | Ex code: | Ex d II C T6 | |||

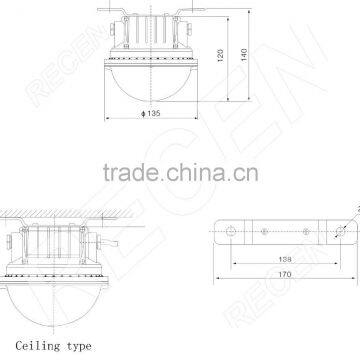

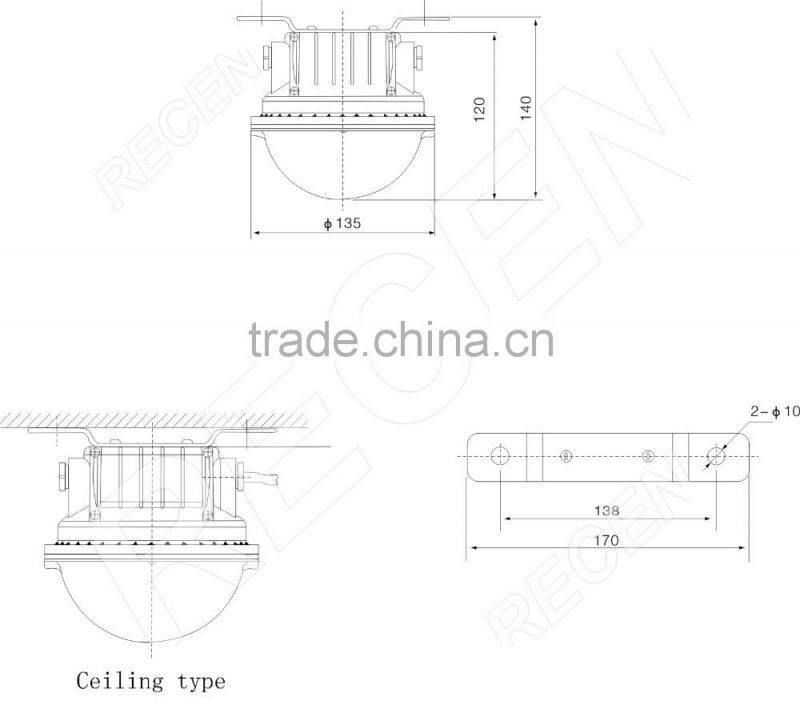

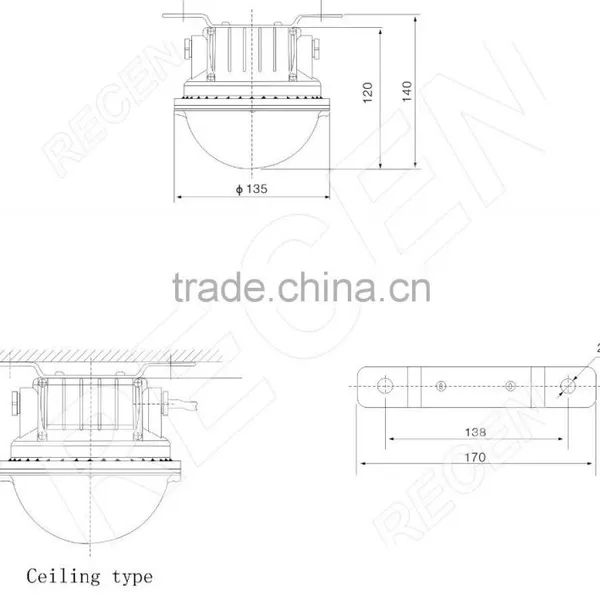

Explosion proof light of installation drawing

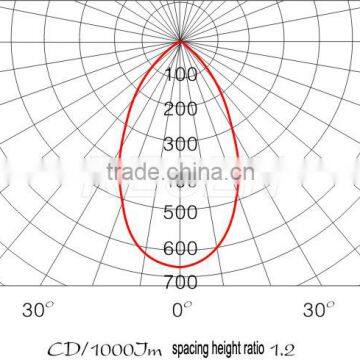

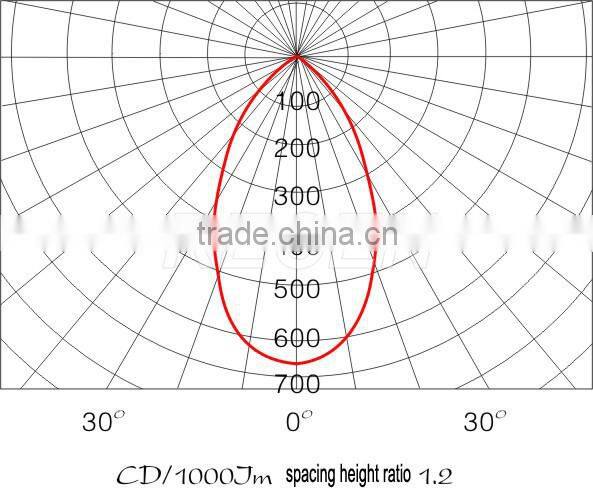

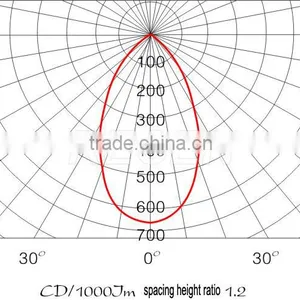

Explosion proof light of light distribution curve
Related products Some of model light have three rated power for your select , satified to your different demands.
| RFBL154 | RFBL158 | RFBL105 | RFBL164 | RFBL165 |
| RFBL103 | RFBL153 | RFBL160 | RFBL162 | |
| RFBL155 | RFBL104 | RFBL157 | RFBL161 | |
Packaging Details: regular packing or customized for explosion proof light
Delivery Detail: 10-20days after receiving the 30%deposit for explosion proof light
Quality Guarantee
Thank you for purchasing explosion proof light of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. Explosion proof light warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us
Because we believe in providing quality not just the first time, but every time:
High Customer satisfaction
Various of products
Competitive price
OEM/ODM are welcomed
Our products patents and ISO 9001:2008
Recen CCC certification , business license and trade mark.
RECEN tax registration certification and Organization-Code-Certificate
Q: Which areas need to use explosion proof light?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of explosion proof light?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of explosion proof light will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
