(ZHW-100) Blister Automatic Cartoning Machine

Wenzhou Gaoger Machinery Technology Co., Ltd.
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-1
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-2
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-3
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-4
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-5
(ZHW-100) Blister Automatic Cartoning Machine thumbnail-6
(ZHW-100) Blister Automatic Cartoning Machine photo-1
(ZHW-100) Blister Automatic Cartoning Machine photo-2
(ZHW-100) Blister Automatic Cartoning Machine photo-3
(ZHW-100) Blister Automatic Cartoning Machine photo-4
(ZHW-100) Blister Automatic Cartoning Machine photo-5
(ZHW-100) Blister Automatic Cartoning Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Other, Blister
Automatic Grade Automatic
Driven Type Electric
Voltage 380V,3p or 220V
Power 7.5KW
Place of Origin Zhejiang, China
Brand Name Gaoger
Model Number ZHB-100
Weight 2100kg
Dimension(L*W*H) 4100x850x1700mm
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

ZHW-100 Blister  Automatic Cartoning Machine



Specifications
1. Automatic Cartoning machine
2.PLC and touch screen
3.Speed is 100boxes/min
4.Insert leaflet and product



Instructions

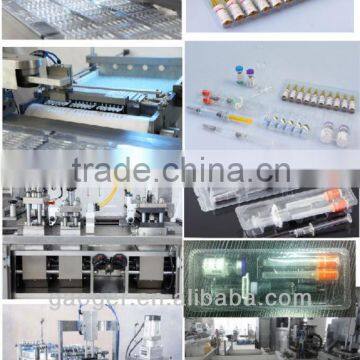

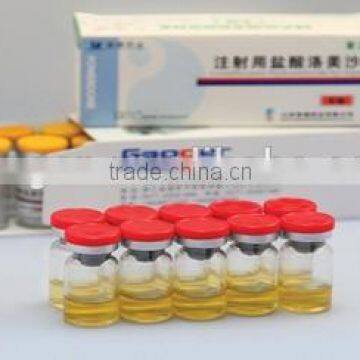

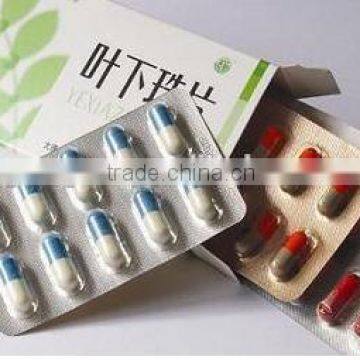

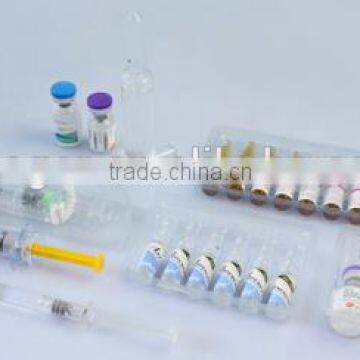

Cartoning machine is suitable for blister cartoning,bottle, pouchs and
injection,medicine,cosmetis,condom.food.,tube,ointment,wrapped products.The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.

Feature:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .
 Option
Ink-jet printing system

 Certificates
ISO9001:2008, CE, GMP



Parameters of ZHB-100 Automatic Cartoning Machine (for Bottles/Vials)

Cartooning speed100 Boxes/min
Size of blister>40×35×35mm < 150×87×50mm
Size of bottleMin: diameter 25 height: 50 (mm)
Max: diameter 90 height: 150 (mm)
Quality of carton250~350g/m2
Motor power1.5 kw
Power supplyThree Phases Four Wires 380V 50Hz (220V 60 Hz)
Air pressure and flow0.5 Mpa >0.6m3/min
Air consumption≥ 0.9 m3/h
Noise standard<85 dB
Size (L*W*H)2800×1350×2000 (mm)
Weight1200 Kg

(ZHW-100) Blister Automatic Cartoning Machine  (ZHW-100) Blister Automatic Cartoning Machine (ZHW-100) Blister Automatic Cartoning Machine

(ZHW-100) Blister Automatic Cartoning Machine  (ZHW-100) Blister Automatic Cartoning Machine

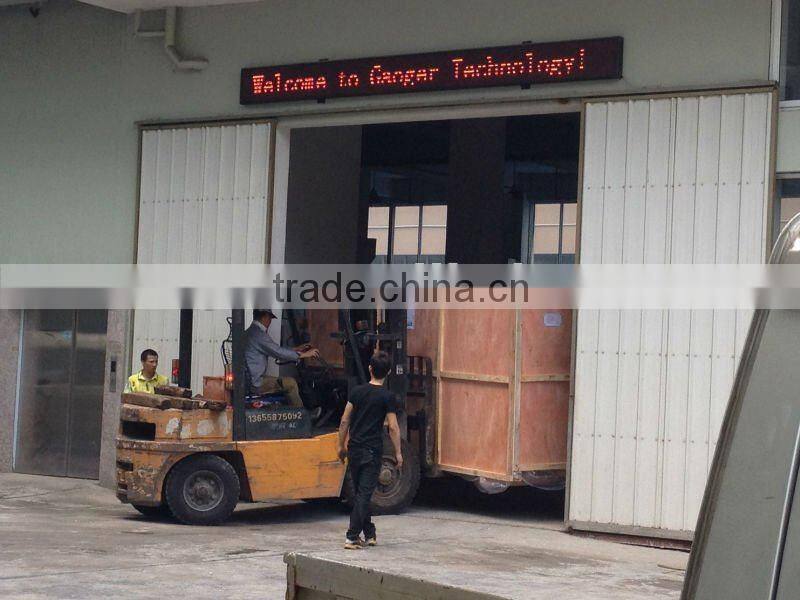

Packaging & Shipping



(ZHW-100) Blister Automatic Cartoning Machine

Company Information

 (ZHW-100) Blister Automatic Cartoning Machine



Our Services



1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.



2.Clients Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.



3.After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.



Your satisfication is our persuit forever!





We Provide You With Sincerely Service, if you have interest,contact us NOW!!!



Tel:0086-577-63081586 FaxL0086-577-63081580

Skype :aliceweng88   Whatapp:0086-13567753599

Wechat:008613567753599

QQ:758435953
