Household Lathe Machine Mini Hobby Bench Lathe Machine

Anhui Yiming Plastic Co., Ltd.
Household Lathe Machine Mini Hobby Bench Lathe Machine thumbnail-1
Household Lathe Machine Mini Hobby Bench Lathe Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 270 mm
Place of Origin Anhui, China
Model Number CQ 270
Voltage 220V/110V
Power(W) 550 w
Dimension(L*W*H) 1370/1550x620x880 mm
Weight 135 kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Household Lathe Machine Mini Hobby Bench Lathe Machine







 Features:



• Precision full gear drive
• Hardened and two “V” bed ways
• Encopassed on strong cast iron rib webbing and compound slides
• Full set change gears for metric and inch threads







Specifications:







Specifications

CQ 270

Swing over bed

270 mm

Bed width

150 mm

Swing over cross slide

135 mm

Distance between centers

500/700 mm

Spindle bore

27 mm

Spindle speed

110 – 1650 rpm

Spindle taper

MT4

Compound travel

75 mm

Cross slide travel

115 mm

Range of longitudinal feeds

0.05 / 0.15 mm

Rate of movement

0.05 mm / degree

Metric threads

20 / 0.2–3.5 mm

Inch threads

20 / 56-8 tpi

Tailstock taper

MT3

Travels of tailstock quill

40 mm

Motor power

550W

Dimension

1370/1550x620x880 mm

Net weight

135/175 kg

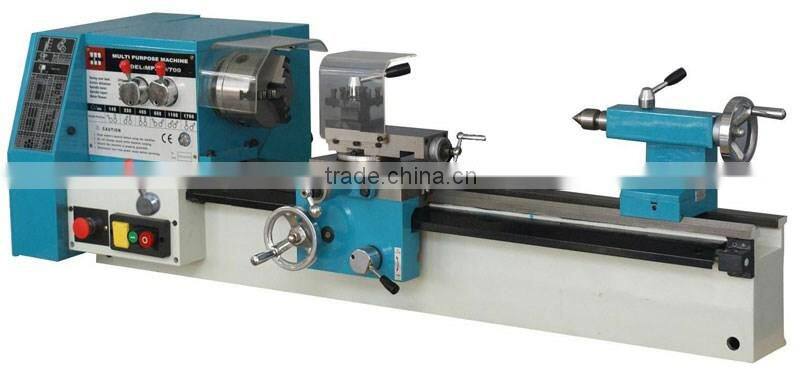

Product Picture:



Household Lathe Machine Mini Hobby Bench Lathe Machine
