High Speed Gravure Printing Machine
- 20 Set / Sets per Month
- Ningbo Port
- T/T Credit Card
-
High-speed Computerized Gravure Printing Machine(speed 160m/min)
-
High Speed Small Gravure Printing Machine (Model:SLAY-B) for Sale
-
New Arrival High Speed Computerized Gravure Printing Machine
-
High-speed Seven Motor Gravure Printing Machine (SLAY-D Model Double Rewind & Unwind
-
SLAY-C roto gravure printing machine,gravure printing machine price
-
new listing stable performance SL Medium-Speed Computer Gravure Printing Machine
Product Details
| Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | SL |
| Model Number: | SLAY-D | Usage: | Other, Flexible packaging film printing | Automatic Grade: | Automatic |
| Voltage: | 380V 50Hz | Gross Power: | 180KW | Dimensions(L*W*H): | 16000x3400x2750mm |
| Weight: | 28000KGS | Certification: | CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Gravure Printing Machine2.Doctor Blade Printing Machine
3.CE Standard Gravure Pinting Machine
High Speed Doctor Blade Gravure Printing Machine
Application
Gravure Printing Machine in this series are applicable for continuous multi-color printing on rolling materials in good printing performance such as cellophane, BOPP, PET, PVC, PE, aluminum foil, and paper, broadly applied for all types of super-quality printed matters.
Main Feature
1.Unwinder/Rewinder Turret Type.Auto Cutting/Splicing.
2.Seven Vector Motor+YASKAWA Inverters Tension Control System, Siemens PLC Program.
3.Vertical Auto Register System With Web Video Inspection.
4.Shaft Less Printing Cylinder Loading Device. Printing Cylinder Is Fixed By Shaft-less Air Chuck.
5.Doctor Blade With Dual Gas Cylinder Pressing, Horizontal Movement Drive By Motor.
6. Pneumatic Ink Auto Circulating System
7.Sealed Hot Wind Circulation Oven, Automatic Constant Temperature, Diesel Oil Air-stove Or Electrical Heating For The Mrying methods.

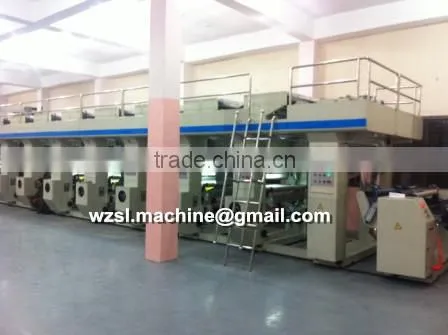

Machine Photos For Reference:
