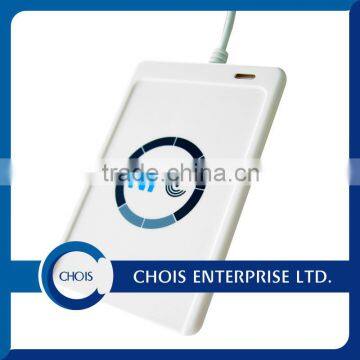

Hot Sale Design ACR122u NFC Smart Card Reader

The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports ISO 14443 A and B cards but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

Description of acr122u nfc smart card reader:

The NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only IC and ISO 14443 A and B cards but also all four types of NFC tags.

The NFC Reader is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, it can also read and write more quickly and efficiently.

Features of acr122u nfc smart card reader:

• CCID-compliant
• PC/SC-compliant
• Read/write speed up to 424 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 type A and B, 13.56mhz, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
• Built-in anti-collision feature (only 1 tag is accessed at any time)
• User-controllable bi-color LED
• User-controllable buzzer

Our manufacturer RFID reader includes: UHF long range reader, EM long range reader, USB desktop reader, TCP/IP LAN reader, access control wiegand reader, 2.4G active reader, 125Khz EM reader, 13.56MHz 13.56mhz reader and more

Specification of acr122u nfc smart card reader:

• Dimensions (L x W x H): 98 x 65 x 12.8mm
• Weight: 70g
• Interface: USB full speed
• Operating distance: up to 50mm (depends on the tag type)
• Supply voltage: regulated 5V DC
• Supply current: 200mA (operating), 50mA (standby), 100mA (normal)
• Operating temperature: 0-50°C
• Operating frequency: 13.56MHz
• Smart card interface: support
• ISO14443 type: A & B
• 13.56mhz, FeliCa
• 4 types of NFC (ISO/IEC18092) tags
• Compliance/certifications: PC/SC, CCID, CE, FCC, VCCI, RoHS compliant, USB full speed
• Microsoft WHQL: 2000, server 2003, XP, Vista, server 2008, server 2008 R2, 7
• Operating system support: 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008, Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Windows CE 5.0
• Mac
• Linux

Specifications of acr122u nfc smart card reader:
