Specifications
lightweight foldable led screen1.Light weight.
2.Easy and fast installation.
3.Seamless connection.
lightweight foldable led screen
10 mm soft LED display which is designed by Shenzhen LAMP could help you to create an unique environment as you need. Engineer use state-of-art technologies. This bemdy display can be bent like wave and flexed to fit curved surfaces of almost any shape or form, such as convex, concave and so on.
Advantages:
| Visual Parameter | |
| Pixel Pitch: | 10mm |
| Pixel Density: | 10,000 pixels/sqm |
| Pixel Configuration: | SMD3528 |

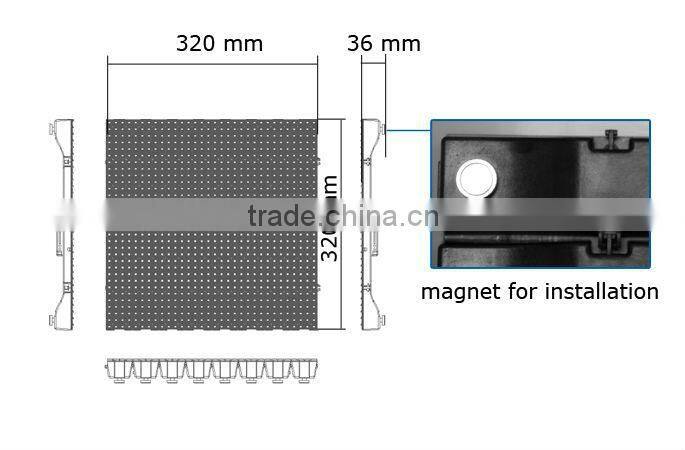

| Cabinets Dimension: | 320*320*36 mm |
| Cabinets Resolution: | 128*64 pixels |
| Performance Parameter | |
| Brightness: | 1,200 cd/sqm |
| Best Viewing Distance: | >10m |
| Max Consumption: | 30 W/cabinet |
| Weight: | 1 kg/cabinet |
| Viewing Angle: | Horizontal angle: 140 degree Vertical angle: 140 degree |
| Gray Scale Level: | 16 bit |
| Refresh Rate: | 1,200Hz |
| Scan Mode: | 1/8 Scanning |
| LED Lifetime: | 50,000 hours |
| Environment Parameter | |
| Temperature Range: | -20~60°C |
| Input Voltage: | 100~240VAC, 50/60Hz |
| Operation Humidity: | 10%~99% |
| Ingress Protection: | IP20 |
| Control Parameter | |
| Control System: | DBSTAR |
| Control Distance: | 100m via CAT05/Maximum 10km via Fiber Optic (Single mode) |
| Signal: | DVI up to UXGA, SDI, HD-SDI, S-video, compositem, YUV |
All product specifications are for reference only and subject to change without prior notice;Please contact sales for details;
Product Show
About Us
Products Equipment:
Shenzhen LAMP Technology Co. Ltd is equipped with a series of first-class machines for LED lamps and LED displays, such as auto-die machine, auto rank machine, silicon feeding machine, reflow soldering machine, testing equipment, wave soldering auto-line, SMT auto-line and so on. We also have separate R&D center, new-product lab, wave soldering workshop, SMT workshop, LED binding workshop and LED module workshop, which guarantee our best quality control from LED lamps to LED display.
Auto-die bonding Machine Auto-wire bonding Machine
Wave Soldering Auto-line Auto-ranking Machine
Auto-casting Machine High & Low Temperature Testing Cell
SMT Auto-line
After-sale service
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
