Home > Products > Back Lit Panel Light > SUPER SLIM AND NARROW BACK LIT PANEL LIGHT BIS CETIFICATION

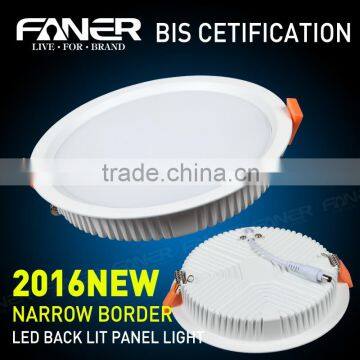

SUPER SLIM AND NARROW BACK LIT PANEL LIGHT BIS CETIFICATION
- 10000 Piece / Pieces per Month
- Shenzhen/Guangzhou
- T/T
You May Like
-
FANER BIS Certification 3years warranty 18w led panel light 600 600
-
Approve BIS Certification warranty 120LM/W surface mounted led panel light
-
FANER BIS Approve 3/5years warranty 100LM/W led panel light 12w slim
-
BIS approve Certification 3years warranty led panel light 300x300
-
36w 48w 60w Round Surface LED Panel Light 400mm 500mm 600mm
-
Big Surface LED Lights Panel 24w
Product Details
| LED Light Source | SMD2835 | Warranty(Years) | 2 | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 24 | |
| Lamp Luminous Flux(lm) | 2400 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP33 | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | FANER | |
| Model Number | FANER-BACK1 |
Product Description
| Power | 7W | 16W | 24W | 32W |
| Size(mm) | Φ120xH30 | Φ170xH30 | Φ225xH30 | Φ300xH300 |
| Cut-out(mm) | Φ110 | Φ160 | Φ210 | Φ282 |
| Input Voltage | 90-300V AC | 90-300V AC | 90-300V AC | 90-300V AC |
| Power Factor | 0.95 | 0.95 | 0.95 | 0.95 |
| Luminous Efficiency | 100lm/w | 100lm/w | 100lm/w | 100lm/w |
| LuminousFlux(lm) | 700 | 1600 | 2400 | 3200 |
| Material | Die-casting Aluminum | |||
| Surface Treatment process | Powder Coating (white) | |||
| Other treatment process Optional | electrofacing , sliver, sand nickle, black , wood surface | |||
1. Payment: 30% deposit, 70% balance before shipment by T/T or Western Union.
2. Lead time: 3-15days for normal order, instant delivery from regular inventory.
3. Sample: can be delivered within three working days.
4. Shipping freights are quoted under your requests.
5. Shipping port: Guangzhou or Shenzhen China.
6. MOQ: 10 PCS.
7. Discounts are offered based on order quantities.
Q1: What are your drivers Power Factor?
A1: Our PF>0.95, normally are Shinelong brand TUV/UL listed drivers
Q2: What is your led chips? light effciency? CRI? CCT?
A2: Our chips are Epistar SMD4014 SMD2835, 80-100lm/w, CRI>80, CCT: 3000k 3500k 4000k 4500k 5000k 5500k 6000k 6500k
Q3: What about the life span and warranty of your panels?
A3: Lifespan is 30K-50K hours, our TUV-GS UL cUL DLC listed panels are 5 years warranty; Other functional panels are 3 years warranty.
Q4: What are functional panels?
A4: Such as dimmable panels, Emergency panels etc.
Q5: What kind of dimmable panels do you have?
A5: 0/1-10v dimmable panels, traic dimmable panels, cct dimmable panels.
Q6: Do you have OEM or ODM experience?
A6: Yes, we focusd on led lighting since 2005 and have lots of big cases. we have ability and will be happy to be your official supplier.
Q7: How should I contact you to start business?
A7: You can send enquiry to us, pls click "Send" now. Thank you very much.
Telephone: 0086-760-87601637
Mobile Phone: 18576003768
Address: 3F,8th Baijia Building,Caosan Industrial Area,Guzhen Town
Zip: 528421
Country/Region:China (Mainland)
Province/State:Guangdong
City:Zhongshan
If you do not mind, you can tell us the following information, you are factories, wholesalers, purchasing, dealers,
consumers or do engineering, design, or home. We can provide a detailed explanation to you. You will also patiently
answered every question. We have established a customer complaint side, if you are not satisfied with our service,
you can directly tell us via e-mail or telephone. We answer all questions for you.
