LAMP P10 Outdoor DIP Tri-color LED Screen

Specifications

LAMP P10 DIP led screen
1. Perfect image quality
2. High refresh rate
3. Unique structure design
4. Extreme viewing angle

LAMP P10 outdoor DIP tri-color LED screen  features



1. IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather condition.



2. Able to show a variety of content of video, animation, graphic and so on.



3. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon



4. Combining several global leading display board control technologies, such as grey level code technology, brightness control technology, and nonlinearly rectifying technology



LAMP’s outdoor advertising LED display product ranges from pixel 10mm to pixel 62.5mm,IP65 rated outdoor display products that deliver high-resolution full color images with unequalled brightness and contrast levels. The product ranges offer a modular outdoor display concept that allows the build-up of almost any shape and size display that is ideal for use at outdoor locations with large viewing distances.



System diagram

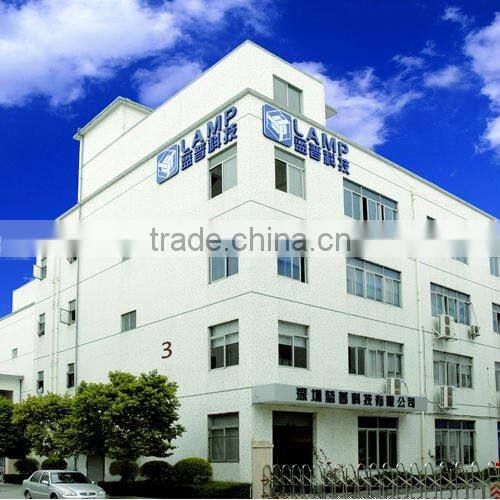

Shenzhen LAMP Technology co., LTD profile



Shenzhen LAMP Technology co., LTD has been recognized as one of the fastest growing and leading manufacturers in LED industry since its foundation in 2004 in Shenzhen, China. As a manufacturer and engineering contractor, LAMP provides standard display products as well as custom-designed systems for large screen video displays . The acquirement of the ISO9001:2008 Quality Control System and certificates such as ETL, CE, RoHs, etc, has guaranteed that LAMP runs under a strict and effective quality control system. Equipped with state-of-the-art equipment sourced from Germany and Japan, the newly established laboratory has also enhanced our quality test to a higher level.



We clearly understand that people need distinct solutions when facing different applications. With our rich engineering experience and solid R&D background, after years’ efforts, we are proud to be a turn-key solution provider for your business. As with advertising, we not only provide a reliable LED display, but also B/S based structure, user-friendly professional advertising software to ultimate your investment. Concerning rental and staging, we provide you with durable, easy-setup, uniquely designed products as well as high end video processing equipment. When it comes to sports display, we provide a full range of software and hardware to play advertising, show scores and live show. For more details, Contact us today!











Specification

Pixel Pitch:	10 mm
Pixel Density:	10000 pixels/sqm
Pixel Configuration:	1R1G1B
Module Dimension:	160*160 mm
Module Resolution:	16*16 pixels
Cabinets Dimension:	640*640 mm
Cabinets Resolution:	64*64 pixels
Brightness:	6800 cd/sqm
Best Viewing Distance:	> 10m
Average Consumption:	400 W/sqm
Max Consumption:	800 W/sqm
Viewing Angle:	Horizontal angle: 120 degree ;Vertical angle: 60 degree
Processing:	12 bit
Ingress Protection:	Front IP65; Rear IP54
Refresh Rate:	300 to   4800Hz
LED lifetime:	100,000 hours
Input Voltage:	90 to 260VAC, 50/60Hz
Operation Humidity:	10% to 99%



All product specifications are for reference only and subject to change without prior notice; Please contact sales for details



At the same time, we can design according to customer requirements and production.
