Stage Background Led Curtain Display Big Screen

Specifications

stage background led curtain display big screen
1. Rotatable structure
2. High transparency
3. high brightness
4. CE&RoHS

stage background led curtain display big screen



Seele Series

As a modular system of LED video panels which designed for the demanding rental and staging market & fixed installations, seele allows you to create your own video imaging design to set your staging apart from the ordinary.

A true IP65 protection rating, wide operating temperature range and high brightness enable the curtain to be used in most indoor & outdoor applications. Until now, seele series includes 18mm and 40mm for outdoor application, and a 6mm is in process.





Main Features:



1.Fast Assembly
Creative design on the connection structure which could be installed fast and easily without tools. And the assembly or disassembly of single module is applicable for any position on the display.



2.Rotated Stucture
Ventilative module which can be rotated to and fro.



3.Fan-less
A fan-less design to meet all kinds of quiet occasions.



4.High Power Efficiency
A high efficiency power supply with 83% power efficiency which saves 10% more than normal display.





 Specification:



Visual Parameter
Pixel Pitch:	18.75mm
Pixel Density:	2,844 pixels/sqm
Pixel Configuration:	SMD5050

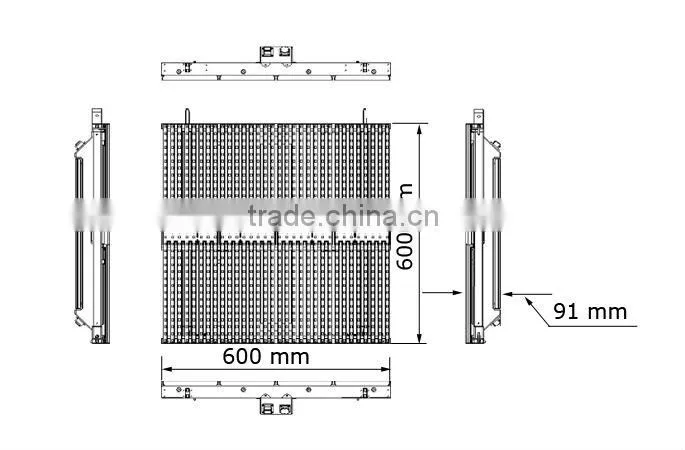

Cabinets Dimension:	600*600*91 mm
Cabinets Resolution:	32*32 pixels
Performance Parameter
Brightness:	5,000 cd/sqm
Best Viewing Distance:	> 20m
Max Consumption:	200 W/cabinet
Weight:	8 kg/unit
Viewing Angle:	Horizontal angle: 140 degree Vertical angle: 140 degree
Gray Scale Level:	16 bit
Refresh Rate:	1,600Hz
Rotation Angle:	-15°~ +15°
Scan Mode:	Static
Material:	Aluminum alloy
LED Lifetime:	50,000 hours
Environment Parameter
Temperature Range:	-20~60°C
Operation Humidity:	10%~99%
Ingress Protection:	IP65
Control Parameter
Control System:	LINSN
Control Distance:	100m via CAT05/Maximum 10km via Fiber Optic (Single mode)
Signal:	DVI up to UXGA, SDI, HD-SDI, S-video, compositem, YUV

 All product specifications are for reference only and subject to change without prior notice;

 Please contact sales for details;



 Product News:

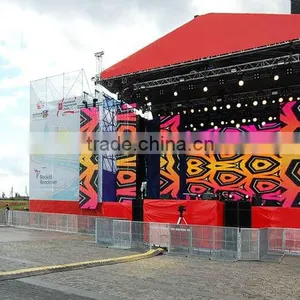

Seele Series 18.75mm in Russia



Product: Seele 18.75mm  560PCS

Installation time: 2012

Location: Russia









About Us





Products Equipment:



Shenzhen LAMP Technology Co. Ltd is equipped with a series of first-class machines for LED lamps and LED displays, such as auto-die machine, auto rank machine, silicon feeding machine, reflow soldering machine, testing equipment, wave soldering auto-line, SMT auto-line and so on. We also have separate R&D center, new-product lab, wave soldering workshop, SMT workshop, LED binding workshop and LED module workshop, which guarantee our best quality control from LED lamps to LED display.







               Auto-die bonding Machine                                    Auto-wire bonding Machine

                        Wave Soldering Auto-line                                                             Auto-ranking Machine

                          Auto-casting Machine                                                   High & Low Temperature Testing Cell

                               SMT Auto-line







After-sale service



1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance

     manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.
