CL-22D China Supplier Single Multi-Function Tire Wire Drawing Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Inlet Diameter:	1.2mm-0.8mm	Outlet Diameter:	0.4mm-0.2mm
Place of Origin:	Jiangsu, China	Brand Name:	Xiangle	Model Number:	CL-22D
Voltage:	380V	Power(W):	7.5KW	Dimension(LWH):	2300m11502000
Weight:	1.6T	Certification:	ISO9001	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

CL-22D China Supplier Single Multi-Function Tire Wire Drawing Machine

Product Description

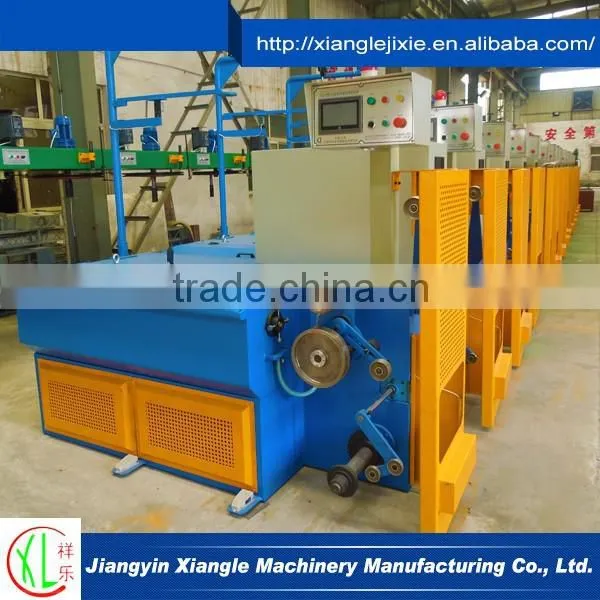

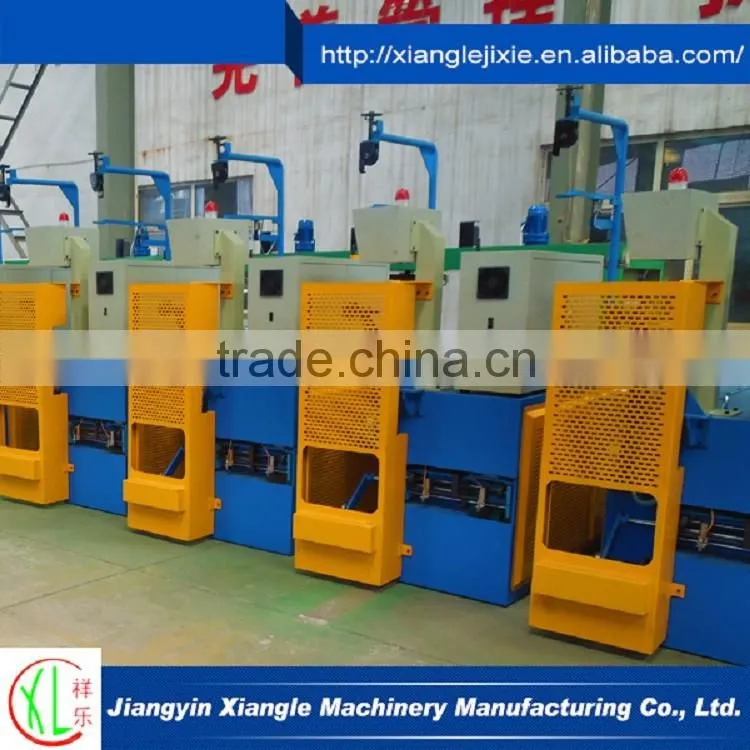

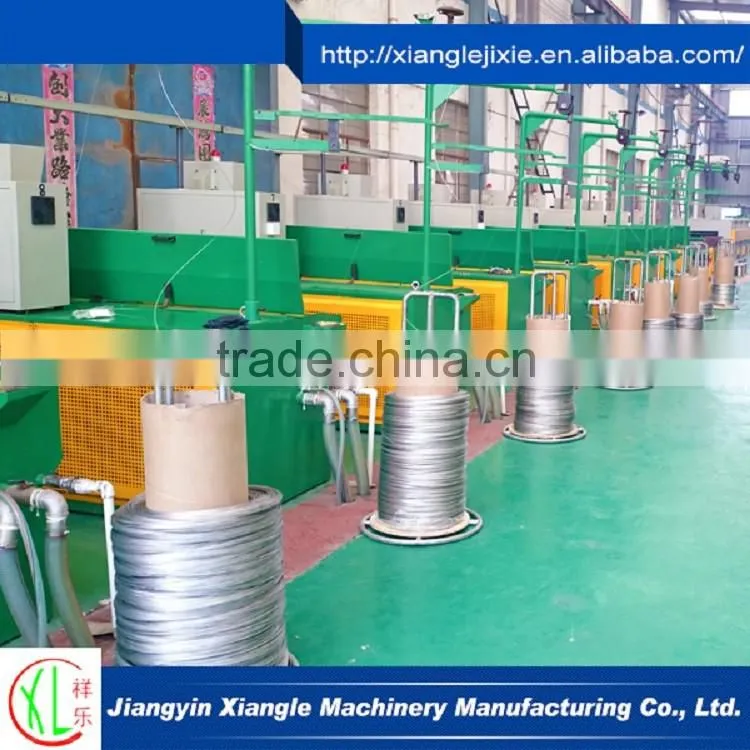

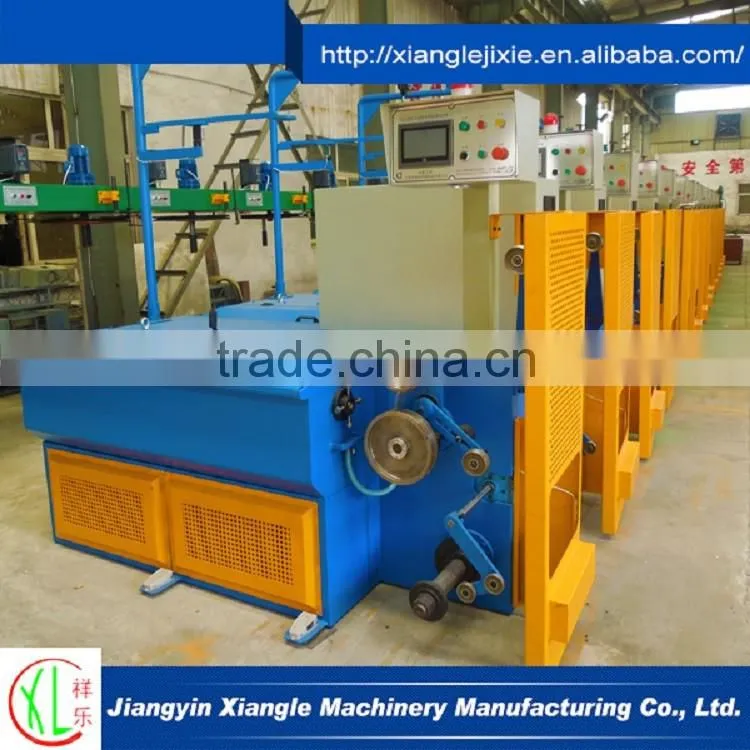

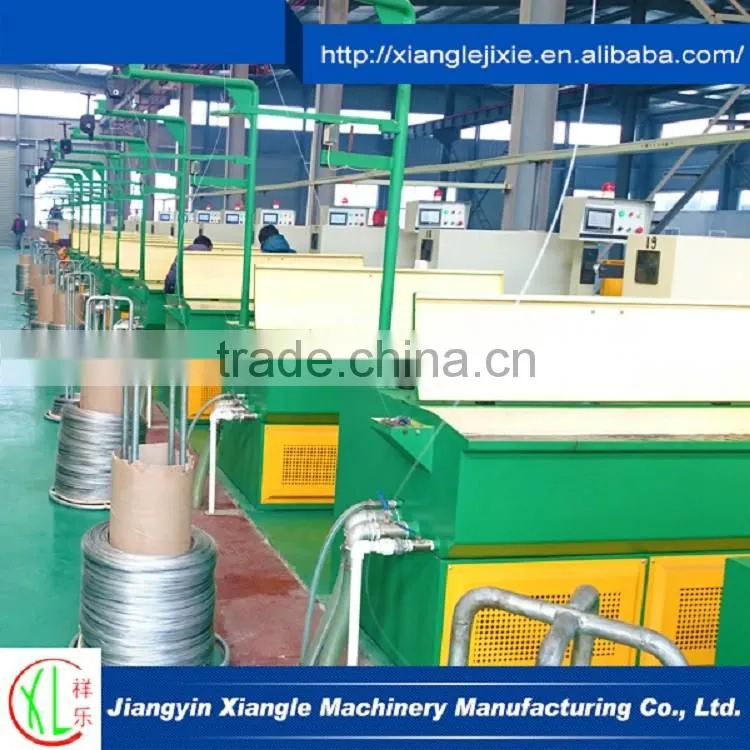

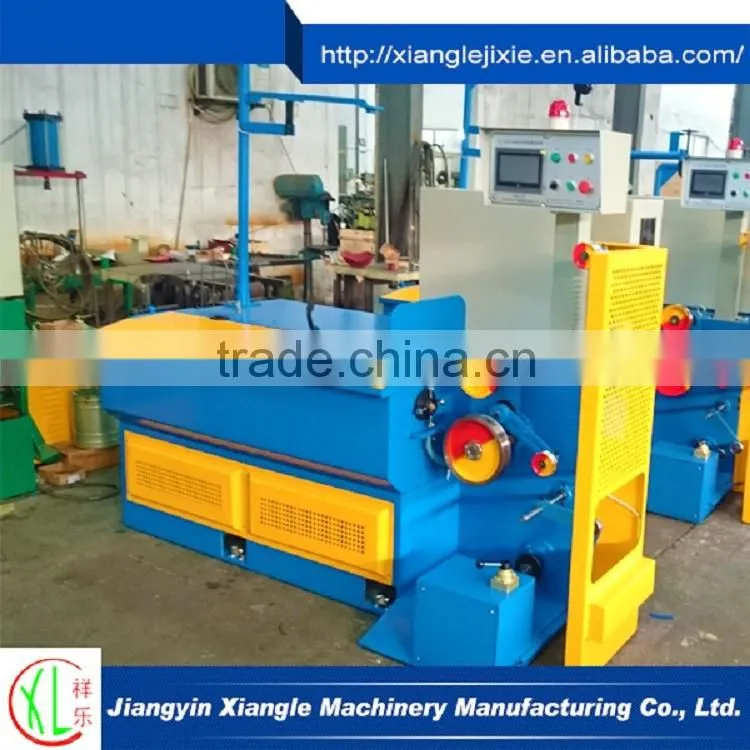

Equipment Pictures

Technical Parameters

Inlet	1.2mm-0.8mm
Outlet	0.4mm-0.2mm
Max Modules	22
Mechanical Reduction	15.60%
Drawing Method	Horizontal Two-step Pulleys Type
Max Line Speed	600m/min
Control System	PLC Dual Frequency Conversion
Drawing Capstan	Mold Steel Vacuum Annealing Treatment
Main Motor's Power	7.5KW
Take-up Machine's Power	1.5KW
Driving Method	Synchronizing Sheel,Synchronizing Belt, Flat Belt
Drawing Lubrication Method	Modules, Step Pulley By Full Immersion
Braking Method	Electronmagnetic Brake

Product Advantages

1. Low cost;

2. Energy efficiency;

3. Stable and reliable performance;

4. Cleaner Production.

The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel

equipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,

Vietnamese, India and other countries.
