Three Phase High Efficiency Aluminum cast Induction Motor

WEA series three phase asynchronous motor is high efficiency motors with aluminum housing. It is WONDER-designed high efficiency motors with product features as compact size, less weight and outstanding appearance. Its efficiency indicators are in line with IE2.

           Characteristics for all WONDER standard 3-Phase asynchronous motors

           ·Widely applied in general machinery and industries such as pumps & water
            treatment, road machinery, petroleum, chemical, metallurgy,
           cement and paper-milling.
          ·IP55 protection, Class F insulation, B Temperature rise, S1 duty,
          ·Rated voltage 400V, Rated frequency 50Hz.
          ·Operation conditions: ambient temperature:-20℃~40℃, altitude≤1000m.
          ·Y-connection for motors up to 3kW and -connection for 4kW and above
          ·Cooling method is Ic411.

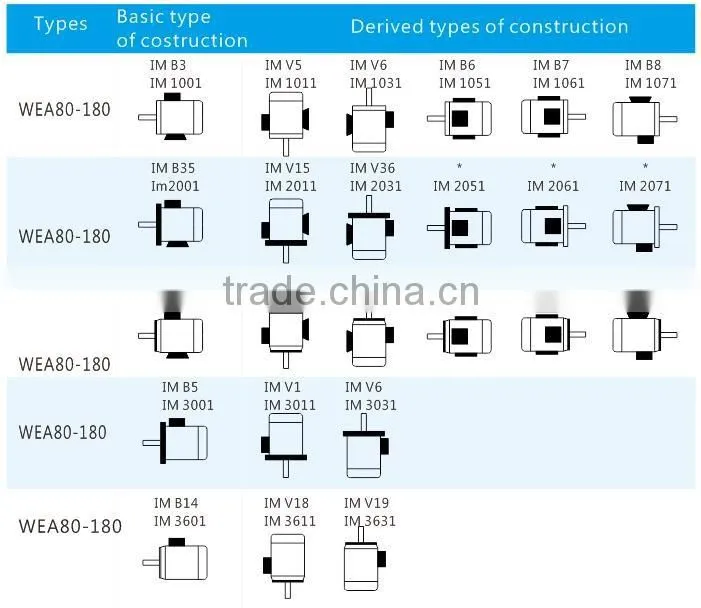

         MOUNTING ARRANGEMENTS

                              basic types of construction may be used in all derived types of constructon

                              (*)not-defined mounting by IEC 60034-7

                              1) for the types of construction IM V3,IM B6,IM B8 inquiry is necessary.
