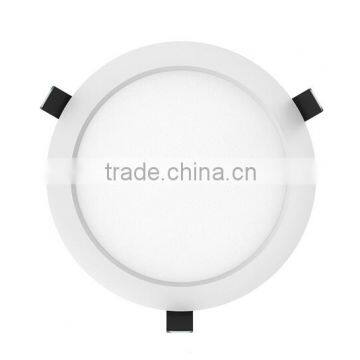

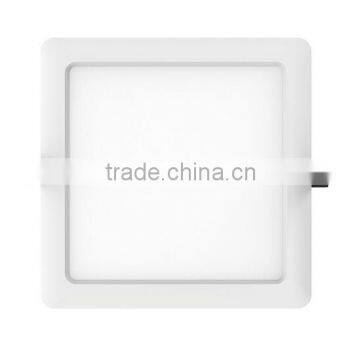

LED SMALL PANEL LIGHT RECESSED TYPE Watt:3/4/6/9/12/15/18/20/22/24W,ROUND SHAPE /SQUARE SHAPE
- 0 per Month
- T/T
- BD series LED anti-explosion street light100W
- LED Slim Panel Ecomax stress free ambient light for office,school and shopping more
- LED Highbay IP65 Protection rating for warehoure, industrial and station
- LED POST TOP retrofit /LED light / LED retrofit light / LED POST TOP light/C21TL-AE POST TOP
- LED Explosion-proof Gas station lamp 75W
- LED Road light/LED Cobra head /LED Street light - Replaceable LED light engine for easy replacement and maintenance
Product Details
Lamp Power(W): | 18 | Color Temperature(CCT): | Other | Working Lifetime(Hour): | 50000 |
Certification: | CE, SAA, UL | Place of Origin: | China | Brand Name: | OEM |
Model Number: | Led panel |
Product Description
Description of LED Small Panel Light
Voltage:AC85-265V 50/60HZ
PF 0.5/0.9
Watt:3/4/6/9/12/15/18/20/22/24W
2-3 years warranty
CRI :RA>70,RA>80,RA>90
CCT;3000-3500K,4000-4500K,6000-6500K
General Description:
LED panel light is a well-designed using aerometal,simple and fashionable.It has an outstanding luminous efficacy with an ultra thickness. Utilizing constant current driver, no flicker,no glare with soft and uniform light emitting. High luminous flux and brightness,environment protection, low power consumption and energy saving, long lifespan 50,000 hrs.
Features of LED PANEL LIGHT
Energy saved up to 70%, high intensit, very good dimmable performance!
New inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.
Special circuit design, each LED can work separately thus it can avoid theinfluence that a broken LED causes.
It is powered by low voltage constant current driver, which is safety, energy-saving and long life.
Excellent thermal management can effectively guarantee the LED's long-term stability. The front panel board is high translucent acrylic, which ensures the light even, soft and high transmittance.
UL, TUV, SAA, CE etc approval Driver
Details for led panel light
Item name | Led panel 18w led panel light |
Item No. | CNBM26PSR18W |
LED Type | 2835MD |
Lumes | 90-100lm/w |
LED lumen | SM LED |
LED brand | Epistar of Equivalent |
Input Voltage | 95-265VAC |
Beam Angle | 120° |
Dimension | Dia.225mm |
Open hole | Dia.210mm |
Housing Materail | Aluminum |
Housing color | White,sliver |
Storage Temperature | -40 ~ 80°C |
Operating Temperature | -20 ~ 60°C |
Humidity: | 10%~90% |
Certificate | CE ROHS |
Life Span | >50000 hours |
Warranty | 2 years warranty |
Packge | standard package is white box/neutral color box, customized color label/color box will need some charge |
Delivery time | samples: 3-5 days 100-1000pcs: 5-9 days 1001-3000pcs: 9-15 days 3001-10000pcs:15-25days >10000pcs: 30-45 days |
FAQ
1.What are your market reach throughout the region?
Our markets around the world in every corner, we have ten years of experience in foreign trade and have worked with our customers in every contry buyers,producers and distributors to reach more than 30,000.
2.What is your main product line?
We mainly produce LED application products and industrial lighting fixture,inlucding daily life indoor lighting and outdoor lighting.
3.You have the ability to do independent research and development?
Our engineering department has 5 people, we have the research and development capabilities. We also collect regularly each customer feedback, product improvement and new product development. We also hold the new product launches.
4.If I have a question how to contact you for advise?
You can sns platform or directly through major inquiry and send email to consult us.
5.What service will you provide?
If you don't mind, you can tell us the following information,you are factories, wholesalers,purchasing, dealers,consumers or do engineering, design or home, we can provide the detailed explaination to you.
