Quick Details
| Item Type: | Explosion-proof Lights | Light Source: | Induction Lamps | Input Voltage(V): | 220 |
| Lamp Power(W): | 100 | Lamp Luminous Flux(lm): | 13000 | Lamp Luminous Efficiency(lm/w): | 130 |
| CRI (Ra>): | 85 | Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20 - 40 |
| Working Lifetime(Hour): | 60000 | IP Rating: | IP67 | Certification: | CCC, CQC |
| Lamp Body Material: | Aluminum Alloy | Base Type: | E27 | Place of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | ACCEL, ACCEL(Professional WF2 IP66 Explosion proof Street lamp fixture) | Model Number: | BAT55 | Protection grade: | IP67,IP66 |
| Certificate: | Chinese certificate CCC | Type: | explosion proof LED floodlight | Warranty: | 2 Years Under Normal |
| Anti-corrosion: | WF1 WF2 | Hazardous area: | Zone 1, 2, zone20, 21, 22 | Rated voltage: | AC220V DC24-36 |
| Inlet thread: | G3/4" | Rated power: | 50W,60W,72W,85W,100W,120W,130W,140W |
Packaging & Delivery
| Packaging Details: | Standard Export Packing for Professional WF2 IP66 Explosion proof LED Street lamp lighting fixture |
| Delivery Detail: | depend on the quantity. |

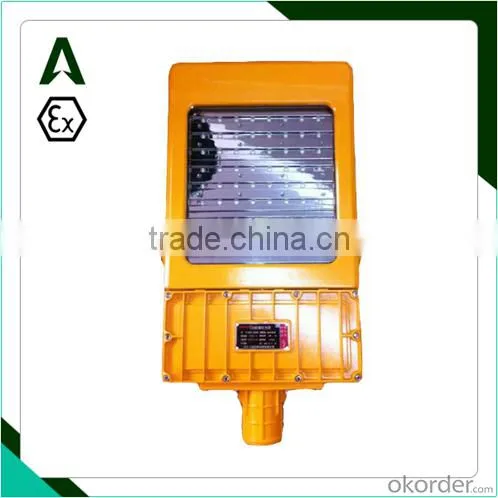

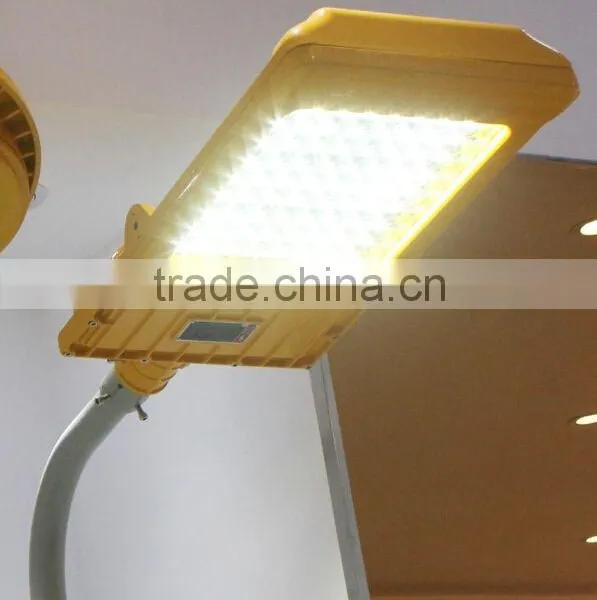

Professional WF2 IP66 Explosion proof LED Street lamp lighting fixture
Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.
3. Lamp options: high light LED.
4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
5.Aluminum alloy enclosure.
6.light angle adujustable according to users request,horizontal or vertical installation.
Model | Lamp | Mounting types | anti-corrosion grade | Ex-mark |
BAT55 | LED | ceilling type pendant type | WF1 WF2 | Exde II BT6/CT6 Gb DIP A21 TA,T6 |
Product Details
APPlications:
Suitable for explosive gas environment Zone1 and Zone2.
Suitable for IIA,IIB explosive gas environment.
Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
Can be used in the environment of temperature group for T1~T4.
Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
Ex-proof Mark:Exed II BT6/CT6 Gb, DIP A21 TA, T6.
Rated voltage: AC220V, DC24-36
Ligting Source: LED
Rated power: 50W,60W,72W,85W,100W,110W,120W,130W,140W
Protection grade:IP66,IP67
Corrosion-proof grade:WF2,WF1
Inlet Thread: G3/4" Professional WF2 IP66 Explosion proof Street LED lamp lighting fixture
Cable outer dia:9mm~14mm
Product Features:
Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
High impact resistance tempered glass cover, stainless steel exposed fasteners.
Seal gasket is made of heat resistant and anti-aging slicone rubber, with good features of water and dust proof. Professional WF2 IP66 Explosion proof Street LED lamp lighting fixture
Cabinets of light source, electrical and connection are separated wjocj effectively decreases the temperature increasing in cabinets of light source and electric, and ensure the longtime working life. More convenient and safe in installation and maintenance.
Reasonable LEDs layout, high efficiency and energy saving, luminous factor≥120lm/W, color rendering index ≥80, extra long lifetime >50000 hours, maintenance for long time; green product without pollution.
Double optical design, patented reflector, high efficiency and even illumination.
Wide input voltage range 150~260V(or DC24/36V), constantpower output, constant output power, power factor ≥0.98, with instant voltage, over current, open circuit, short circuit and surge protection etc.Professional WF2 IP66 Explosion proof Street LED lamp lighting fixture
Good color rendering, cold white, nature light, warm white available for different request, look more comfortable and improve the efficiency.
Light angle adjustable according to users request, horizontal or vertical installation.
Steel conduit or cable wirings.

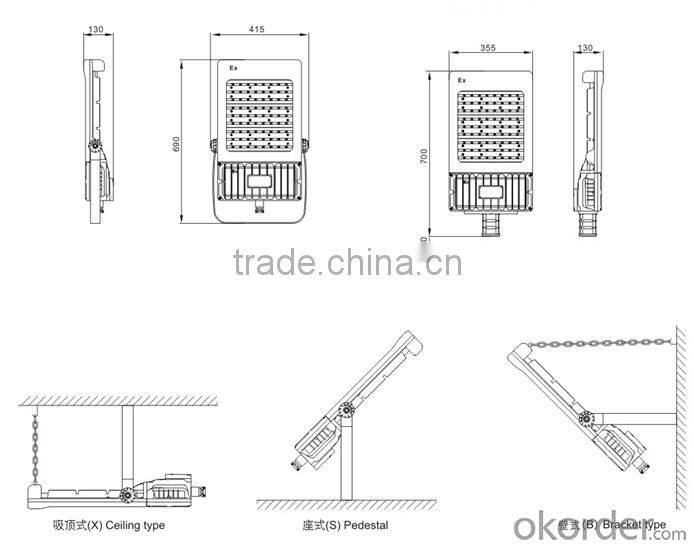

Mounting type :
