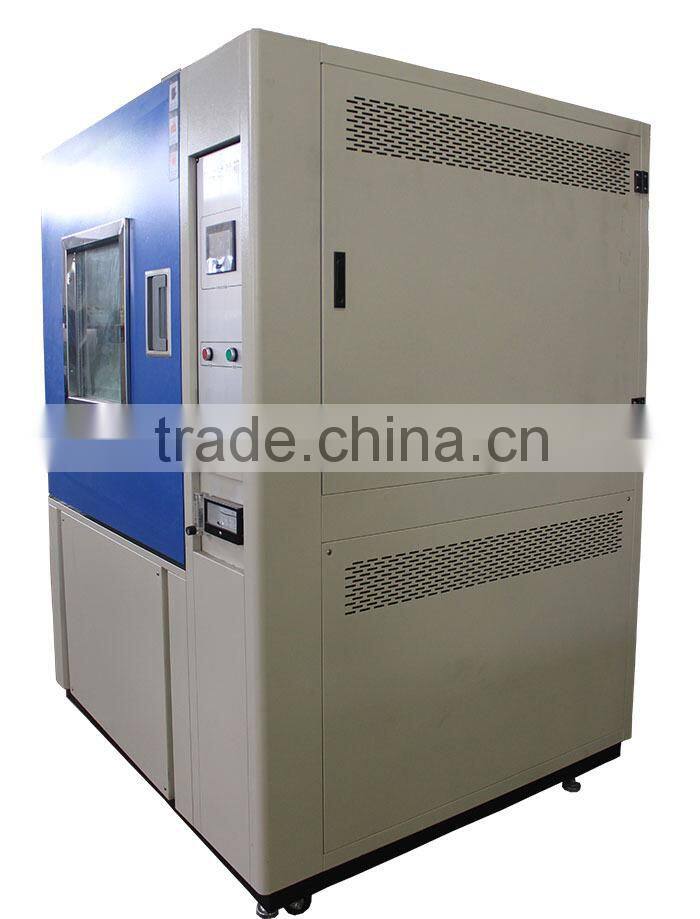

Blowing sand and dust test chamber

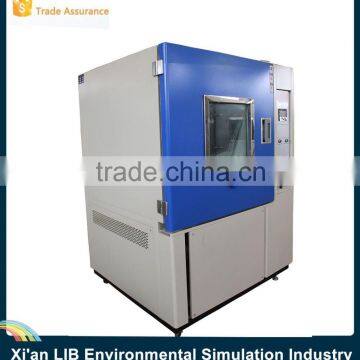

Blowing sand and dust test chamber

Standard Features

• Test area size is 800*1000*1000mm D*W*H
• Interior material is SUS304 stainless steel
• Exterior material is Steel Plate with protective coating, color is blue
• Dust is blown in test area by air motor
• Dust re-cycle blowing by circulating pump
• A heater fixed into test chamber to keep dust dry
• Wiper is fitted to view window, window size is 35*45cm
• Silicon seal for door
• Programmable color display touch screen controller which located on right side of chamber
• A stainless steel shelf is fixed above the sieve and funnel
• Chamber inside equipped with power interface for test specimen
• Bottom of chamber is fitted with circulating pump, vacuum pump, motor
• Temperature sensor PT-100
• Safety protection
• Guarantee a long service lifetime
• Easy to operate on control panel
• 380V, 50Hz
• Standard: IEC60529

Design and Construction

Test area and shelf

Test area is made of stainless-steel.

A stainless steel shelf is fixed above the sieve and funnel, you can put test specimen on it.

Standard load of shelf is 50kg (If need greater load, confirm in advance).

Chamber inside equipped with power interface for test specimen.

Normal wire diameter is 50 um;Normal width of a gap between wires is 75um.

75um Sieve

Control Panel

5.7" programmable color touch display controller

99 programs 99 sections

R-232 interface PC Link with software

Show total process time on controller.

Dust circulation

During test, dust is blown in test area by air motor, and then fall in funnel, and re-cycle blowing by

circulating pump to achieve dust circulation test.

Bottom of chamber is fitted with circulating pump, vacuum pump, motor.

Vacuum system

Some test specimens need to be vacuum.

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge,air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Technical Parameters

Note: Chamber size can be customized according to customer request. We have experience of producing and installing walk in dust chamber.
