Electronic Computer Cables

FOB Price

USD $0.2 - $26.9 / Meter

500 Meters(Min.Order)

Supply Ability 500 Kilogram / Kilograms per Month
Port Guangzhou or according to your requirement
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	Hengfei
Model Number	DJYPVP	Conductor Material	Copper
Insulation Material	PE	Jacket	PVC
Number of Conductors	Single core or multi-core	Application	computer,network

Product Description

Specifications

1.Standard:IEC60889
2.Certificate:CQC ,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample

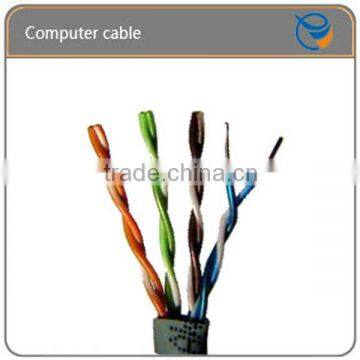

Electronic Computer Cables

Application

This series of cable is applied to rated voltage 500V and below,can be used as the connection lines of the computers and automatic equipment which have higher requirement for the anti-jamming. The core of the cable used low density polyethylene which has perfect chemical stability.PE with high insulation resistance, good voltage rsistance,small dielectric coefficient and little influence on dieletric loss from the effects of temperature and frequency,not only can meet the performance quirements,but also ensur the life of cable.

Construction

1. Conductor 2.Insulation 3.Tape
4.Braid shield 5.Sheath

Technical data

Rated voltage: 0.6/1KV

Highest long working temperature of conductor: 70°C

Laying temperature:above -15°C

Minimum bending radius:12D

Product description

Type	Descfiption	Application
DJYPVP	PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer cable	Fixed installation indoor, in cable trench or in the pipenline
DJPY2VP2	PE insulation pair group copper tape separate shield and general shield PVC sheath computer cable
DJYP3VP3	PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer cable
DJYVPR	PE insulation pair group copper wire braided general shield PVC sheath computer flexible cable	Applied to the need of frequently move or soft area
DJYVP2R	PE insulation pair group copper tape general shield PVC sheath computer flexible cable
DJYVP3R	PE insulation pair group aluminum/plastic composite tape general shield PVC sheath computer flexible cable
DJYPVR	PE insulation pair group copper wire braided separate shield PVC sheath computer flexible cable
DJYP2VR	PE insulation pair group copper tape separate shield PVC sheath computer flexible cable
DJYP3VR	PE insulation pair group aluminum/plastic composite tape separate shield PVC sheath computer flexible cable	Applied to the need of frequently move or soft area
DJYPVPR	PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer flexible cable
DJYP2VP2R	PE insulation pair group copper tape braided separate shield and general shield PVC sheath computer flexible cable
DJYP3VP3R	PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer flexible cable
DJYVP22	PE insulation pair group copper wire braided general shield steel tape armoured PVC sheath computer cable	Directly buried
DJYVP2-22	PE insulation pair group copper tape general shield steel tape armoured PVC sheath computer cable
DJYVP3-22	PE insulation pair group aluminum plastic composite tape general shield steel tape armoured PVC sheath computer cable
DJYPVP22	PE insulation pair group copper wire braided separate shield and general shield steel tape armoured PVC sheath computer cable
DJYP2VP2-22	PE insulation pair group copper tape separate shield and general shield steel tape armoured PVC sheath computer cable
DJYP2VP3-22	PE insulation pair group aluminum/plastic composite tape separate shield and general shield steel tape armoured PVC sheath computer cable
