PE Insulation Armored Power Cables
USD $0.3 - $15.3
/ Meter
500 Meters(Min.Order)
- 500 Kilometer / Kilometers per Month
- Guangzhou or according to your requirement
- T/T
You May Like
-
HMWPE Cathodic Protectectiong Cable
-
High Molecular Weight Polyethylene HMWPE Cable
-
HMWPE PVDF cathodic protectiong Cable
-
0.6/1kV cathodic protectiong Cable
-
Copper conductor PVC/XLPE insulation PVC sheathed power cable
-
Copper core (Aluminum core) XLPE insulation and PVC sheath power cable or steel tape armoured power cable
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | WDZ-YJV,WDZ-YJY | Conductor Material | Copper | |
| Insulation Material | Rubber | Jacket | Other, PVC or PE | |
| Number of Conductors | Single core or multi-core | Application | power plant |
Product Description
Specifications
1.Standard:IEC605022.Certificate:CQC,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
PE Insulation Armored Power Cables
Application
XLPE insulation electric power cable has excellent electrical properties and chemical stability.With simple structure and easy to use, it is suitable for fixed laying AC 50HZ,rated voltage 1kV and below in transmission and distribution lines.Five-core power cable is needed to adapt to the development of distribution system and safety performance,the neutral wire in low voltage distribution systems with the zero line separating the system to run more stable,and ensure the safety of staff.
Technical data
Rated voltage 0.6/1KV
Highest working temperature of conductor 70°C
Minimum bending radius 12D
Product description
| Type | Description | Application | |
| Cu | Al | ||
| YJV | YJLV | Copper-core(aluminum core)XLPE insulation and PVC sheath power cable | For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces |
| YJY | YJLY | Copper-core(aluminum core)XLPE insulation and PE sheath power cable | |
| YJV22 | YJLV22 | Copper-core(aluminum core)XLPE insulation steel tape armoured PVC sheath power cable | For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces |
| YJV23 | YJLV23 | Copper-core(aluminum core)XLPE insulation steel tape armoured PE sheath power cable | |
| YJV32 | YJLV32 | Copper-core(aluminum core)XLPE insulation steel wire armoured PVC sheath power cable | For laying in water or ground along route with large difference of level,can able to bear external mechanical forces |
| YJV33 | YJLV33 | Copper-core(aluminum core)XLPE insulation steel wire armoured PE sheath power cable | |
| YJV42 | YJLV42 | Copper-core(aluminum core)XLPE insulation thick wire armoured PVC sheath power cable | |
| YJV43 | YJLV43 | Copper-core(aluminum core)XLPE insulation thick wire armoured PE sheath power cable | |

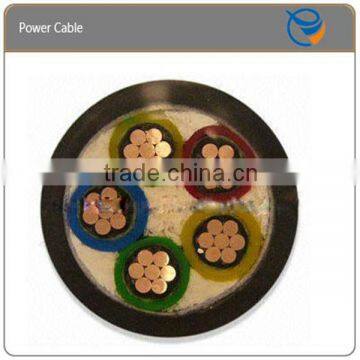

Construction
1.Conductor 2.Insulation 3.Inner sheath 4.Steel tape armoured
5.Steel wire armoured 6.Sheath
