Home > Products > New Products > Economical Vegetable Seeds Oil Press Machine YZYX90-2

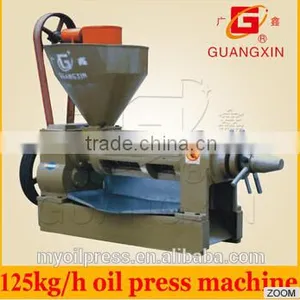

Economical Vegetable Seeds Oil Press Machine YZYX90-2
- 600 Piece / Pieces per Month
- Shanghai or Guangzhou or as customer's request
- T/T Credit Card PayPal
- cheap manual home use small oil press machine YZYX70 Quality Choice
- High purity spiral rapeseed oil press expeller made in China YZYX70-8
- Economical Maize embryo oil press YZYX95B
- 3.5 tons per day high output small srew oil press for production line YZYX10-2
- Economical high standard cottonseed oil press YZYX95C
- 145KGS/H capacity easy handle spiral oil press from Manufacture YZYX10-4
Product Details
Usage: | Peanut Oil | Type: | Other, Cold & Hot Pressing Machine | ||
Automatic Grade: | Semi-Automatic | Production Capacity: | 3tons/24hrs | Place of Origin: | Sichuan, China |
Brand Name: | GUANGXIN | Model Number: | YZYX90WK | Voltage: | 380V/50HZ |
Power(W): | 5.5kw | Dimension(L*W*H): | 1200*550*1000mm | Weight: | 285KG |
Certification: | ISO,SGS,TUV,BV,CQC | After-sales Service Provided: | No overseas service provided |
Product Description

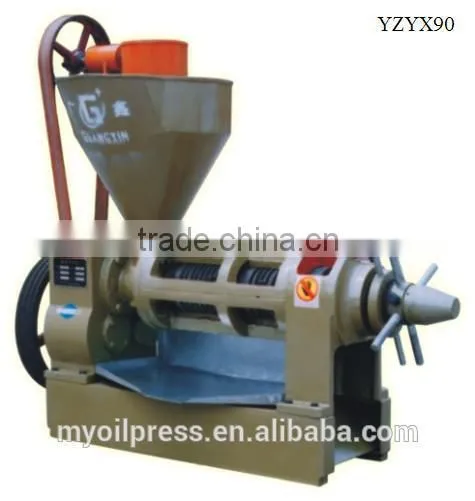

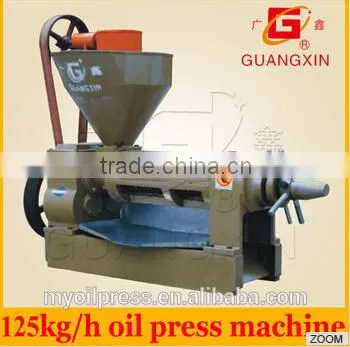

Economical Vegetable Seeds Oil Press Machine YZYX90-2
Model | YZYX90-2 |
Specifications | Processing Capacity: 3T/24H or 125KG/H Voltage: 380V/50HZ |
Features | 1. Physical squeezing craft, maximally keeps the nutrients in oil pressing force in the chamber |
Advantage | 1. Low investment, widely for most kinds of oil plant, can bring customers with good economy profit. compare to complete equipment 2. Easy operating, need 1 person equipment refined treatments to ensure more than 10 years using 5. Our company manufacture oil press machine over 30 years with own import and export right, ensure high quality and lower price 6. Long-term continuous work. if one machine stop to work, the others can continuous work without suspending whole machine compare to complete equipment |
Warranty | 1 year |
Standard accessories | Squeeze cage cover Drip pan Motor pulley Motor stand Triangle belt safety cover |
Operational extras | Motor Triangle belt |

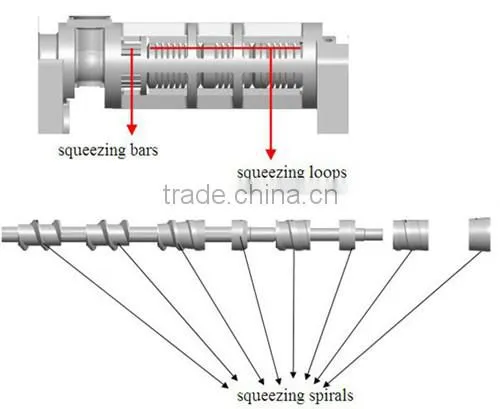

Wearing parts | Bars, Loops, Spirals |
Main Body |
Wearing parts | Replacement period |
Squeeze loop & loop of the cake out | Run for 24hs, should replace 2 months |
Squeeze spiral & spiral of the cake out | Run for 24hs, should replace 1 month |
The accessory in the deceleration part | 10000hs |
Payment infomation
1. MOQ: | 1 Piece |
2. Quote Category: | FOB/CIF/EXW/FCA/DAF |
3.Payment Method: | T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal |
4. Payment Terms: | 30% deposit and 70% balance before delivery by T/T |
5. Packaging Details: | Fumigated wooden packing, standard export packing, or as customer's request |
6. Delivery Time: | 20 days after payment received |
7. Port of Loading: | Shanghai or Guangzhou or as customer's request |
8. H.S. Code: | 84792000 |
9. Supply Capacity | 600 Pieces/Month |

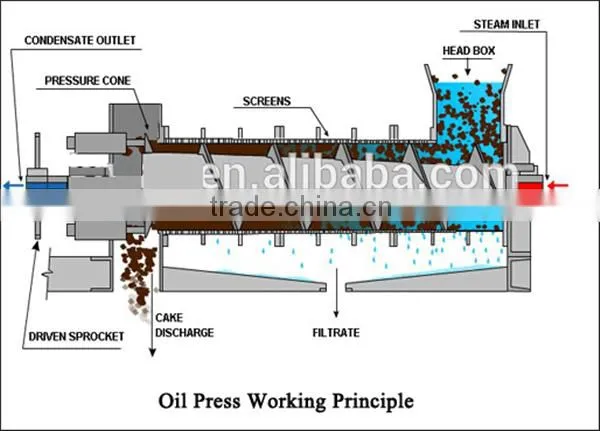

Working principle
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
2. Oil plants being carried toward to the end of the machine by rotating squeeze spirals.
3. With the space between spirals and loops becoming smaller,the pressure in the chest is bigger.
4. During this process, oil plants are smashed and the tissue cells are destroyed, then oil is separated from oil plants.
5. After extracted, oil plants turns to be cakes containing low oil and is discharged in thin slices from the end.

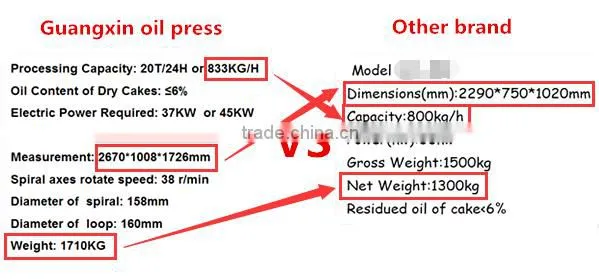

About the weight of our machine
For the same capacity,
our machine is heavier than other machine from different brands
(usually 1.5 times as heavy as other brands).
Both the better quality and more materials make our machine heavier.

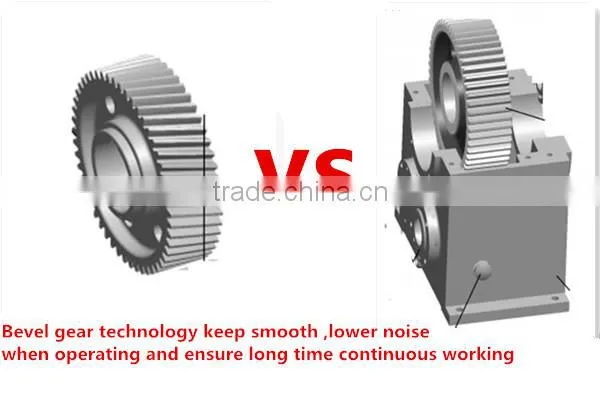

Why bevel gear?

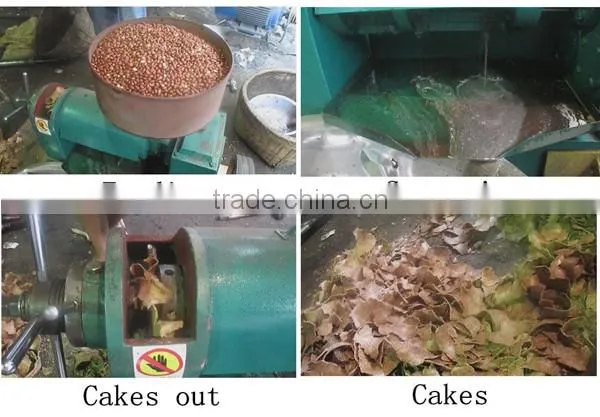

Operating flow

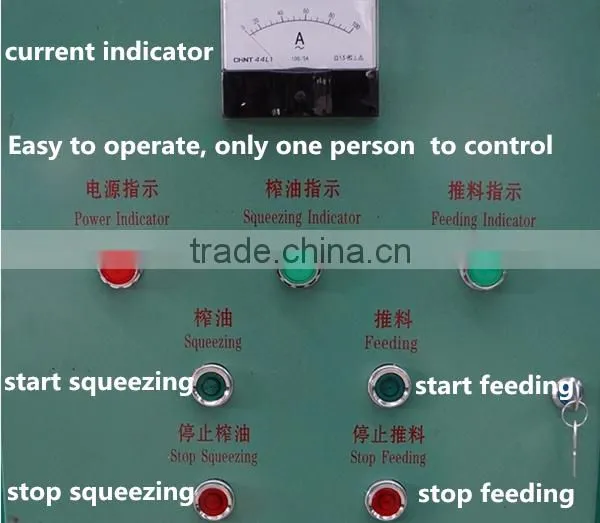

Electric cabinet

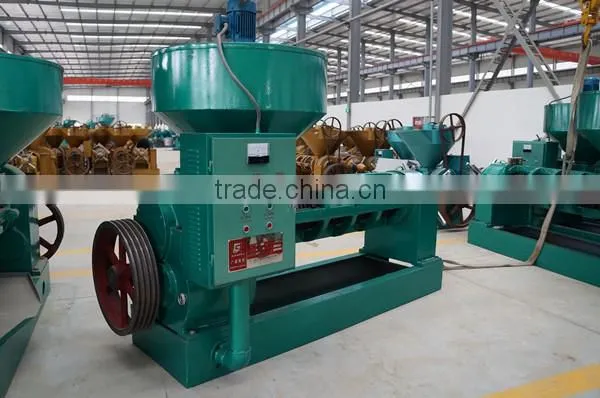

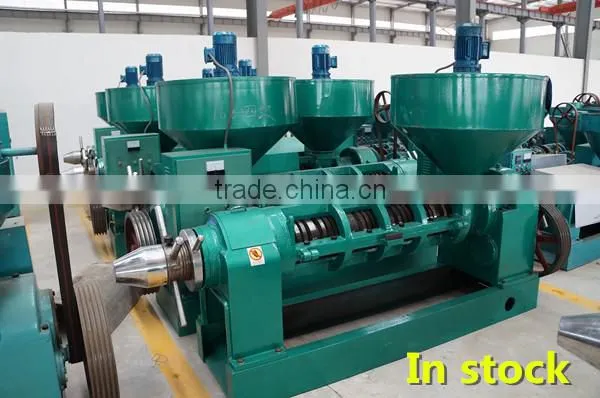

Picture of real product

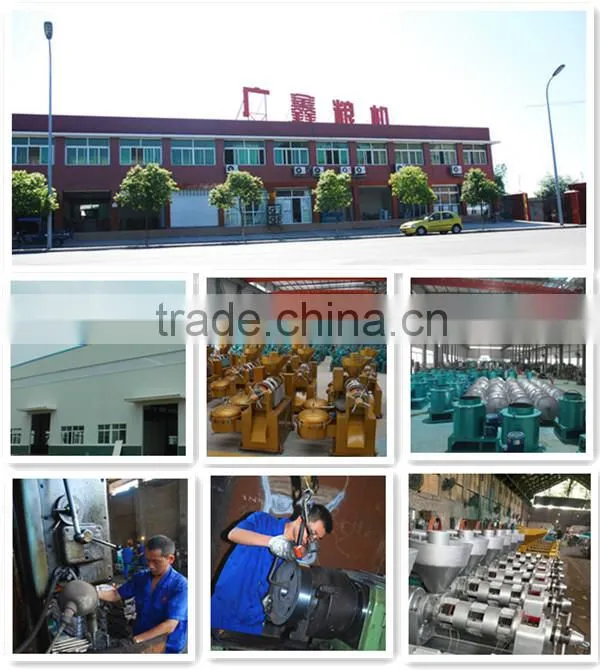

About Guangxin
Since 1980s
Specializing in oil press machine, oil filter, oil refinery equipment, oil residue separator.
Passed the ISO9001:2008 and SGS, TUV, BV, CQC
Export to more than 70 countries, including Europe and North America
Owned Guangxin Import & Export Co., Ltd and Oil and Grease Machinery Research Institute.
Every year, Guangxin will attend the biggest international fair held in China each Aprial and October Canton
Fair, meet new and regular purchasers. We also attended other professional fairs held in overseas.
Picture of 118# Canton Fair

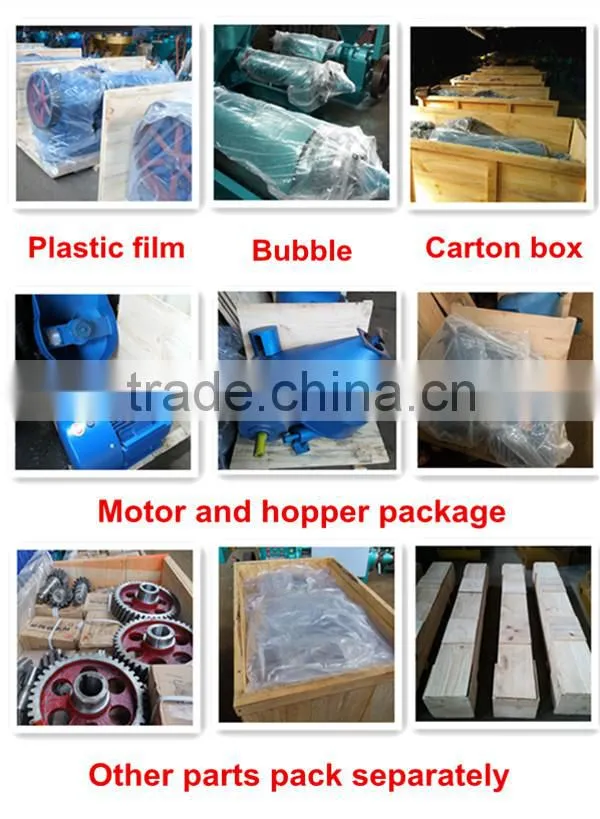

Container Load: 4pcs/20ft
Outer Packing: 1pc/ctn
Every Guangxin product is strongly packed by carton box with inner box bubble and
plastic film.
1. 1 year warranty
2. Supplying wearing parts all year around
3. Supplying technical solutions at any time
4. Helping design and plan the oil plant's construction
5. Providing installation video
6. Tried orders are available
7. Developing agents with good policies around world
Q: If I don't know how to operate this machine? How can I do?
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:Can i be a distributor of Guangxin oil press?
A: Of course you can.
Q:What are the benefits of being a Guangxin distributor?
A: - Special discount .
- Marketing protection.
- Supporting of marketing development
- Point to point technical supports and after sales services.
Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
