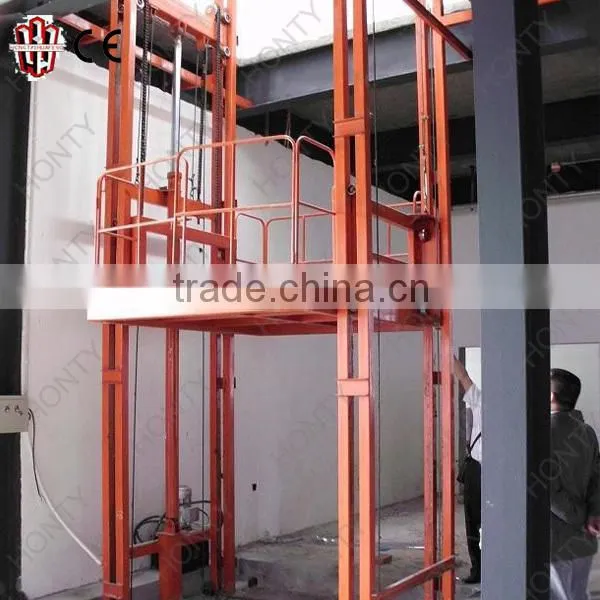

12m guide rail vertical cargo elevator

Specifications

.1.far-end control and multi-control points at the different floors
2.It can work under any condition
3.great load capacity

vertical cargo lift

Advantages

Hydraulic lifting system,the far-end control and multi-control points at the different floors could be realized hierarchical control.Stop anywhere at the preconcerted and accurate location point.It can work under any condition,great load capacity,safe and reliable.There are sensitive over load protection devices looking device for failing protection.

Applications

Stationary lead rail lift provides fast,efficient,convenient and safe access to balconies,basements,and any levels in multistoried building.it can be installed indoor and outdoor applications.

Availabilities

Lifting height:1.65-20m; load:0.1-1T(customer-made)

12 months from delivery apart from artificial damage.

Free lifelong technical service.

Product  performance

1. Equipped single side or double sides hydro cylinder to keep the machinery works smooth and steady with noiseless, it is convenient and long working life.
2. safe manual operation in case of black out,emergence stop can give protection when some urgency happened.
3. the pit should be 15-30cm,the height of the top is unlimited.
4. custom made according to the multistoried building.
5. imported and domestic pump is optional.
6. Hydro-cylinder and sealing element adopt imported parts.
7. Imported controlling system is optional(Schneider,Siemens,ect)

Safety

Hydraulic elevators not only have all safety device of the traditional elevator,but also have the special safety system hereinafter.

1. Spillover valve, it can prevent high pressure when the machine moves up.
2. Manual emergency valve,it can go down to the nearest floor and open the door when you meet an emergency.
3. Pipe fracture valve,when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.
4. Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standar.

The lower operating cost

1. Low failure rate,progressive and safe hydraulic system with good control mode.
2. Low power consumption,hydrahlic move down depend on the deadweight to gain energy conservation.

LRLseries	Load	Platform size	Lifting height	Non-work height	Dimension(m)	Pump station
LRL3-2.4	3T	2.0*2.0M	2.4M	660MM	2.0*2.0*0.66	4KW|380V
LRL2-5	2T	2.1*1.2M	5.0M	870MM	2.1*1.2*0.87	4KW|380V
LRL1-4.5	1T	2.1*1.5M	4.5M	800MM	2.1*1.5*0.80	3KW|380V
LRL5-6.5	5T	2.2*1.6M	6.5M	1280MM	2.2*1.6*1.28	5.5KW|380V
LRL3-6.5	3T	2.2*1.9M	6.5M	1520MM	2.2*1.9*1.52	5.5KW|380V
LRL**-N	Custom-made according to the requirement
