US$ 30 - 50
MOQ: 2 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Application:
Refractory
Thickness:
1-6mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port/shandong port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Excellent Stability Refractory Material Ceramic Fiber PaperUS$ 30 - 50MOQ: 2 Rolls -
Carton Packed Ceramic Fiber PaperUS$ 30 - 50MOQ: 2 Rolls
-
High Pure Ceramic Fiber PaperUS$ 30 - 50MOQ: 2 Rolls
-
Ceramic Fiber Paper for Heating InsulationUS$ 30 - 50MOQ: 2 Rolls
-
Heat Insulation Ceramic Fibre PaperUS$ 30 - 50MOQ: 2 Rolls
Place of Origin
Jiangsu, China
Application
Refractory
Thickness
1-6mm
Width
610/1220mm
Length
10000-60000mm
Grade
HP (High Pure)
Chemical Composition
Aluminium Oxide ,SILICA
Working Temperature
1260℃
Fiber Diameter
3-5um
Thermal Conductivity
0.11w/m.k (1000C)
Shrinkage (1800℉, 3h)
1%
Brand Name
CT 1260
Model Number
CeraTec/ Morgan
Specifications
1. Low thermal conductivity, low thermal capacity2. Low shot content
3. Good resistance to tearing, High flexibility
Ceramic Fiber Paper
Description
- CT ceramic fibre paper is manufactured from high purity ceramic fibre, adopt the wet inorganic ceramic fiber mechanization to implement a continuous production
- Advanced production techniques ensure uniform fibre distribution and close control of thickness and density
- ceramic fibre paper adds minimum addition of carefully selected bonds, which burn out cleanly in service
Feature
- Low thermal conductivity, low thermal capacity
- Low shot content
- Good resistance to tearing, High flexibility
- Do not contain asbestos, resistance to corrosion, not react to liquid aluminum
- Good electrical insulation and sound insulation performance
- excellent mechanical performance
Typical Applicant
- Industrial insulation, seal, protective materials
- Electric heat device insulation, heat insulation materials
- Molten metal gasket
- Instrument equipment, electric heating element of insulation and heat insulation materials
- Fire protection
- Thermal barriers for vehicles
- fillers of Expansion joints
Date sheet
Classification temperature (OC) | 1260 | 1430 | |
Density (kg/m3) | 200±15 | 200±15 | |
Organic content ( %) | 6-8 | 6-8 | |
Tensile strength kpa | 1mm ≥ 300; 2mm-6mm ≥ 400 | ||
Permanent linear shrinkage (OC *24h) | ≤3.5 (1000°C) | ≤3.5 (1200°C) | |
Thermal Conductivity (W/m.k) | 200OC | 0.075-0.085 | |
400OC | 0.115-0.121 | ||
600OC | 0.165-0.175 | ||
Chemical composition% | AL2O3 | 43 | 32 |
AL2O3+SIO2 | 98 |
| |
AL2O3+SIO2+ZrO2 |
| 99 | |
ZrO2 |
| 12 | |

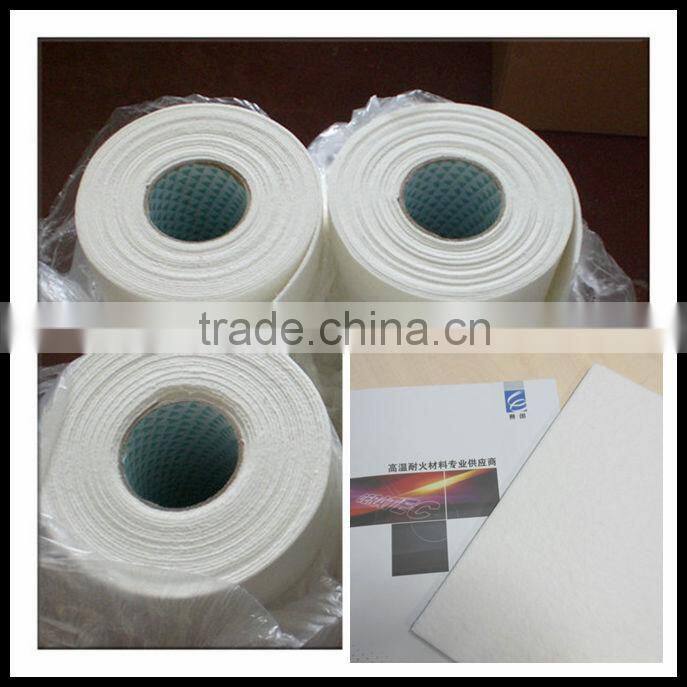

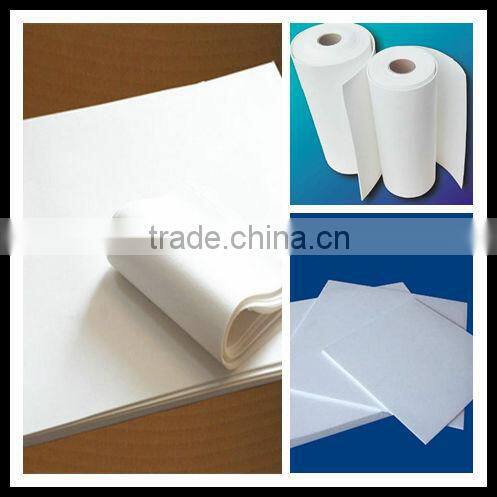

Product pictures
