Hydraulic Oil Cooler for Concrete Mixer Truck

2-3 weeks after drawing confirmed

Specifications

1.Thermal switch control fan working
2. Efficient,compact&easy installation hydraulic oil cooler
3.12V24V D.C. Fan contained

Pictures







Description

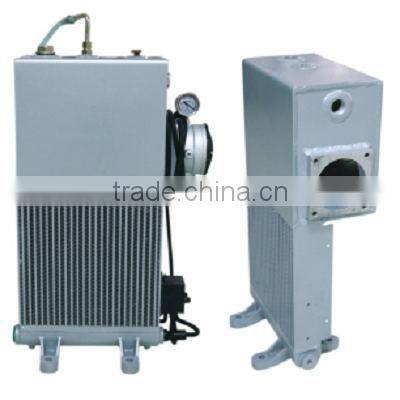

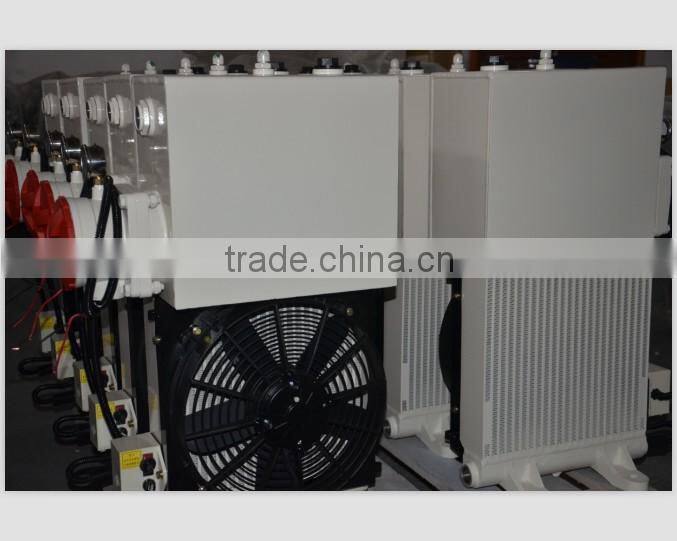

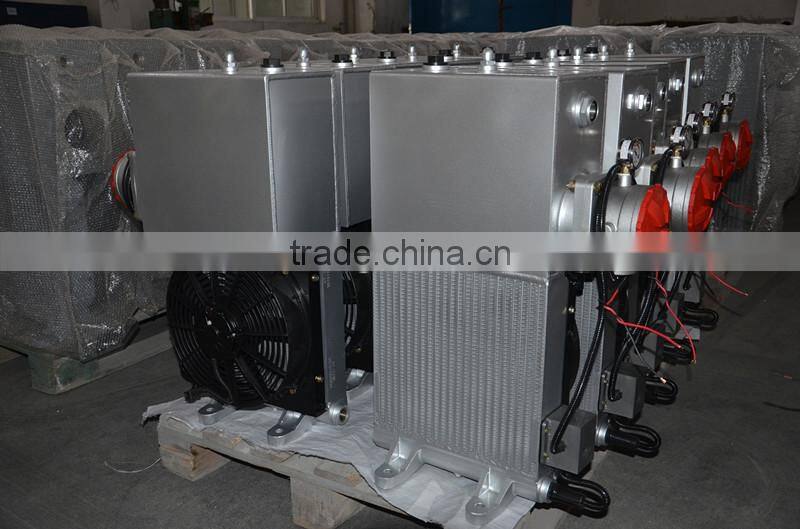

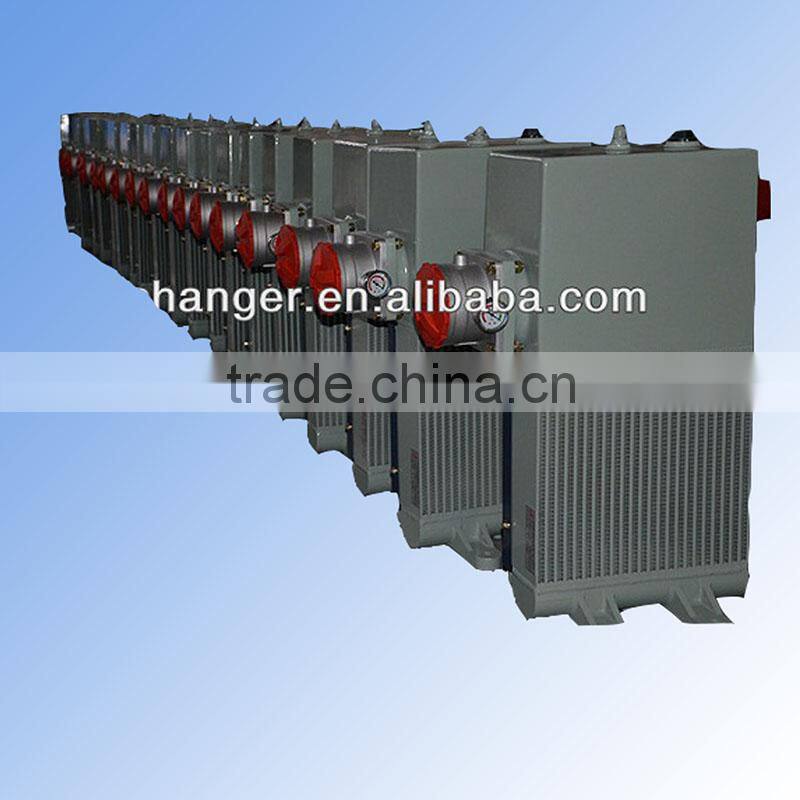

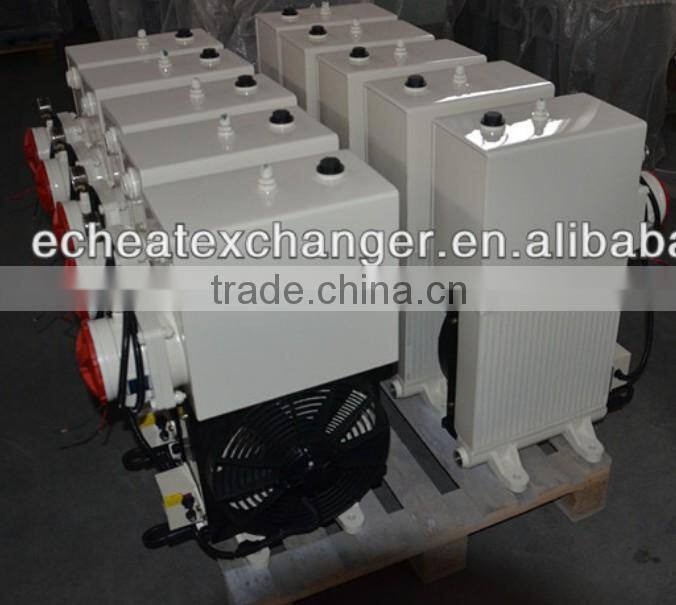

12V24V D.C. Fan Hydraulic Oil Cooler for  Concrete Mixer Truck

1.Aluminum plate and bar/fin transmission system concrete mixer hydraulic oil cooler

2. Powder coated durability and oxidation protection

3.Compact,light ,eficient,low pressure, fast delivery and attractive price

4.Built in tank 18/20/25L

5. Oil temperature control: 55- 60 centigrade

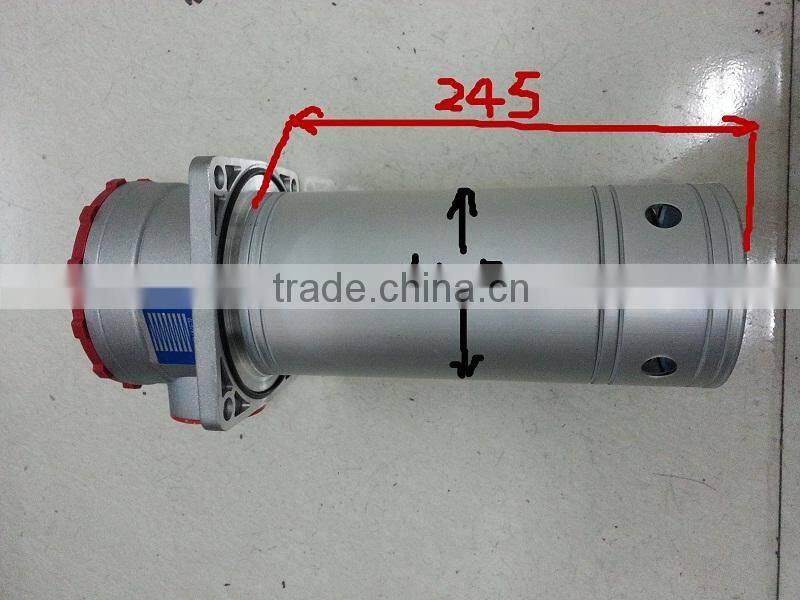

6. Suction oil filter with filter element & pressure guage

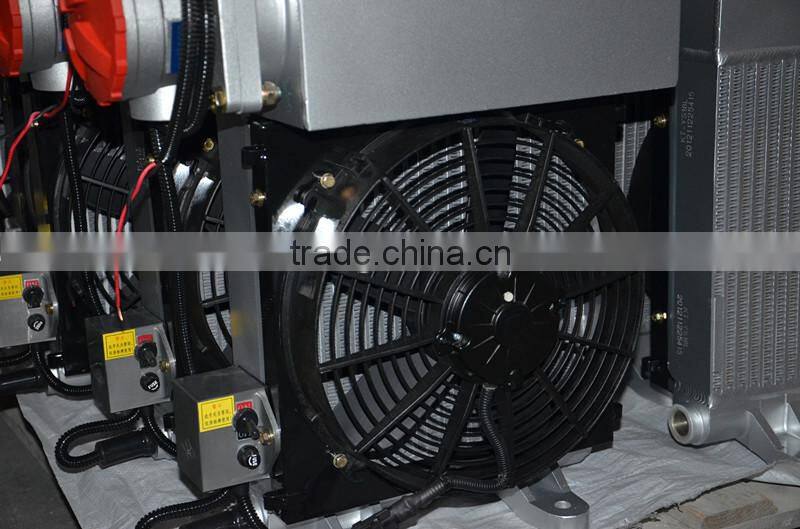

7.12/24v electric cooling fan with cable wiring

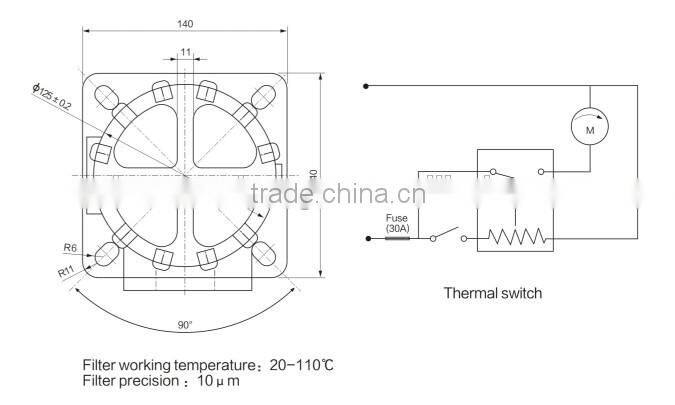

8.Thermo switch makes sure the fan work intermittent

9.Filter grid size is about 10 um,and clogged filter cartridges can be changed without refilling the hydraulic system

10.Easy installed on construction concrete mixer oil cooler

11.Transferred the heat from the fluid to the cooling air flow



Full types of fins



Fin Type	Pitch(mm/FPI)	G(mm)	H(mm)
Louvered Fin	2.5~5mm/10~20FPI	0.1~0.17	6.5~18
Wavy Fin	2.5~8mm/6~20FPI	0.1~0.35	2.5~12
Flattop Fin	2.1~10mm/5~20FPI	0.1~0.2	2.5~12
Offset Fin1	4.5~8mm/6~16FPI	0.15~0.5	1~5
Offset Fin2	4~8mm/6~13mm	0.12~0.2	5~18

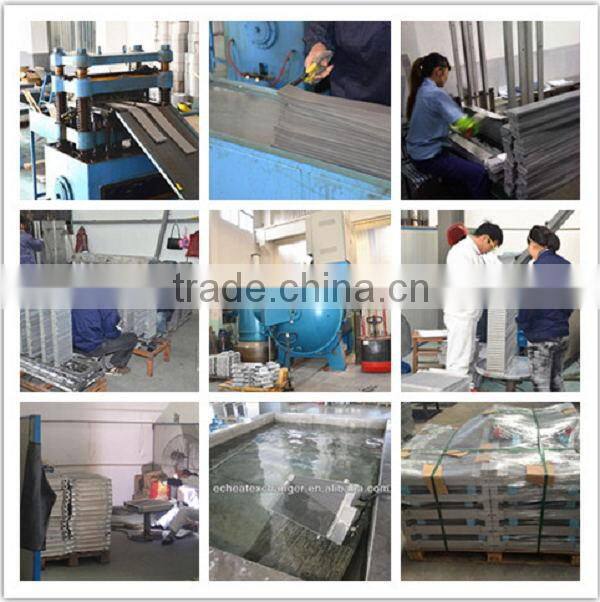

Processing ,Equipments and Packing

Process flows: Blanking -> Fin Punching - > Cleaning - > Core Assembly - >Vacuum Brazing

->Part Machining -> Welding -> Pressure Test -> Drying ->Overall Inspection -> Painting -> Packaging



Parts Details for 12V24V D.C. Fan Contained Concrete Mixer Hydraulic Oil Cooler





Company Profile

Wuxi E&CHeat-exchanger Manufacturing Co.,Ltd. is a professional manufacture of aluminum bar-plate heat exchangers.E&C Heat Exchanger was established by a group of highly skilled experts enjoying ten years of experience in designing and manufacturing of heat exchangers.

Our aluminu plate-fin heat exchngers are widely used in air compresssor,construction machiney(also farm and foestry machinery),hydraulic oil systems,vehicles,locomotives,petro/diesel engines,wind power generator,etc. The mainly products category is as follow:

For air compessor :oil cooler, after cooler, combined oil cooler/after cooler and oil-air heat exchanger for compressor

For construction machinenry, diesel: engine oil cooler, charge air cooler, air cooling-oil heat exchanger.

We are sincerely ready to offer serive to you,and appreciate you to give us a chance to cooperate.



International Market

E&C coolers are well exported to more than 30 countries,they are sold well in Italy, Germany, the United States,Brazil, Australia, Russia,Turkey, Iran, India etc.And some of our customers are leading manufacturers in their field.
