half round steel gutter machine/ gutter forming machine

FOB Price

USD $28,000 - $35,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port tianjin newport
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Other, gutter
Production Capacity	8-10m/min	Place of Origin	Hebei, China
Brand Name	HC	Model Number	HC175
Power(W)	3+3KW	Voltage	380V
Dimension(LWH)	8600X1150X1510mm	Weight	2.6T
Certification	ISO	Warranty	1year
After-sales Service Provided	Overseas service center available

Product Description

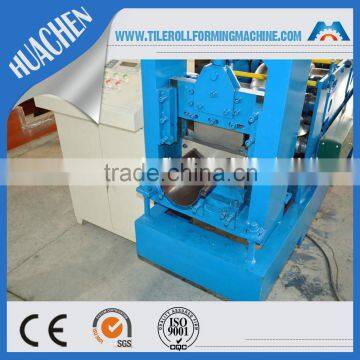

Half Round Steel Gutter Machine/ Gutter Forming Machine

About Huachen

	Huachen is FACTORY which manufacture machine and also do export.
	We have exported over 70 countries, and familiar with your require.
	Suitable to GI, PPGI, aluminum and Zinc coil.
	Free 1 year gurantee, and life long service.

Intruduction:

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

Application:

The gutter is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.

working flow:

This is The Whole Line of gutter machine

Manual Uncoiler—Gutter Machine—Computer Control System—Hydraulic Control System—Form Cutter

parameter

The Main Parameter For gutter machine

No.	main parameter of Gutter Machine
1	Suitable to process	Color steel plate
2	Width of the plate	285mm
3	Rollers	18rows
4	Dimensions	8.61.151.51m
5	Power	4+4kw
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ70mm
9	Weight	About 2.6T
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

machine and profile

Check If Machine Profile Suitable to You.

more profiles:

Did Not Find What You Want? We Have More Here!

Helpful Device

The Following Parts Are FREE!

Certification

We have CE certification and ISO certification.
