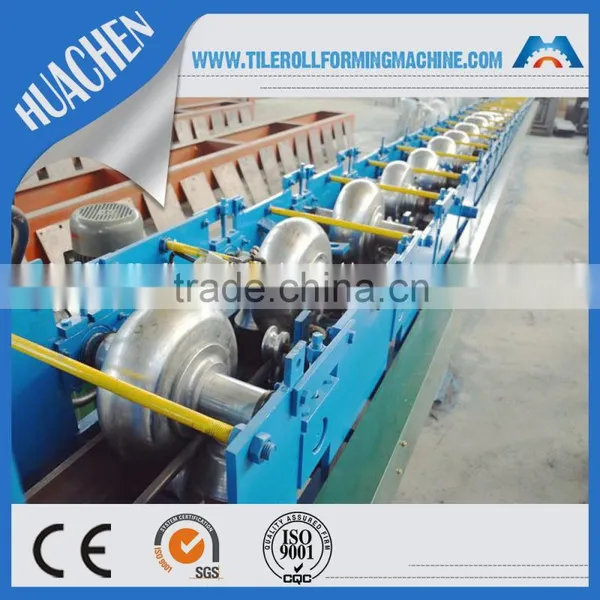

Cold Roll Forming Half Round Gutter Machine
- 30 Set / Sets per Month
- tianjin newport
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNC Machine Manufacturers For Steel Rain Gutter Machine
-
Metal Deck Gutter Cold Roll Forming Machinery
-
Metal Sheet Rain Gutter Roll Forming Machine
-
Australic Metal Roofing Gutter Roll Forming Machine
-
China CNC Roll Forming Machine For Half Round Water Gutter
-
Cold Roll Forming Sheet Downpipe/Gutter Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, gutter | |
| Production Capacity | 8-10m/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC175 | |
| Power(W) | 3+3KW | Voltage | 380V | |
| Dimension(L*W*H) | 8600X1150X1510mm | Weight | 2.6T | |
| Certification | ISO | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Cold Roll Forming Half Round Gutter Machine
| | Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
The gutter is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.

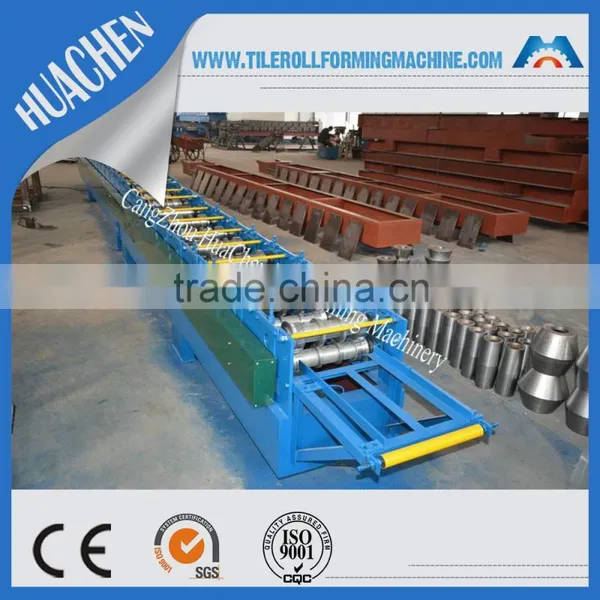

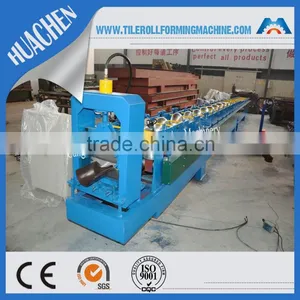

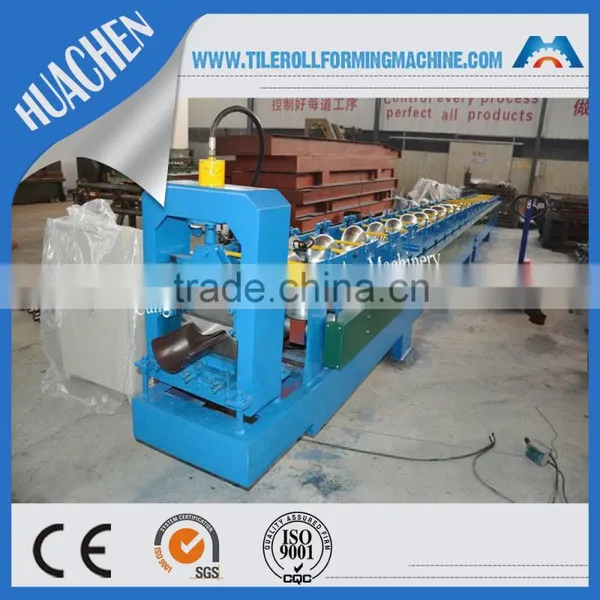

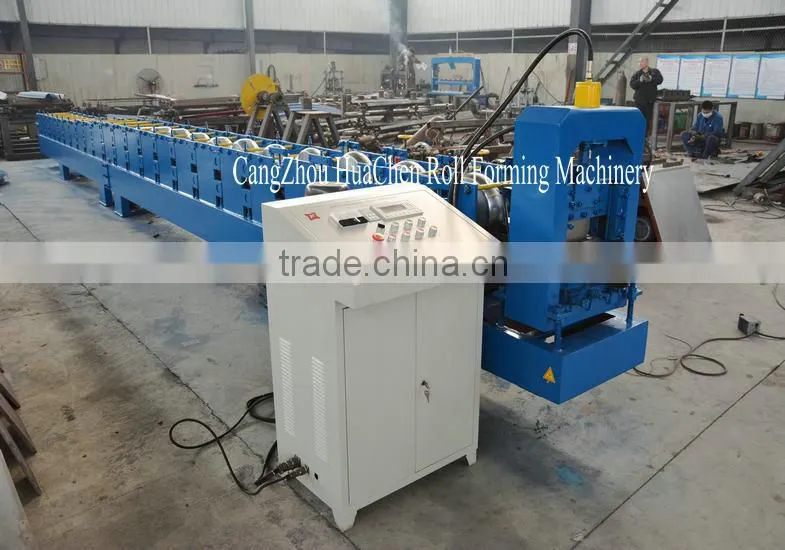

This is The Whole Line of gutter machine

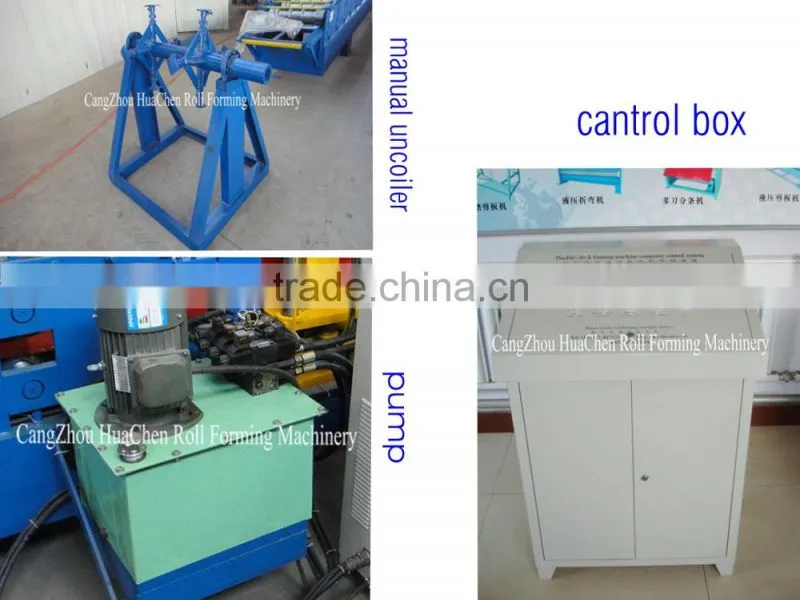

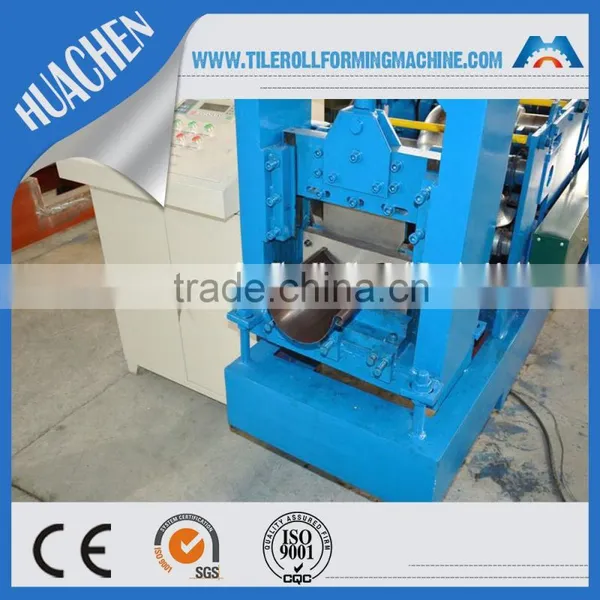

Manual Uncoiler—Gutter Machine—Computer Control System—Hydraulic Control System—Form Cutter
The Main Parameter For gutter machine
No. | main parameter of Gutter Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 285mm |
3 | Rollers | 18rows |
4 | Dimensions | 8.6*1.15*1.51m |
5 | Power | 4+4kw |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 8-10m/min |
8 | Diameter of the roller | Φ70mm |
9 | Weight | About 2.6T |
10 | Voltage | 380V 50Hz 3phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |

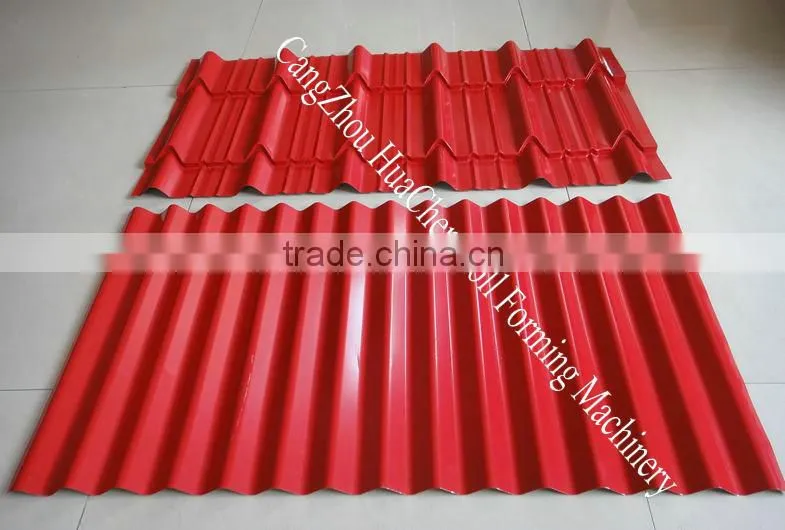

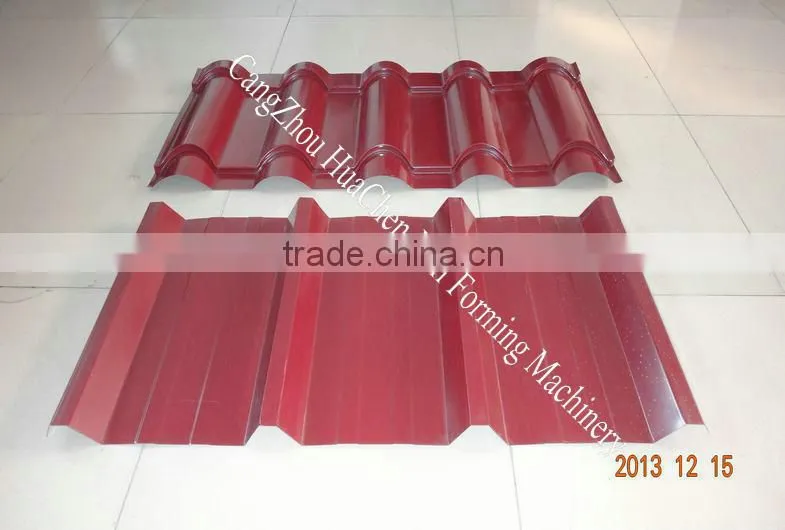

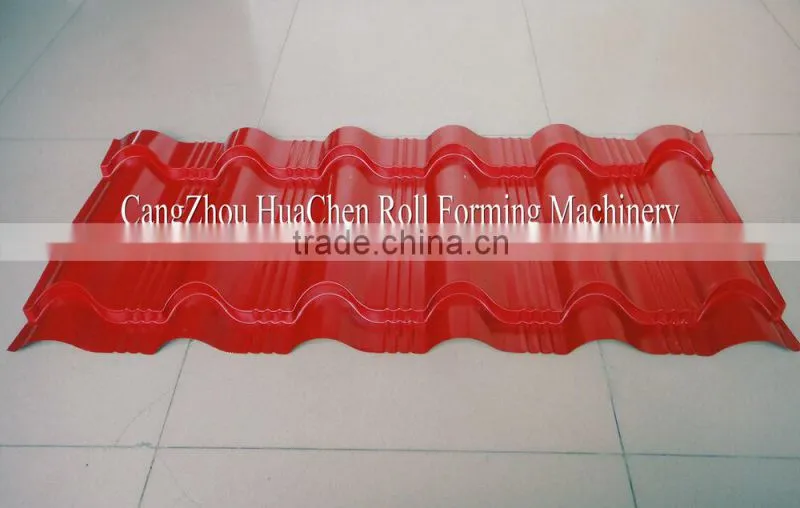

Check If Machine Profile Suitable to You.
Did Not Find What You Want? We Have More Here!
The Following Parts Are FREE!
We have CE certification and ISO certification.
