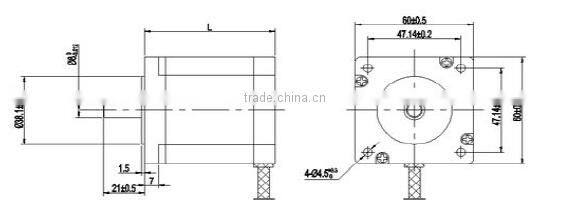

Nema 24 60HSD Hybrid Stepper Motor

Step Angle Accuracy

±5%(full speed no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃(rated current,
 2 phase on)

Ambient Temperature

-20~+50 ℃

Insulation Resistance

100MΩ min, 500VDC

Dielectric Strength

500VDC/1min

Shaft Radial Clearance

0.02mm max, 450g load

Shaft Axial Clearance

0.08mm max, 450g load

Max Radial force

75N(20mm from flange)

Max Axial force

15N

Rotation

CCW

Insulation Grade

B(130°)

Item No

Length
(mm)

Step Angle
(°)

Resistance
(Ω)

Current
(A)

Voltage
(V)

Holding
Torque
(N.cm)

Lead Wires
(pins)

Rotor
Inertia
(g.cm2)

Weight
(KG)

60HSD

60HS44DF045

44

1.8°

0.45

4.2

1.89

106

4

280

0.62

60HS44DF073

44

1.8°

0.73

2.8

2.044

106

4

280

0.62

60HS56DE2D

56

1.8°

2.1

2

4.2

120

8

400

0.8

60HS66DS201B

66

1.8°

2.1

2.8

4

210

6

570

1.02

60HS66DF207PJ

66

1.8°

2.7

2.8

3.36

180

4

570

1.02

60HS66DF1

66

1.8°

1

3.5

3.5

210

4

570

1.02

60HS76DF1

76

1.8°

1

3

3

210

4

720

1.18

60HS78DF304

78

1.8°

3.4

2

6.8

300

4

750

1.2

60HS78DE076

78

1.8°

0.76

3.5

2.7

208

8

750

1.2

60HS80DF075

80

1.8°

0.75

4

3

200

4

800

1.3

60HS88DE103

88

1.8°

1.3

3

3.9

215

8

930

1.48

60HS88DF065

88

1.8°

0.65

4

2.6

300

4

930

1.48

60HS88DS206

88

1.8°

2.6

2

5.2

210

6

930

1.48

60HS88DS075

88

1.8°

0.75

3.5

2.625

210

6

930

1.48

60HS100DE1

100

1.8°

1

3.5

3.5

320

8

1200

1.65

60HS100DE06

100

1.8°

0.6

5

3

352

8

1200

1.65

60HS100DF03

100

1.8°

0.3

7

2.1

440

4

1200

1.65

60HS100DF07

100

1.8°

0.7

4

2.8

400

4

1200

1.65

60HS100DF102

100

1.8°

1.2

3.5

4.2

440

4

1200

1.65

60HS100DS104

100

1.8°

1.4

3

4.2

350

6

1200

1.65

60HS100DS204

100

1.8°

2.4

2.1

5.04

280

6

1200

1.65
