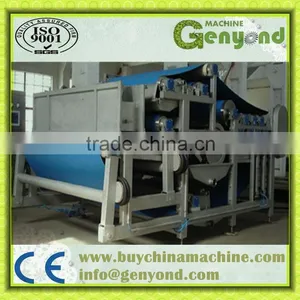

Filter Belt Presser

WOODEN BOXES

Specifications

1 Juicer machine for apple,pear,carrot,etc.
2 High juicing rate 78%.
3 Sweet taste.
4 Large capacity3-120tons/h.
5 ISO

Belt Juicer, Belt type Juicing Machine, Juicing equipment



The machine is a high-efficiency juicing device elaborately researched and developed by our company after introducing and absorbing the most advanced belt type filter press from Germany Flottweg Company. It is a key device that relates to the juicing rate in the production of fruit and vegetable juices. It is widely used for juicing berries, pome fruits and various vegetables.



The equipment adopts multistage folded roller pressurization and multistage pneumatic roller pressurization with large juicing force and high juicing rate. The equipment has such features as energy saving, high automatic degree, automatic material feeding and discharging, continuous operation, good adaptability, sufficient pressure filtration, low water containing rate in filter cake, convenient operation and maintenance etc.



Therefore, it is a device with high juicing efficiency. The equipment increases juicing rate of fruits by 20~35%, and the juicing rate is up to 75~80% (according to materials), which reduces production cost greatly, and improves enterprise's economic benefits.

The equipment can also be used for pressure filtration and dehydration of some powders and slurry materials in food, chemical industry, environmental protection and light industry etc. Industries.

Model	GY-800	GY-1200	GY-1750	GY-2500LR	GY-2500HK
Output(T/H)	1~3	4~7	8~12	18~22	18~22
Belt Length (MM)	92000	14100	14500	14500	17200
Belt width(MM)	800	1200	1750	2500	2500
Press rate  (Apple Juice)	≥75%	≥75%	≥75%	≥75%	≥78%
Quantity(Roots)	20	20	20	20	24
Pressure(MP)	≤0.4	≤0.4	≤0.4~0.5	≤0.4~0.5	≤0.4~0.5
Main power(KW)	2.2	2.2	3	4	5.5
Power(KW)	0.25	0.37	0.37	0.55	0.55
