BOHAI Pedinghaus Q35Y-25(90ton ) Hydraulic Ironworker,hydraulic Punching and Shearing Machine

Mchine feature

Q35Y Series hydraulic combined punching&shearing machine can cut and punch

all kinds of materials such as plate, square bar, angle, round bar, channel and so on.

KRRASS Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.

This profitable machine will serve any grueling fabrication shop for decades to come.

This machine is typically in stock for quick deliveries.

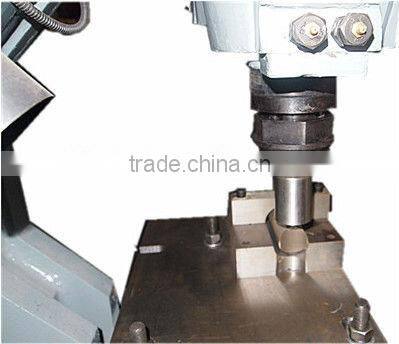

1. Punching

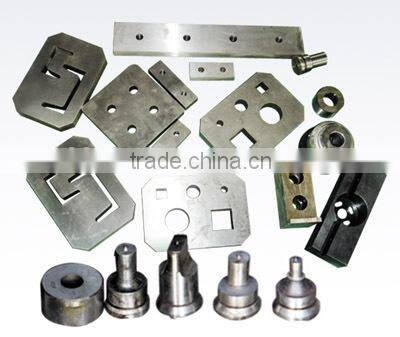

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel

punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table

with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

2. Shearing

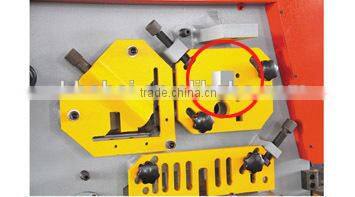

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,

channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.

This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal

material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

3 . Notching

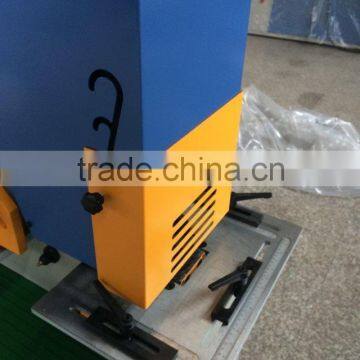

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate,

angle iron and much more. The notching station also has an oversized table with material stops.

This section of the machine can also be outfitted with the optional vee notcher.

4. Bending

 Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenance

The product that is produced by this machine

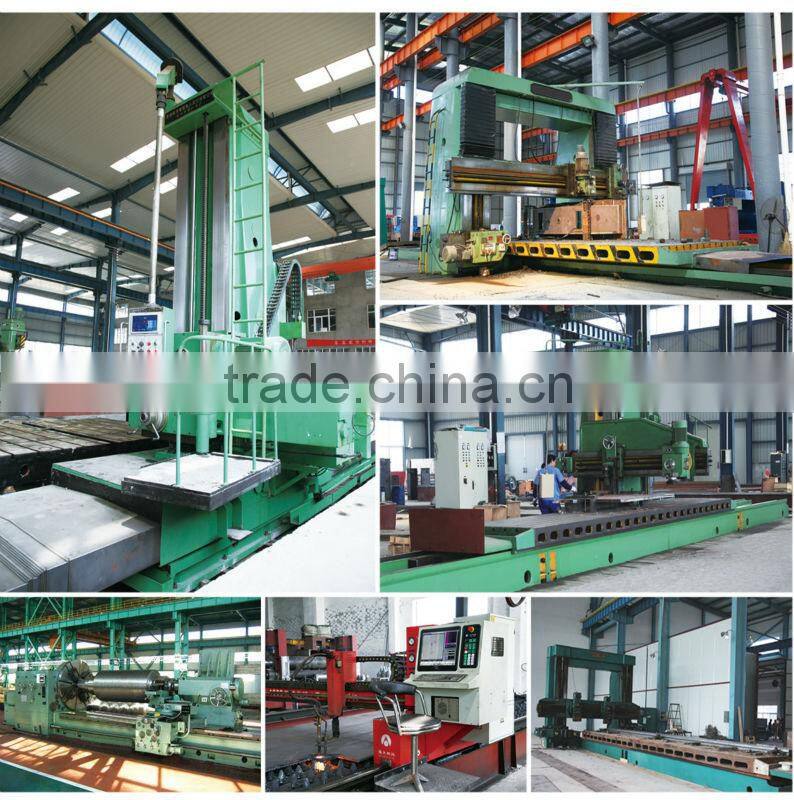

Shanghai Bohai Machinery Manufacturing Co., Ltd, which was founded in 1989,is designated as a National High-tech enterprise. It is one of the best and odest CNC plate processing manufacturer in China

The headquarter of the Company is sited in Qianqiao Economic zone,Fengxian District,Shanghai City.

Now, the Company is staffed with 300 employees, among them there are 6 senior engineers,33 technicians,21 Doctor of Philosophy.  The people at Bohai have a long solid history of producing the most advanced machine tools in the business. They bring years of experience to the operation, and can make sure that the machine leaving the factory lives up to the highest expectations.

As the parent company,The company  has 2 subsidiary companies under its control,namly,Shanghai Wanjiao Machine Tools Manufacture Co., Ltd,Maanshan Huayu Machine Tools Co.,Ltd.

Please enjoy our website and feel free to look over our great machines. We hope you will join the satisfied customers who own BOHAI machine, because we know you are our future.
