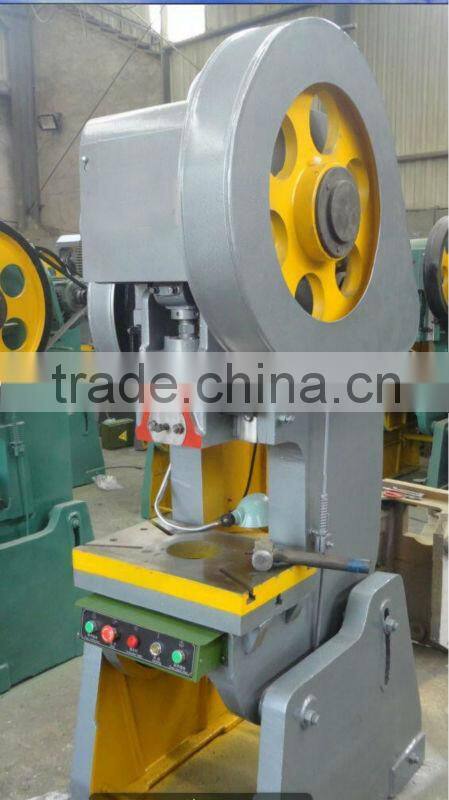

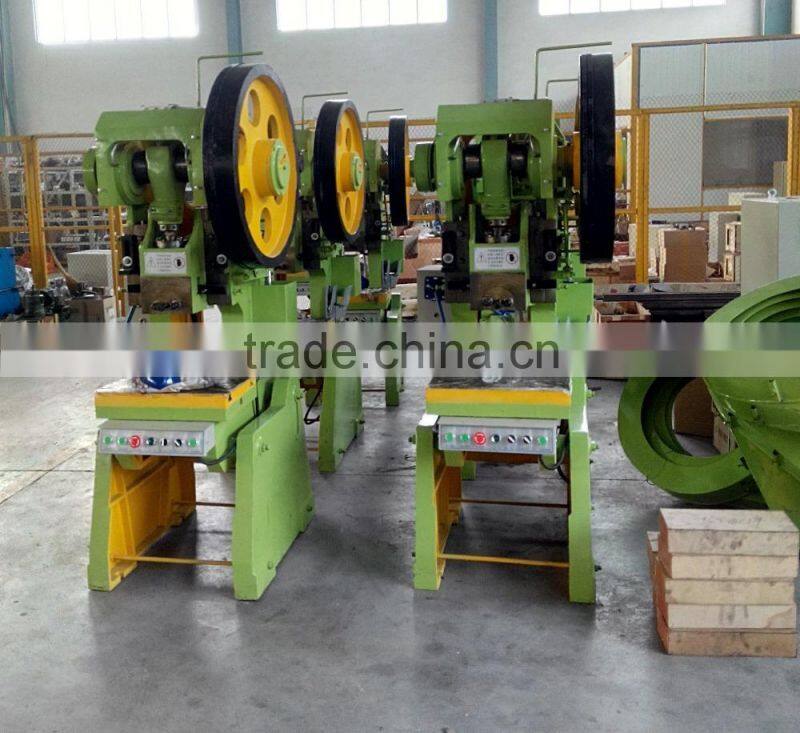

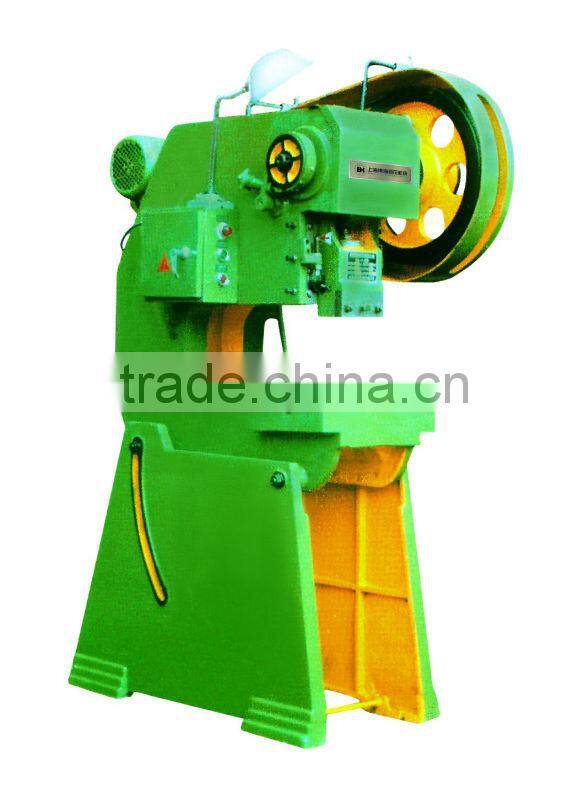

Help CenterJ23 63 Ton C-type Power Press/ Punching Machines/mechanical Press Equipment
Related Products
-
J23 80 Ton C-type Power Press/ Punching Machines/mechanical Press EquipmentUS$ 1,000 - 100,000MOQ: 1 Unit -
J23 100 Ton C-type Power Press/ Punching Machines/mechanical Press EquipmentUS$ 1,000 - 100,000MOQ: 1 Unit
-
J23 125 Ton C-type Power Press/ Punching Machines/mechanical Press EquipmentUS$ 1,000 - 100,000MOQ: 1 Unit
-
J23 160 Ton C-type Power Press/ Punching Machines/mechanical Press EquipmentUS$ 1,000 - 100,000MOQ: 1 Unit
-
J23 200 Ton C-type Power Press/ Punching Machines/mechanical Press EquipmentUS$ 1,000 - 100,000MOQ: 1 Unit
Quality Power press for sale
Machine Fearture
- The press adopts the transverse crankshaft structure. The outlay gear is convenience for maintenance.
- The press adopts the low inertia combined dry friction clutch and brake, which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity.
- The slide is a whole cast form construction which adopts mechanical overload protector .
- The shut height adopts manual adjustment, which has scale display.
- The press adopts four face triangle gib, which has high guiding precision and steady precision.
- The control part adopts PLC, which is efficient to guarantee the reliability of control part.
- The cam controller consists of approximity switches.
- It adopts dual valve.
- It is equipped with photoelectric guards.
- Besides, the press has two-hand operating button and foot pedal switch, which can realize Continuous, Single and Inch mode.
Technical Data
| Model and specification | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | J23-100 | J23-125 | J23-200 | J23-250 |
| Nominal pressure (kn) | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 2000 | 2500 |
| Slipper stoke (mm) | 50 | 70 | 80 | 80 | 100 | 100 | 140 | 145 | 145 |
| Slipper stoke times(time/min) | 110 | 65 | 50 | 50 | 50 | 40 | 38 | 38 | 38 |
| Max closing height (mm) | 170 | 200 | 220 | 250 | 270 | 300 | 370 | 420 | 410 |
| Height adjustment(mm ) | 30 | 30 | 45 | 5 | 60 | 80 | 100 | 100 | 100 |
| Distance between slipper centre and machine(mm) | 160 | 200 | 200 | 250 | 260 | 310 | 395 | 400 | 400 |
| Worktable dimension(mm) | 320*460 | 350*520 | 390*630 | 420*650 | 470*750 | 570*860 | 740*1150 | 780*1250 | 780*1300 |
| Size of die handle bore (mm) | 40*60 | 40*60 | 50*70 | 50*70 | 60*80 | 60*80 | 60*85 | 60*85 | 60*85 |
| Worktable thickness(mm) | 45 | 50 | 70 | 70 | 80 | 80 | 110 | 120 | 130 |
| Slipper underside bore (mm) | 120*180 | 170*220 | 210*250 | 240*280 | 260*300 | 360*400 | 360*430 | 410*500 | 410*500 |
| Motor(kw) | 1.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 15 |
Shanghai Bohai Machinery Manufacturing Co., Ltd, which was founded in 1989,is designated as a National High-tech enterprise. It is one of the best and odest CNC plate processing manufacturer in China
The headquarter of the Company is sited in Qianqiao Economic zone,Fengxian District,Shanghai City.
Now, the Company is staffed with 300 employees, among them there are 6 senior engineers,33 technicians,21 Doctor of Philosophy.
The people at Bohai have a long solid history of producing the most advanced machine tools in the business. They bring years of experience to the operation, and can make sure that the machine leaving the factory lives up to the highest expectations.
As the parent company,The company has 2 subsidiary companies under its control,namly,Shanghai Wanjiao Machine Tools Manufacture Co., Ltd,Maanshan Huayu Machine Tools Co.,Ltd.
Please enjoy our website and feel free to look over our great machines. We hope you will join the satisfied customers who own BOHAI machine, because we know you are our future.
1.)- we can send our engineer to your site and do the training for your men. you will only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2.)-You can send your men to our factory. we will teach them how to operate the machine with no training charges
3. )-Actually there is another cheap and easy way to choose. every machine leave our factory with one book of operation manual. You can first read through the manaul,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
Apart from above training course,we also provide 2 year warranty for all the easily broken part of the Machine
