Specifications
We can produce welding cable 4mm according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ alsoWELDING CABLE
- Welding cable Description

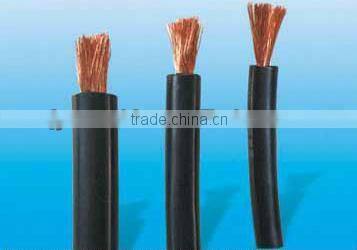

Construction: Class 5 flexible plain copper conductor, rubber insulated cable (or PVC insulated and PVC sheathed cable, PVC insulated is for some special countries only)
Chinese Type | Description | Core qty | Conductors range |
YH | Natural rubber sheath for welding cable | 1 | 10~240mm2 |
YHF | Horoprene rubber or other syntheitic sheath welding cable | 1 | 10~240mm2 |
- Welding cable Applications
Secondary voltage resistance welding leads in heavy duty or mining applications
Power supply applications not exceeding 600 volt AC
- Welding cable Manufacturing standards
IEC 60245 and Chinese National Standards GB5013
We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
- Welding cable Main technical data
4.1 Welding cables to IEC 60245
Nominal section area(mm2) | No./diameter of stranding(mm) | Nominal sheath thickness (mm) | Overall diameter(mm) | Max. conductor resistance at 20°C(Ω/km) | ||
Min. | Max. | Without tinned | With tinned | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 1.19 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 0.780 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 0.552 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 0.390 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 0.276 |
95 | 2297/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 0.204 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 0.164 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 0.132 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 0.108 |
240 | 1908/0.40 | 3.8 | 25.0 | 35.0 | 0.0801 | 0.0817 |
welding cable 4mm
4.2 Welding cables to ASTM standard
Size (AWG) | Nominal stranding | Nominal overall diameter | Approx. net weight (LBS/1000ft) | Max. conductor resistance at 20°C(Ω/km) | ||
AWG | mm | inch | mm | |||
6 | 259/30 | 259/0.254 | 0.430 | 10.92 | 152 | 1.33 |
4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 215 | 0.84 |
2 | 646/30 | 646/0.254 | 0.540 | 13.72 | 296 | 0.53 |
1 | 836/30 | 836/0.254 | 0.580 | 14.73 | 360 | 0.42 |
1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 424 | 0.33 |
2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 513 | 0.26 |
3/0 | 1672/30 | 1672/0.254 | 0.720 | 18.29 | 644 | 0.21 |
4/0 | 2066/30 | 2066/0.254 | 0.780 | 19.81 | 824 | 0.17 |
