G84F-10P/R Manual 3-Way Diaphragm Valve Welding End
- 10000 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T Credit Card
-
SS304 SS316 Sanitary Diaphragm Valve With Manual Operation
-
G681F-10P/R Pneumatic Tri-clamped Diaphragm Valve With Plastic Actuator
-
G681F-10P/R Stainless Steel Pneumatic Diaphragm Valve Clamped Connection
-
Hot Sale Clamped Pneumatic Diaphragm Valve With CE Certificate
-
G681F-10P Tri-clamped Pneumatic Diaphragm Valve
-
Stainles Steel Diaphragm Valve With Clamp End, SS Actuator
Product Details
| Standard or Nonstandard: | Standard | Structure: | Diaphragm | Pressure: | Other, Medium Pressure, 0-1.6Mpa, 0-16Bar |
| Power: | Pneumatic | Material: | Stainless Steel | Temperature of Media: | Normal Temperature |
| Media: | Water | Port Size: | 1/2" | Place of Origin: | Zhejiang, China |
| Model Number: | G84F-10P/R | Brand Name: | KST |
Product Description
Specifications
1. Electro and Mechanical Polishing2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS

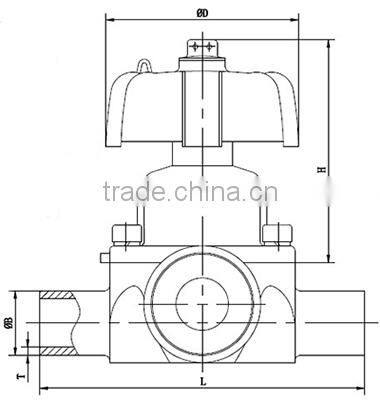

G84F-10P/R Manual 3-Way Diaphragm Valve Welding End
Features
1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting

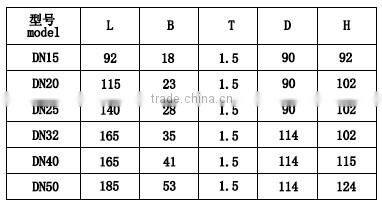

Specifications
Inside and outside of body can be high-temperature sterilization
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp: -20ºC+150ºC
4). Ambient Temp: -20ºC+60ºC
5). Diaphragm Material: EPDM, FPM, PTFE
6). Body Material: Stainless Steel
7). Body of Actuator: PA
8). Control Pressure: 3-8 bar
9). Connection: Tri-clamped, Welding, Flanged, Threaded
10). Driving Way: Manual, With closed pneumatiied device
11). Max Pressure: 10 bar (diaphragm is EPDM or EPM) , 6 bar (diaphragm is PTFE)
12). Max Temperature: 150ºC (according to the conditions of use)
Products Show
