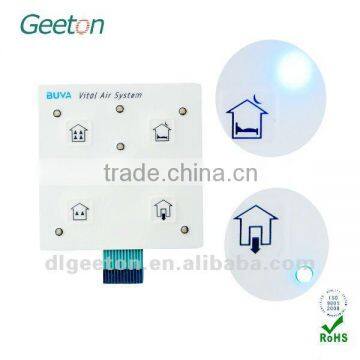

Tactile LED Membrane Switch Keypad With Metal Dome
LED Membrane Switch Performance
LED Membrane Switch Performance | |
Electrical Performance | |
Circuit Grade | 35V(DC),100mA,1 W |
Loop Resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance | >100MΩ 250V(DC) |
Dielectric Resistance | 250VRms(50 - 60Hz/1 min) |
Contact Chatter Time | ≤5ms |
Service Life | flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force | flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke | flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature | -20°C - +80°C |
Storage Temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |
LED Membrane Switch Type
Other Type Of The LED Membrane Switch
The Application of The LED Membrane Switch
Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch, nameplate and automobile dashboard. We have established more than 12 years’ stable business partnership with TOSHIBA, SANYO and other international well-known enterprises.
Workshops Pictures
Packaging
Customers Visit
Certifications
Customers
Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
