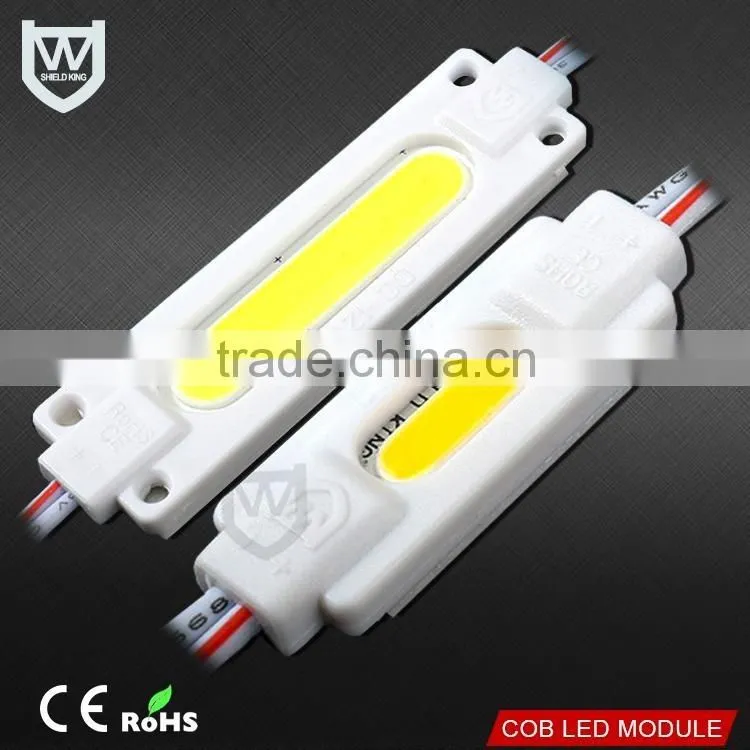

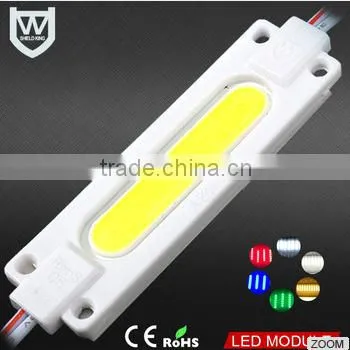

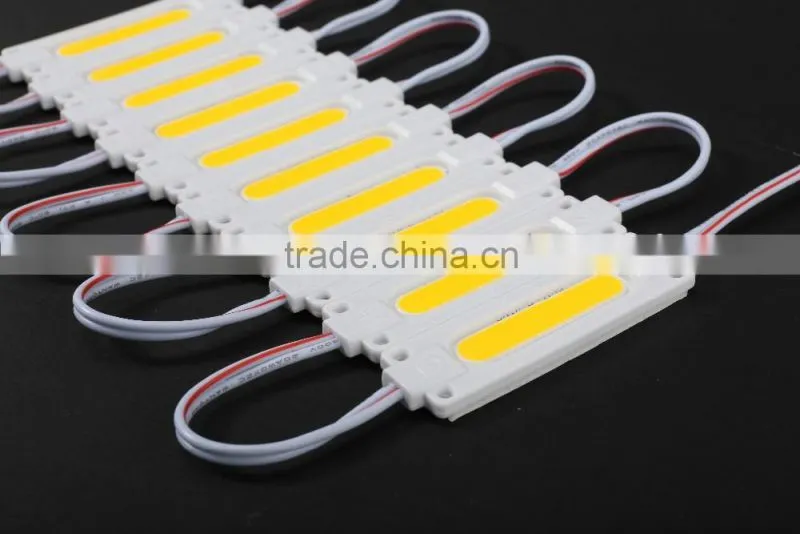

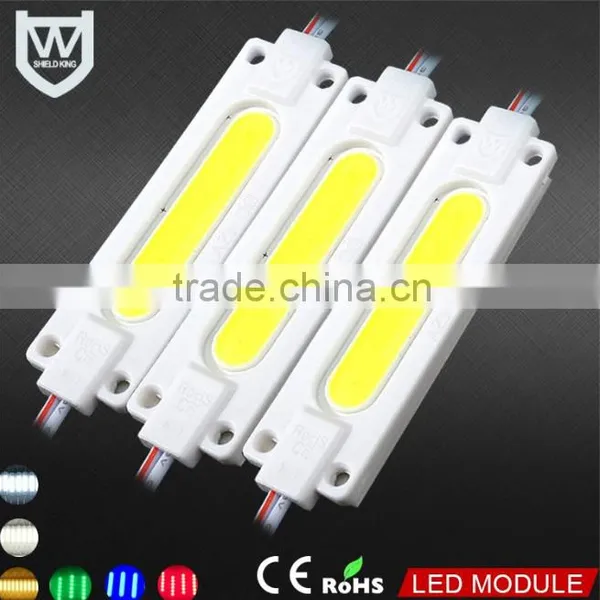

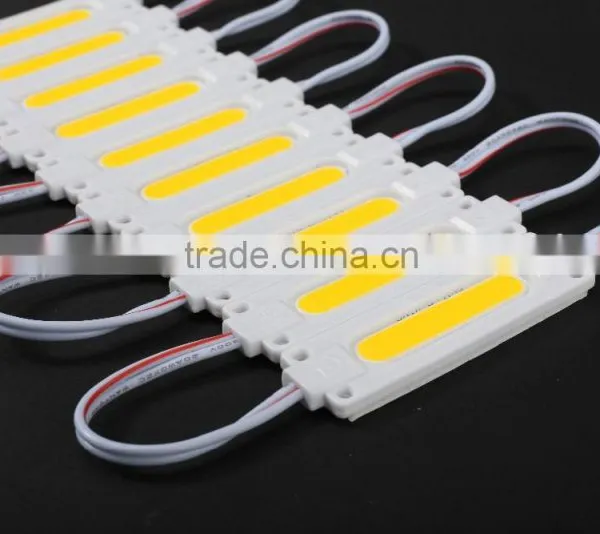

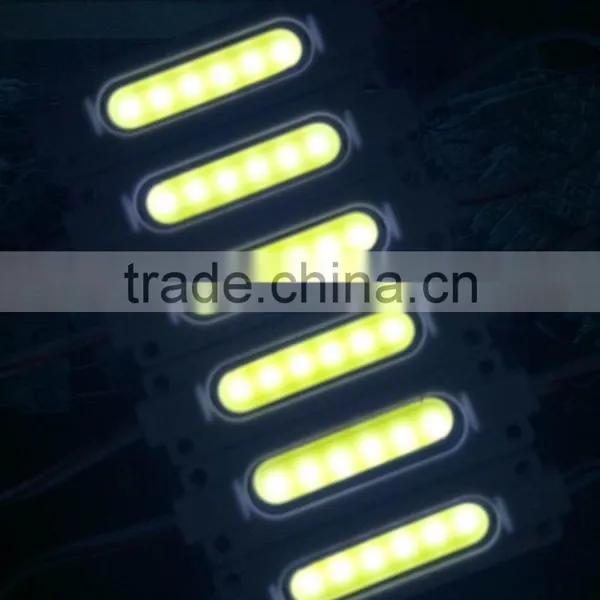

CE ROHS certificate 2W aluminium cob led modules with emitting warm white color high power 12V injection Led Module
- 100000 Piece / Pieces per Month
- guangzhou/shenzhen/zhongshan
- Credit Card
- CE ROHS listed advertising light source IP65 waterproof COB 2W led module injection module
- Made in China led super bright outdoor lighting cob led module with LED waterproof IP67 led injection module
- china manufacture 2w high power cob power led module with waterproof IP65 led injection module for advertising lighting
- TOP quality led module 12v with 160degree 180lm cob power led module for advertising channel letter
- Hot selling 3 year warranty cob power led module 12v with high power led module
- High quality DC12V cob led module with ce rohs power cob module for led sign
Product Details
Model Number: | DW-M010-2W | Chip Material: | InGaN | Emitting Color: | Warm White |
Luminous Intensity: | High | Luminous Flux(lm): | 180lm | Optical Attenuation(%): | 0.2 |
Power: | Other, 2W | Power Dissipation: | 0.72 | Color Rendering Index(Ra): | 85 |
Color Temperature: | 8000K/6000K\4000K\3000K\R\G\B | Operating Temperature(℃): | -40, 60 | Storage Temperature(℃): | -40, 60 |
Place of Origin: | Guangdong, China | Brand Name: | Shield King | Certification: | CE |
Product Description
Why choose us?
CE ROHS certificate 2W aluminium cob led modules with emitting warm white color high power 12V injection Led Module.
PRODUCT PARAMETERS | |||
Item | DW-M010 | Angle | 160° |
power | 2W | IP Rating | IP65 waterproof |
LED | FLIP CHIP COB | Operating Temperatures | -40°—60° |
Voltage | DC12V | Series Qty | 20pcs per bunch the largest series 60pcs(prohibit surpass in series qty) |
Material | PCB+ABS | Adapter power | DC12V |
Size | L70*W20*H3mm | Relative Humidity |
|
CCT | 8000K/6000K4000K3000KRGB | Continuous power | >90% |
Lumen | 180LM | Warranty | 3years |
Current | 150MA | Packaging details | 10pcs per bunch 10bunch per bag 20bag per carton(2000pcs per carton) |
Working life | ≥50000hrs | Carton size | 44*35*27cm |
Power factor | >0.9 | Weight |
|
Led injection module features:
- High quality import chip,Top-encapsulation ,high brightness,small lighting failure,good lighting effec
- Tai Wan Qi Mei sizing material anti flaming,anti-static,strong weather ability,impact resistant
- better heat dissipation,low-power,long-life,maintenance-free
- With double-sided adhesive and screws two installation methods, the customers install and use easier
Applicable scope:
- Led lighting box ,led luminous letter,led sign
- Led outdoor advertising sign,bar,KTV
- Led lighting engineering,led landscape engineering
- Hotel,bulding external wall landscape
LED module ABS injection ,cob led module.Aluminum plate heat dissipation ,waterproof.
LED injection module for AD lighting boxes in subway, airport, railway station etc.
As a modernized enterprise, we, Zhongshan Shield King Lighting Technology Co., Ltd., are engaged in R&D, production, sales and service of LED product.
Our LED product has such features as energy conservation, environment protection, low carbon, healthy and durability.
Possessing advanced R&D team with high technology, we have comprehensive ability on LED lighting product appearance design, LED power driven design, optical design, heat dissipation design and water-proof design.
Our high-quality management team and strict production requirements ensure our product to be equipped with “the quality of Shield and the light of King”. We have thoughtful pre-sales, sales and after-sales service. Our noble customers’ satisfaction is our pride.
Our key products include LED indoor and outdoor lighting series. We have such products as LED fluorescent tube,LED module,LED light source,LED advertising lighting, LED ceiling spotlight, LED down lamp, LED track spotlight, LED bean lamp, LED panel lamp, LED colorful tube, LED digital tube, LED flood light, LED wall washer, LED underwater lamp, LED light source, LED road lamp, etc.
Our products are widely applied to such environments and fields as home furnishing, hotel & hostel, supermarket, store, parking lot, office building, KTV, garden, plaza, road, etc.
Packaging
•Normally neutural packed with carton.The carton size are according to the item size.
• And the details of package are according the demand of client.
Shipping
• Samples and small order shipped by Express (DHL/FEDEX/TNT/UPS/EMS/BY ),Big order generally by sea shipping .
• Lead time:Generally within 30 days after confirming the order .
- We are a professional designer and manufacturer of LED Module and Advertising light source.
- We have many patented products of led module in china.we innovate the products usually.
- We can desing and produce the led module as your requirement.
- Our products can be OEM, and the package can be your design.
- Our advantages and quick delivery,Competitive price,high quality and long term service to our customers.
- We provide best service for guests!
1. Can i get a sampe order for testing?
A: Yes, we welcome sample order to test and check quality. with freight collect or prepaid by
Paypal or Western Union or T/T.
2. How can i test SHILED KING led module?
A: Connect the wire of modules to your own power supply whose output voltage should be DC12V or
DC24V.If you do not have such a power supply, please ask us to provide with samples. pls kindly note
the +/- marks on the wire and connect to the +/- pole of power supply correctly.
3. What is the max quantity of one string?
A: Normally we suggest max 20pcs per string the largest series 60pcs(prohibit surpass in series qty)
if you really need more quantity of a string, please contact us to check the possibility.
4.Do you also sell power supplies or connectors for the led modules ?
A: Yes. But please make sure the power supply should allow some capacity to protect itself and
modules with 20%~30% capacity unused, i.e. Power Input is 20%~30% more than the exact
power consumption of modules connected to it.
5.Can I install the high power LED modules into outdoor advertising
boards or use in opening conditions directly?
A: Our modules’ IP rating is IP65, are suitable to be used in outdoor advertising lighting boxes,
sign board channel letters or carbines, but we suggest better not to be exposed to opening
conditions influence working life.
6.How to deal with the defect products?
A: Firstly, our defective rate is less than 0.3%, so there is no big problem to the led modules.
Secondly, we usually offer 3 years warranty for our led modules.
Thirdly, during the guarantee period, we will resend new lights with the new order for small quantity,
if there are many lights don't work, we can repair them, then resend them to you.
7. Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand, we will discuss and propose helpful
suggestion for you to find the best solution for you.
